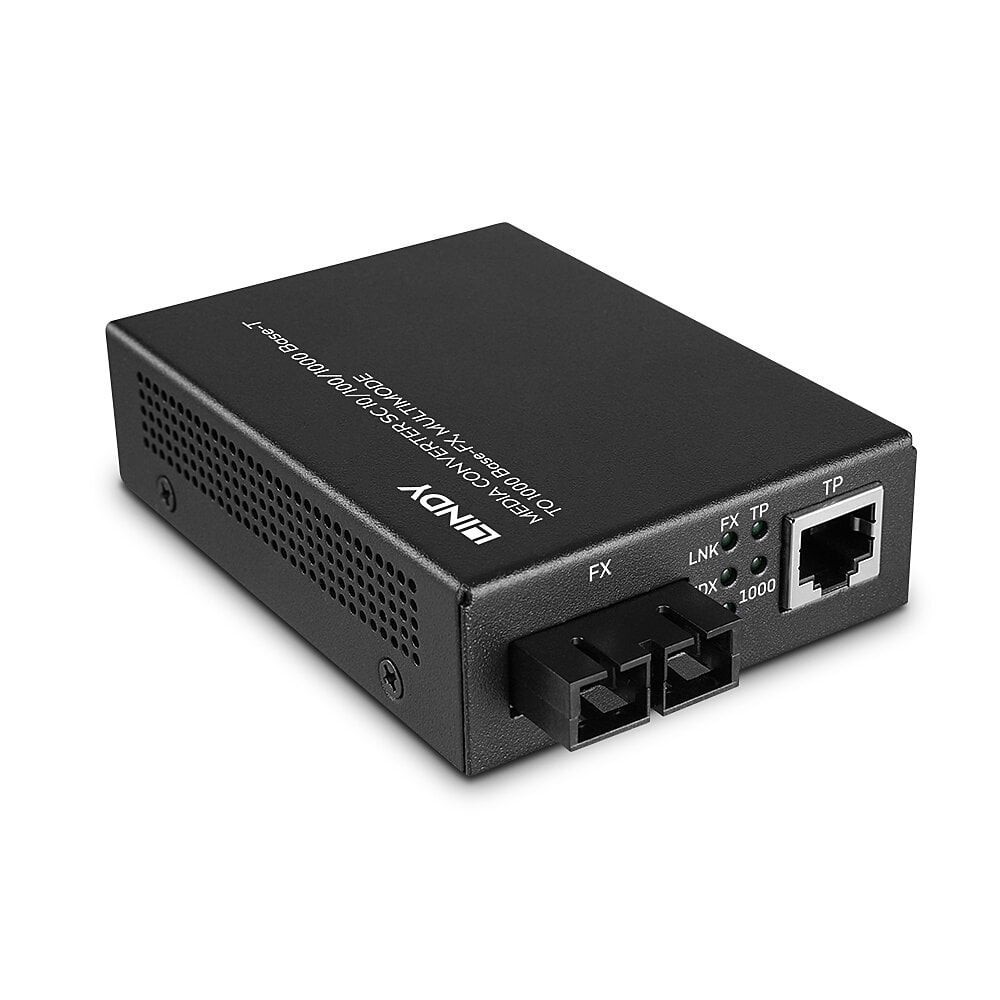

Lindy 25119 network media converter 850 nm Multi-mode Black
- 10/100/1000 Base-T copper to 1000 Base-FX fiber
- Support SC Multimode fiber optic 50/125 or 62.5/125 cables
- Extend fiber distance up to 550m
- Support Full/Half duplex mode and auto-negotiation
- 2 Year Warranty
Secure Payments
Secure payment methods
Shipping Policy
Free Delivery On Standard UK Mainland Orders **Over £500
Returns Policy
Returns and exchanges
This Lindy Media Converter extends the connection between two network devices at distances up to 550m using multimode fibre optic cables. The installation is plug-and-play and the user only has to connect to the RJ45 port with a Cat.5e or above Ethernet cable and the fibre port with a SC Multimode 50/125 or 62.5/125 Duplex fibre optic cable. No configuration needed, easily integrated into any existing Ethernet network and supports Full/Half duplex mode and auto-negotiation on both ports.
The Media Converter can operate with 100 or 1000Mbps network speed, it also provides status LEDs to indicate data link, speed, Full/Half Duplex and link failure. Supports IEEE 802.3 standard and Jumbo frames up to 9K.
Lindy 25119. Networking standards: IEEE 802.3, Ethernet LAN data rates: 10,100,1000 Mbit/s, Duplex system: Full, Half. Maximum transfer distance: 550 m, Wavelength: 850 nm, Fiber mode structure: Multi-mode. Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Output voltage: 5 V, Output current: 1 A
The Media Converter can operate with 100 or 1000Mbps network speed, it also provides status LEDs to indicate data link, speed, Full/Half Duplex and link failure. Supports IEEE 802.3 standard and Jumbo frames up to 9K.
Lindy 25119. Networking standards: IEEE 802.3, Ethernet LAN data rates: 10,100,1000 Mbit/s, Duplex system: Full, Half. Maximum transfer distance: 550 m, Wavelength: 850 nm, Fiber mode structure: Multi-mode. Product colour: Black. Fiber optic connector: SC, Connectivity technology: Wired. Output voltage: 5 V, Output current: 1 A
| Network | |
| Networking standards | IEEE 802.3 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Duplex system | Full, Half |
| Performance | |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Features | |
| Internal | No |
| Product colour | Black |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SC |
| Power | |
| Output voltage | 5 V |
| Output current | 1 A |
| Weight & dimensions | |
| Width | 95 mm |
| Depth | 70 mm |
| Height | 25 mm |
| Weight | 540 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Package width | 165 mm |
| Package depth | 155 mm |
| Package height | 45 mm |
| Package weight | 650 g |
25119
5 Items
Data sheet
- Product colour
- Black
- Connectivity technology
- Wired
- Internal
- No
- Maximum transfer distance
- 550 m
- Certification
- CE, UKCA, FCC, RoHS, REACH & California Proposition 65
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -10 - 70 °C
- Width
- 95 mm
- Depth
- 70 mm
- Height
- 25 mm
- Weight
- 540 g
- Package width
- 165 mm
- Package depth
- 155 mm
- Package weight
- 650 g
- LED indicators
- Yes
- Networking standards
- IEEE 802.3
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
- Duplex system
- Full, Half
- Wavelength
- 850 nm
- Fiber mode structure
- Multi-mode
- Fiber cable diameters supported (core/cladding)
- 50/125,62.5/125 µm
- Fiber optic connector
- SC
- Ethernet LAN (RJ-45) ports
- 1
- Fiber ports quantity
- 2
- Output voltage
- 5 V
- Output current
- 1 A
- Operating relative humidity (H-H)
- 5 - 95%
- Package height
- 45 mm
Specific References
- EAN13
- 4002888251198
- MPN
- 25119
