Hisense’s BM66AE Digital Signage Displays (43”- 86”) are perfectly fit for public transport and retail locations. Their slim body design will make them blend into their surrounding and make your on-screen messaging stand out. Their vivid and vibrant colours immerse viewers and will effectively provide them with the information they are looking for.

All this with the flexibility and reliability that are required for round-the-clock broadcasting locations due to light sensors, intelligent temperature control and dual-core SOC technology for PC-less offline or cloud based content management. You can rest assure your content will be delivered 24/7 in an elegant, vibrant and reliable way.

Round-the-clock operation
Designed with dual-core System on Chip (SoC) technology the Hisense BM66AE series can be used as reliable digital signage displays for both offline and cloud based content 24 hours a day, 7 days a week. You are completely free to choose your content management system to help display your advertising. And if necessary the internal memory will allow you to upload media into the display for instant broadcast without the need for external hard- or software.

Smart CMS
Hisense’s CMS platform allows you to edit and arrange playlists, making content management easy and user-friendly. It supports all rich media content in synchronous playback over a multitude of commercial displays. Besides this status monitoring and real-time control will allow you to quickly and centrally respond to any emergency.

178° Wide viewing angle
The extra wide 178° viewing angle is a perfect fit for shoppers, employees or visitors that will view displays from diverse angles while passing by.

Landscape & portrait
Both landscape and portrait orientations are possible, providing you with endless creative and functional possibilities to fulfil your commercial or informative goals.

500 nits
With 500 nits maximum brightness the display panels can deliver amazingly vivid imagery anywhere during daytime and nighttime conditions

4K Ultra HD
The 4K Ultra HD picture quality* ensures perfect colour and rich details in all possible broadcasting surroundings, ranging from shops, to restaurants and office buildings.

Automatic time zone
When connected to the Internet each display will automatically synchronise to its local timezone. Making sure scheduled media broadcast is always in sync.

Customisation
Hisense’s displays support a variety of on-screen customisations such as custom startup logo, startup animation, wallpaper and many more. Creating a uniform look & feel for all people working with or viewing the displays

Auto brightness
Thanks to our advanced auto brightness sensor the BM66AE displays will intelligently adjust their brightness to their surroundings. Making sure energy usage is optimised at all times.

Slim design
With 12mm bezels the BM66AE displays are the slimmest and most elegant in our range. Making sure your broadcasting content is always the focus of attention.

Dust & humidity protection
The main board and power board of each Hisense BM66AE display is coated so it will effectively resist the erosion by dust and water vapour in public space conditions.

Temperature protection
The BM66AE displays are resistant to high temperatures and have an automatic temperature control mechanism. They will automatically adjust their backlight brightness when their temperature reaches 75°C to cool the display. At 100°C they will automatically switch to standby mode.

Fail over
Stable broadcast is ensured with fail over functionality. When the primary source of content goes down the system will automatically switch to predetermined alternative input. All input sources (HDMI,DVI,VGA,DP) also support auto detect functionality.

Detachable logo
For customisation needs the Hisense logo has been made detachable. If for instance you want to arrange multiple BM66AE displays to form a video wall the logos can be freely removed.

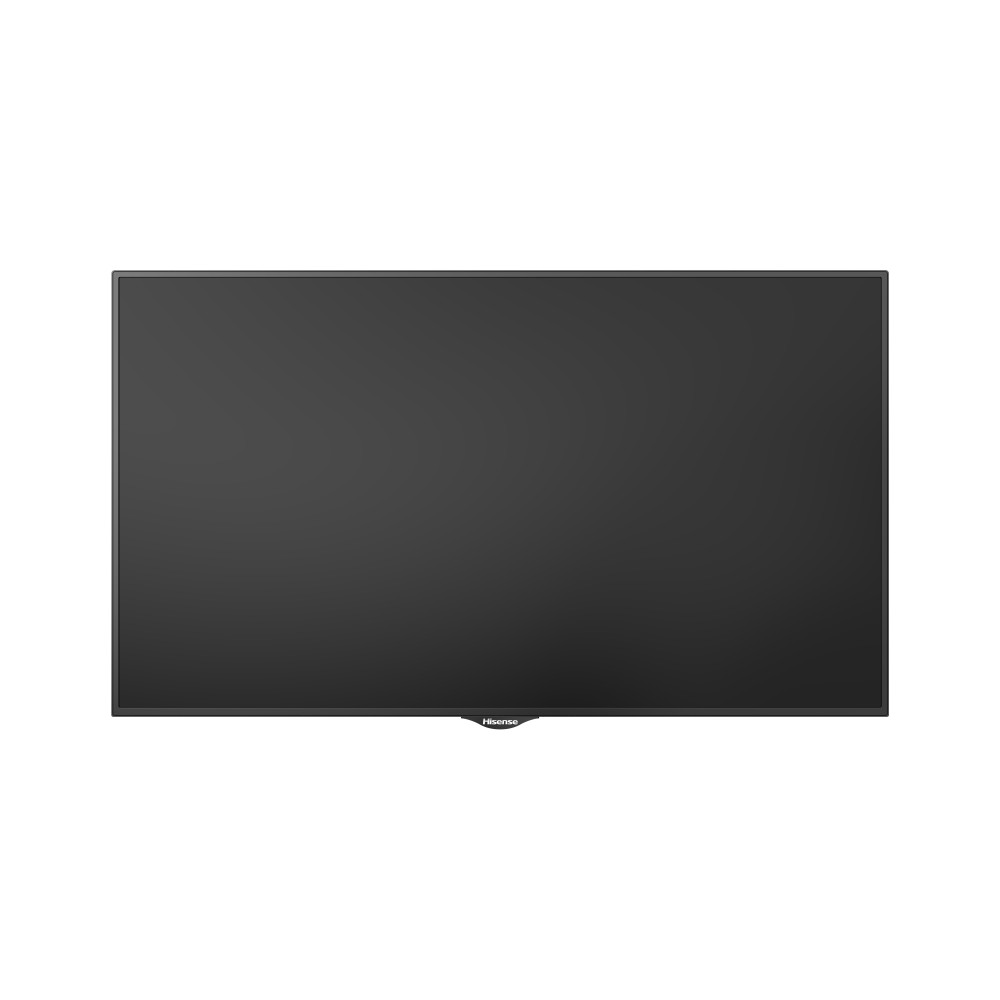

Hisense 86BM66AE. Product design: Digital signage flat panel. Display diagonal: 2.18 m (86"), Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 9.0. Product colour: Black

Display
Display diagonal	2.18 m (86")
Panel type	ELED
Display resolution	3840 x 2160 pixels
Display brightness	500 cd/m²
HD type	4K Ultra HD
Response time	8 ms
Contrast ratio (typical)	1100:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display number of colours	1.07 billion colours
Haze rate	28%
Colour gamut	72%
Ports & interfaces
HDMI ports quantity	2
HDMI input ports quantity	2
DVI port	Yes
DVI-D ports quantity	2
VGA (D-Sub) input ports	1
DisplayPorts quantity	1
USB port	Yes
USB ports quantity	1
Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Wi-Fi	Yes
RS-232 interface	Yes
OPS module slot	Yes
Audio
Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	30 W
Design
Product design	Digital signage flat panel
Product colour	Black
Placement supported	Indoor
Orientation	Horizontal/Vertical
VESA mounting	Yes
Panel mounting interface	600 x 400 mm
Bezel width (bottom)	1.48 cm
Bezel width (side)	1.48 cm
Bezel width (top)	1.48 cm
Performance
Purpose	Transportation
Number of OSD languages	2
Operating hours (hours/days)	24/7
Mean time between failures (MTBF)	50000 h
Power
Power consumption (typical)	250 W
Power consumption (standby)	0.5 W
Energy efficiency class (SDR)	G
Energy consumption (SDR) per 1000 hours	264 kWh
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G
Computer system
Internal memory	2 GB
Internal storage capacity	16 GB
Operating system installed	Android 9.0
Weight & dimensions
Width	1927.2 mm
Depth	72.1 mm
Height	1098 mm
Packaging content
Remote control included	Yes
Cables included	AC
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80%
Storage temperature (T-T)	-20 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Certificates
Certification	CB, CE, ERP, RCM, ICASA
