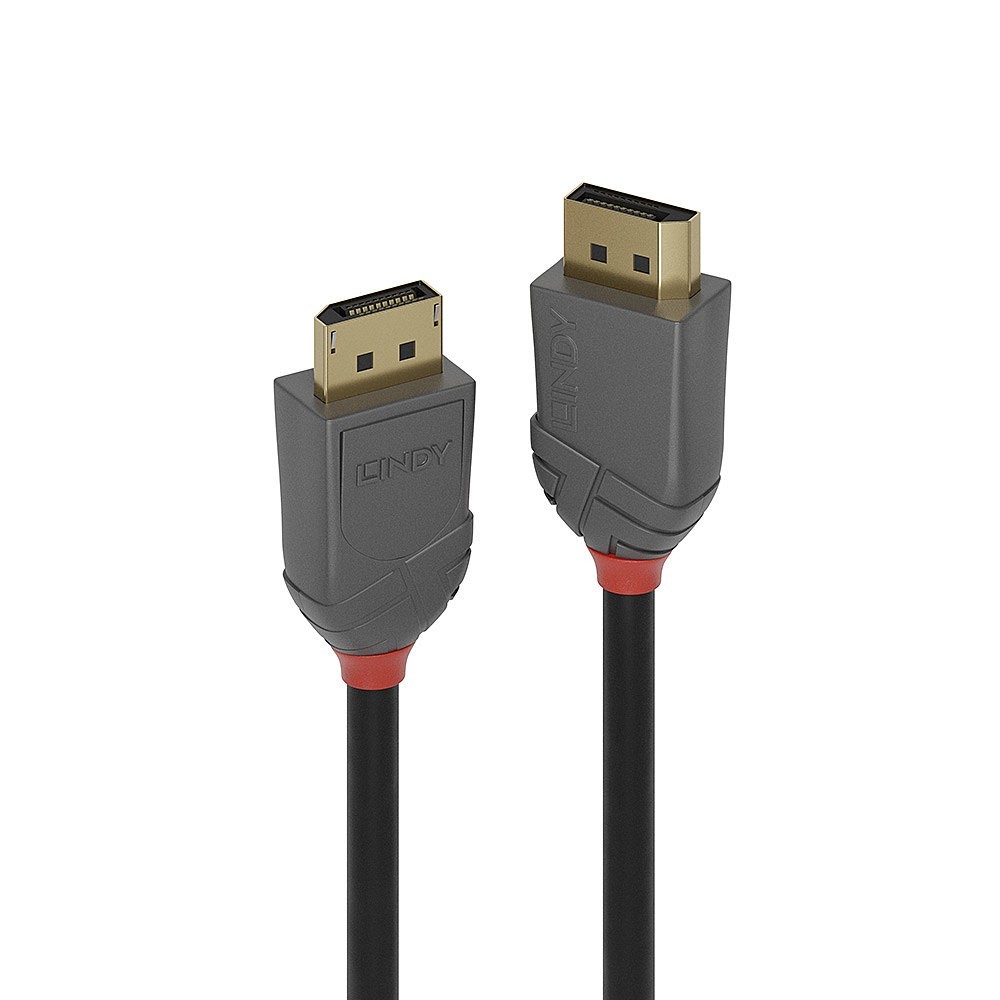

Lindy 1m DisplayPort 1.4 Cable, Anthra Line

  • Professional choice DisplayPort 1.4 cable for commercial and high performance AV and IT installations
  • Supports UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit including 4K 4096x2160@144Hz 4:2:2 10bit
  • Robust ABS housing 24K gold plated connectors and contacts
  • Triple shielded cable, corrosion resistant tinned copper 28AWG conductors
  • DisplayPort 1.4, 32.4Gbps
  • 10 Year Warranty
Lindy
36481
232 Items
Hurry up! only 232 items left in stock!
£9.75
In Stock

  Secure Payments

Secure payment methods

  Shipping Policy

Free Delivery On Standard UK Mainland Orders **Over £500

  Returns Policy

Returns and exchanges

From the Lines cable connectivity concept developed by Lindy, Anthra Line DisplayPort cables are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line DisplayPort cables are premium connections that feature triple shielded with 28AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit, including 4K 4096x2160@144Hz 4:2:2 10bit and HDCP are supported. DisplayPort 1.4 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.

Anthra Line DisplayPort cables are available in lengths from 0.5m to 5m.

Lindy 1m DisplayPort 1.4 Cable, Anthra Line. Cable length: 1 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Certification: RoHS, REACH, UL. Cable diameter: 7.3 mm, Connector 1 dimensions (WxDxH): 21 x 38.9 x 13.6 mm, Connector 2 dimensions (WxDxH): 21 x 38.9 x 13.6 mm. Package type: Polybag. Quantity per pack: 1 pc(s)
Features
Cable length1 m
Connector 1DisplayPort
Connector 2DisplayPort
Connector 1 genderMale
Connector 2 genderMale
Connector 1 form factorStraight
Connector 2 form factorStraight
Connector contacts platingGold
DisplayPort version1.4
Maximum resolution7680 x 4320 pixels
Supported graphics resolutions4096 x 2160, 7680 x 4320
Maximum refresh rate60 Hz
Product colourBlack, Grey
Cable materialTinned copper
Cable shieldingCopper
Jacket materialPolyvinyl chloride (PVC)
Connector housing materialAcrylonitrile butadiene styrene (ABS)
AWG wire size28
Data transfer rate32.4 Gbit/s
Connector materialGold
Plug and PlayYes
Cable typeRound cable
Nominal attenuation100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB
Operational conditions
Operating temperature (T-T)-20 - 80 °C
Storage temperature (T-T)-25 - 85 °C
Certificates
CertificationRoHS, REACH, UL
Weight & dimensions
Cable diameter7.3 mm
Connector 1 dimensions (WxDxH)21 x 38.9 x 13.6 mm
Connector 2 dimensions (WxDxH)21 x 38.9 x 13.6 mm
Bend radius (min)5.84 cm
Packaging data
Package typePolybag
Packaging content
Quantity per pack1 pc(s)
Logistics data
Harmonized System (HS) code84733080
36481
232 Items

Data sheet

Connector 1
DisplayPort
Connector 2
DisplayPort
Connector 1 gender
Male
Connector 2 gender
Male
Product colour
Black, Grey
Cable length
1 m
Quantity per pack
1 pc(s)
Connector contacts plating
Gold
Maximum resolution
7680 x 4320 pixels
Data transfer rate
32.4 Gbit/s
Cable shielding
Copper
Jacket material
Polyvinyl chloride (PVC)
Certification
RoHS, REACH, UL
Operating temperature (T-T)
-20 - 80 °C
Storage temperature (T-T)
-25 - 85 °C
Package type
Polybag
Harmonized System (HS) code
84733080
AWG wire size
28
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Plug and Play
Yes
Cable type
Round cable
Connector material
Gold
Cable material
Tinned copper
Cable diameter
7.3 mm
Connector 1 dimensions (WxDxH)
21 x 38.9 x 13.6 mm
Nominal attenuation
100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB
Bend radius (min)
5.84 cm
Connector 2 dimensions (WxDxH)
21 x 38.9 x 13.6 mm
Supported graphics resolutions
4096 x 2160, 7680 x 4320
Maximum refresh rate
60 Hz
DisplayPort version
1.4
Connector housing material
Acrylonitrile butadiene styrene (ABS)
Contact material
Phosphor bronze
Colour sampling
4:2:2

Specific References

EAN13
4002888364812
MPN
36481
