Yealink CM20 AI-Powered Beamforming Ceiling Microphone
- 16-array beamforming microphone
- AI-powered noise reduction
- Radius 4m nominal coverage
Secure Payments
Secure payment methods
Shipping Policy
Free Delivery On Standard UK Mainland Orders **Over £500
Returns Policy
Returns and exchanges

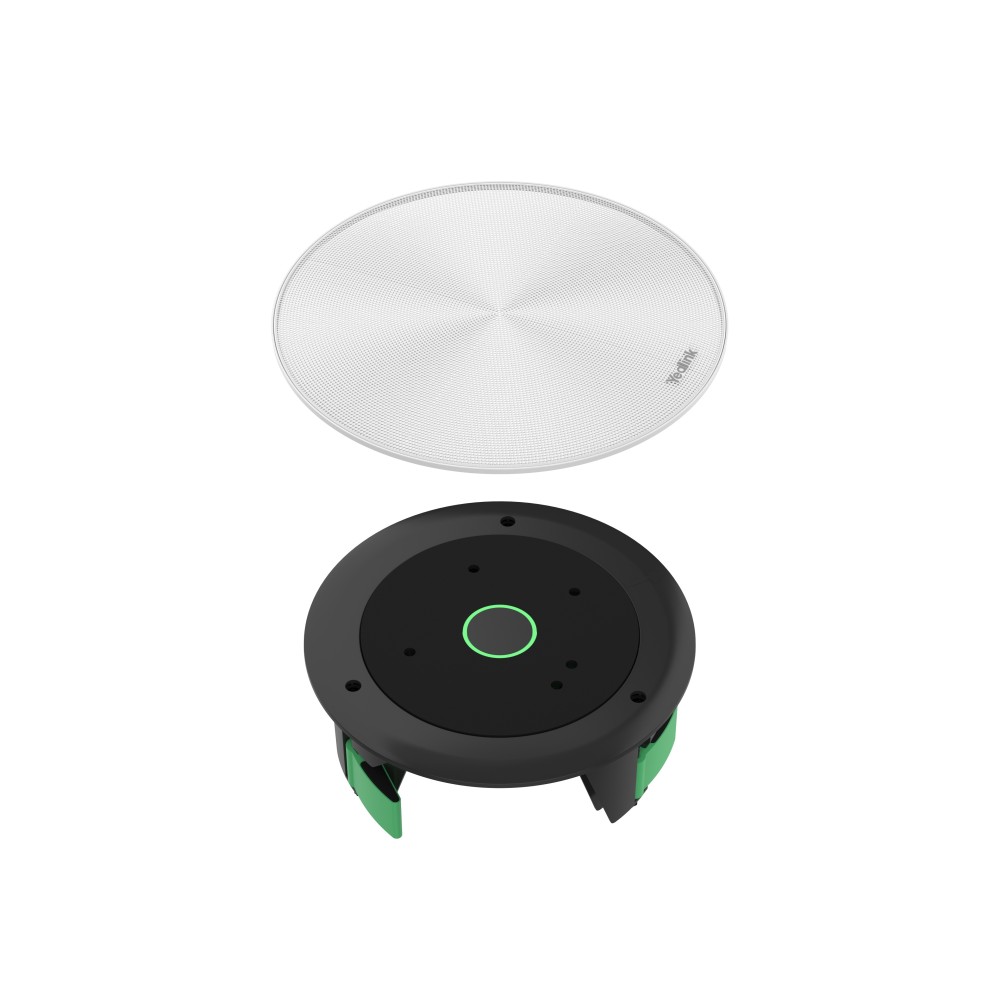

The Yealink CM20 is a premium ceiling microphone, expertly crafted to enhance audio performance in professional conference settings. Boasting an advanced array of 16 omnidirectional microphones, the CM20 captures sound in 360°, ensuring clarity and inclusivity in every discussion. With an integrated DSP, CM20 offers plug-and-play functionality with Yealink MVC systems, removing the need for external audio processing. Designed for medium to large conference rooms, the CM20 combines advanced technology with a sleek, elegant design, making it a perfect blend of functionality and style.
Yealink CM20. Product type: Microphone, Product colour: Grey, Placement supported: Ceiling. Microphone sensitivity: 94 dB, Microphone frequency: 120 - 16000 Hz, Microphone direction type: Omnidirectional. Device interface: RJ-45. Power source type: PoE, Power consumption (typical): 5.7 W, Power consumption (max): 9 W. Width: 223 mm, Depth: 223 mm, Height: 83 mm
| Features | |
| Product type | Microphone |
| Product colour | Grey |
| Placement supported | Ceiling |
| Housing material | Acrylonitrile butadiene styrene (ABS), Polycarbonate |
| Microphone | |
| Microphone sensitivity | 94 dB |
| Microphone frequency | 120 - 16000 Hz |
| Microphone direction type | Omnidirectional |
| Number of microphone arrays | 16 |
| Signal-to-Noise Ratio (SNR) | 86 dB |
| Ports & interfaces | |
| Device interface | RJ-45 |
| Power | |
| Power source type | PoE |
| Power consumption (typical) | 5.7 W |
| Power consumption (max) | 9 W |
| Weight & dimensions | |
| Width | 223 mm |
| Depth | 223 mm |
| Height | 83 mm |
| Weight | 615 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | 0 - 70 °C |
| Packaging data | |
| Package width | 398 mm |
| Package depth | 310 mm |
| Package height | 135 mm |
| Package type | Box |
| Packaging content | |
| Quantity | 1 |
| Mounting kit | Yes |
| Screws included | Yes |
| User guide | Yes |
| Packaging content | CM20 Microphone, White Mesh Cover (Black Optional), Quick Start Guide, Assembly Fixing Bracket, Dust Cover, Length-Adjustable Pole (Optional), Bracing Bridge*1 pair, Suspend Pole Adapter (Optional), Expansion Bolt*6 (φ6 * 30 mm, white, Polyamide), Self-tapping Screw*6 (T4*30mm), Machine Screw*5 (3*6PMOZN3+), Bracing Bredge Screw*20 (M3*6PWMHOZN3) |
CM20
8 Items
Data sheet
- Product colour
- Grey
- Product type
- Microphone
- Housing material
- Acrylonitrile butadiene styrene (ABS), Polycarbonate
- Microphone frequency
- 120 - 16000 Hz
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- 0 - 70 °C
- Width
- 223 mm
- Depth
- 223 mm
- Height
- 83 mm
- Weight
- 615 g
- Package width
- 398 mm
- Package depth
- 310 mm
- Package type
- Box
- Operating relative humidity (H-H)
- 5 - 90%
- Package height
- 135 mm
- Microphone sensitivity
- 94 dB
- Quantity
- 1
- Microphone direction type
- Omnidirectional
- Device interface
- RJ-45
- Power consumption (typical)
- 5.7 W
- User guide
- Yes
- Power source type
- PoE
- Placement supported
- Ceiling
- Power consumption (max)
- 9 W
- Mounting kit
- Yes
- Signal-to-Noise Ratio (SNR)
- 86 dB
- Screws included
- Yes
- Number of microphone arrays
- 16
Specific References
- UPC
- 841885120786
- EAN13
- 0841885120786
- MPN
- 1303095
