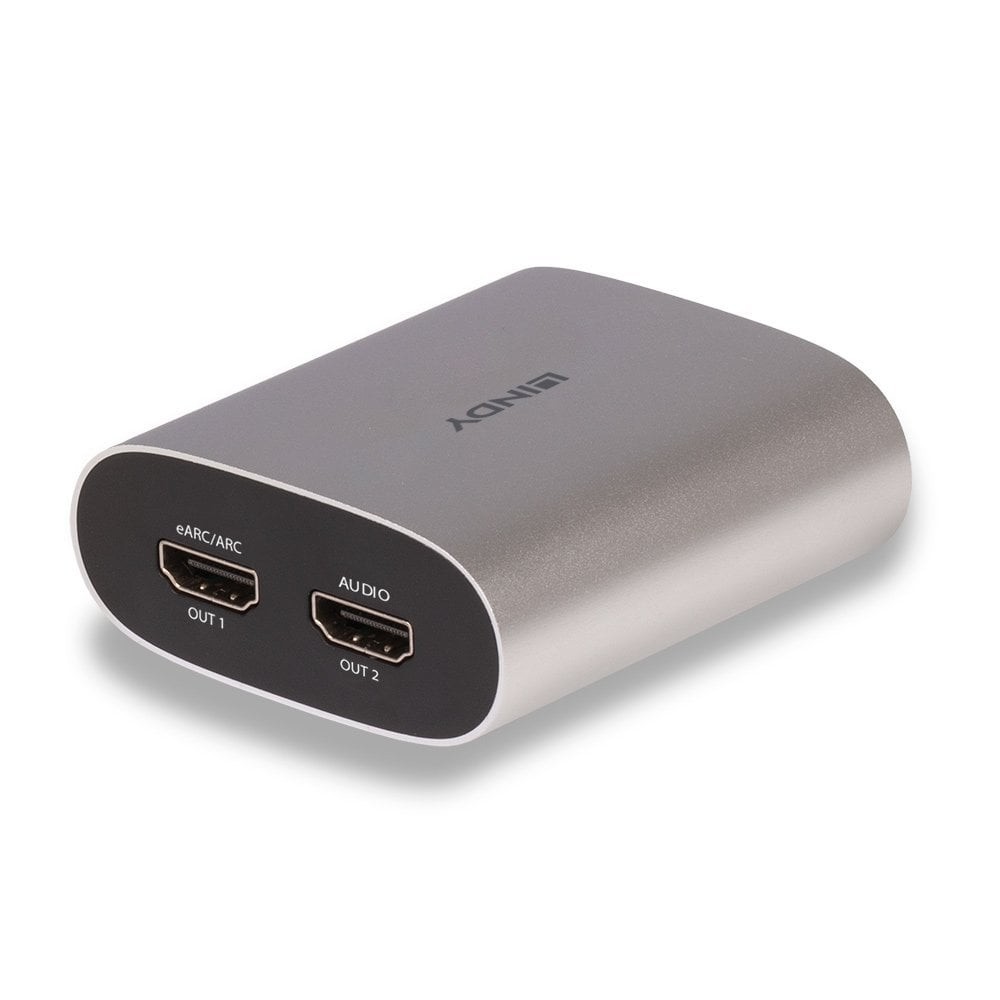

Lindy 4K60 HDMI eARC Extractor
- Extracts stereo or multi-channel audio from an HDMI eARC port
- Supports 4K@60Hz video pass-through, with additional support for HDR10, HDR10+ and Dolby Vison
- CEC and and EDID management.
- Support PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby digital plus, Dolby True-HD, DolbyAtmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X
- 2 Year Warranty
Secure payment methods
Free Delivery On Standard UK Mainland Orders **Over £500
Returns and exchanges
This extractor supports the full 18G HDMI 2.0 bandwidth to display 4K UHD 4096x2160@60Hz resolutions with additional pass-through support for the REC.2020 colour space that covers the wider colour gamut required for HDR (high dynamic range) content, for enhanced contrast and more lifelike colour. Featuring support for HDCP 2.2, this is ideal for use with the latest source devices including set-top boxes, games consoles and media players.
With support for multi-channel audio including 7.1 Channel audio this device will ensure an impressive three-dimensional surround sound performance to compliment films, games and music when connected to the audio device. HDMI High Bit Rate audio pass through also allows high-resolution audio files to playback without compression for a flawless music listening experience.
Lindy 4K60 HDMI eARC Extractor. USB connector type: Micro-USB B. Width: 65 mm, Depth: 70 mm, Height: 27 mm. Cables included: USB Type-A to Micro-USB Type-B, Package width: 65 mm, Package depth: 70 mm. Power cable length: 1 m
Inputs | |
DC-in jack | Yes |
USB 1.1 ports quantity | 1 |
Outputs | |
Number of HDMI outputs | 2 |
Technical details | |
HDCP version | 2.2 |
HDMI version | 2.0b |
Bit rate | 24 bit |
Audio codecs | PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X |
Housing material | Aluminium |
Weight & dimensions | |
Width | 65 mm |
Depth | 70 mm |
Height | 27 mm |
Weight | 83 g |
Data sheet
- Product colour
- Black, Silver
- Maximum resolution
- 4096 x 2160 pixels
- Housing material
- Aluminium
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Width
- 65 mm
- Depth
- 70 mm
- Height
- 27 mm
- Weight
- 83 g
- Package width
- 65 mm
- Package depth
- 70 mm
- Package weight
- 191.6 g
- Package type
- Box
- Manual
- Yes
- Operating relative humidity (H-H)
- 20 - 90%
- Package height
- 27 mm
- Quantity
- 1
- Cables included
- USB Type-A to Micro-USB Type-B
- Storage relative humidity (H-H)
- 20 - 90%
- Chipset
- Sil9437CNUC
- Digital audio optical in
- 0
- Digital audio coaxial in
- 0
- USB connector type
- Micro-USB B
- Audio (L/R) out
- 0
- DC-in jack
- Yes
- HDMI version
- 2.0b
- HDCP
- Yes
- HDCP version
- 2.2
- Number of HDMI outputs
- 2
- HDMI in
- 1
- Supported sample rates
- 192 kHz
- Audio codecs
- PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X
- USB 1.1 ports quantity
- 1
- Bit rate
- 24 bit
- Audio playback formats
- LPCM, PCM
- Power cable length
- 1 m
Specific References
- EAN13
- 4002888383684
- MPN
- 38368
