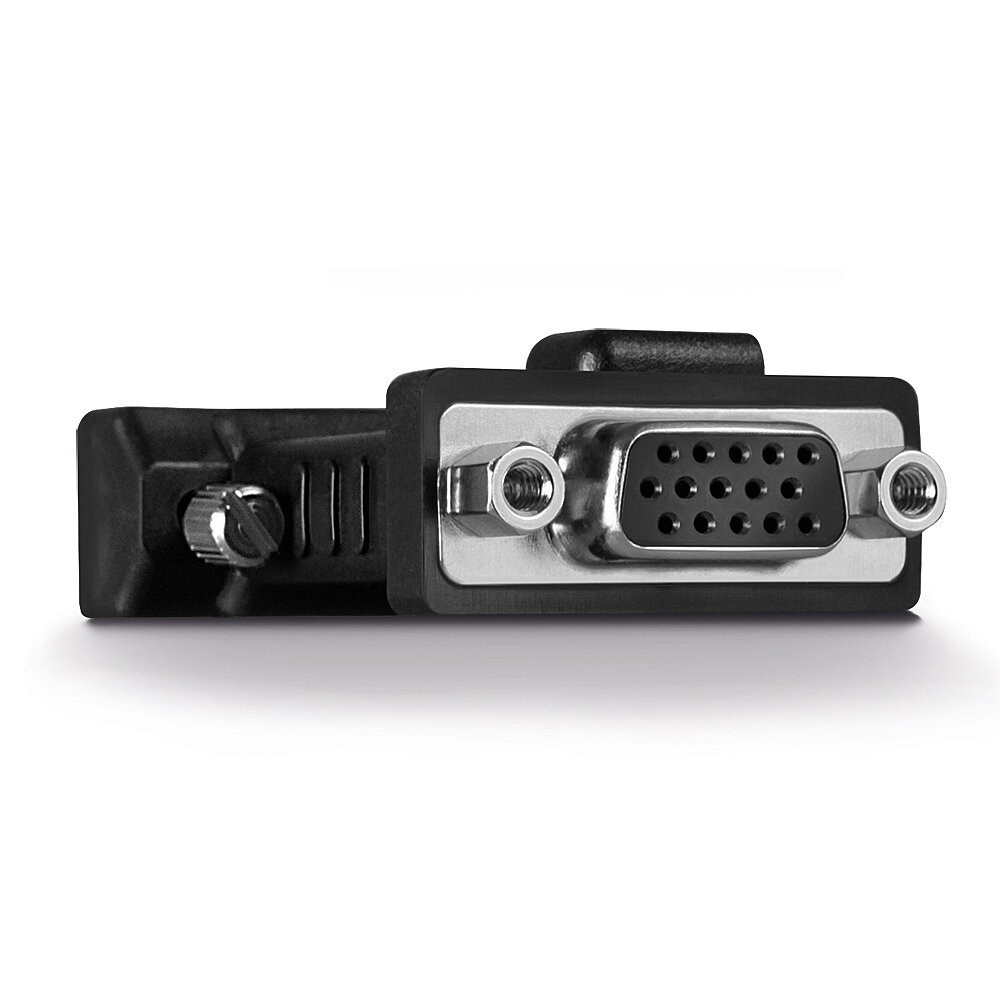

Lindy VGA EDID Emulator
- Continuously emulates VGA EDID information
- Supports resolutions up to 1920x1200@60Hz
- For use with 32120 for cloning
- Powered via VGA Source Interface, 3.5/1.35mm Optional DC jack for non-powered source devices
- 2 Year Warranty
Secure payment methods
Free Delivery On Standard UK Mainland Orders **Over £500
Returns and exchanges
Supports resolutions up to 1920x1200@60Hz
For use with 32120 for cloning
Powered via VGA Source Interface, 3.5/1.35mm Optional DC jack for non-powered source devices
2 Year warranty
The Lindy VGA EDID Emulator is designed for systems that require EDID signals to be continuously provided without interruption and helps overcome EDID related problems which can occur when using AV/KVM extenders, switches and splitters. It can also be used in place of a monitor to keep the graphics card of a PC or server awake for remote access via IP. With support for resolutions up to 1920x1200@60Hz, the emulator is suitable for use with legacy PCs and displays. When used with the Lindy EDID recorder (32120) this device can provide cloned EDID information to the graphics card.
It is also possible to use the Emulator without cloning a display as it comes complete with pre-set EDID data for the most commonly used resolution/timing combinations, please see the Technical Information section for a full breakdown.
Lindy VGA EDID Emulator. Product colour: Black, Maximum video resolution: 3840 x 2160 pixels, Housing material: Metal. Power supply type: DC, DC voltage: 5 V. Width: 48 mm, Depth: 22 mm, Height: 73 mm. Package width: 185 mm, Package depth: 55 mm, Package height: 140 mm
Performance | |
Maximum video resolution | 3840 x 2160 pixels |
Housing material | Metal |
Ports & interfaces | |
HDMI ports quantity | 1 |
VGA (D-Sub) output ports | 1 |
Power | |
Power supply type | DC |
DC voltage | 5 V |
Weight & dimensions | |
Width | 48 mm |
Depth | 22 mm |
Height | 73 mm |
Weight | 234 g |
Packaging data | |
Package width | 185 mm |
Package depth | 55 mm |
Package height | 140 mm |
Package weight | 313 g |
Operational conditions | |
Storage temperature (T-T) | 0 - 90 °C |
Data sheet
- Product colour
- Black
- Maximum video resolution
- 3840 x 2160 pixels
- HDMI ports quantity
- 1
- Power supply type
- DC
- Housing material
- Metal
- Operating temperature (T-T)
- 0 - 50 °C
- Storage temperature (T-T)
- 0 - 90 °C
- Width
- 48 mm
- Depth
- 22 mm
- Height
- 73 mm
- Weight
- 234 g
- Package width
- 185 mm
- Package depth
- 55 mm
- Package weight
- 313 g
- Operating relative humidity (H-H)
- -20 - 70%
- Package height
- 140 mm
- VGA (D-Sub) output ports
- 1
- DC voltage
- 5 V
Specific References
- EAN13
- 4002888321211
- MPN
- 32121
