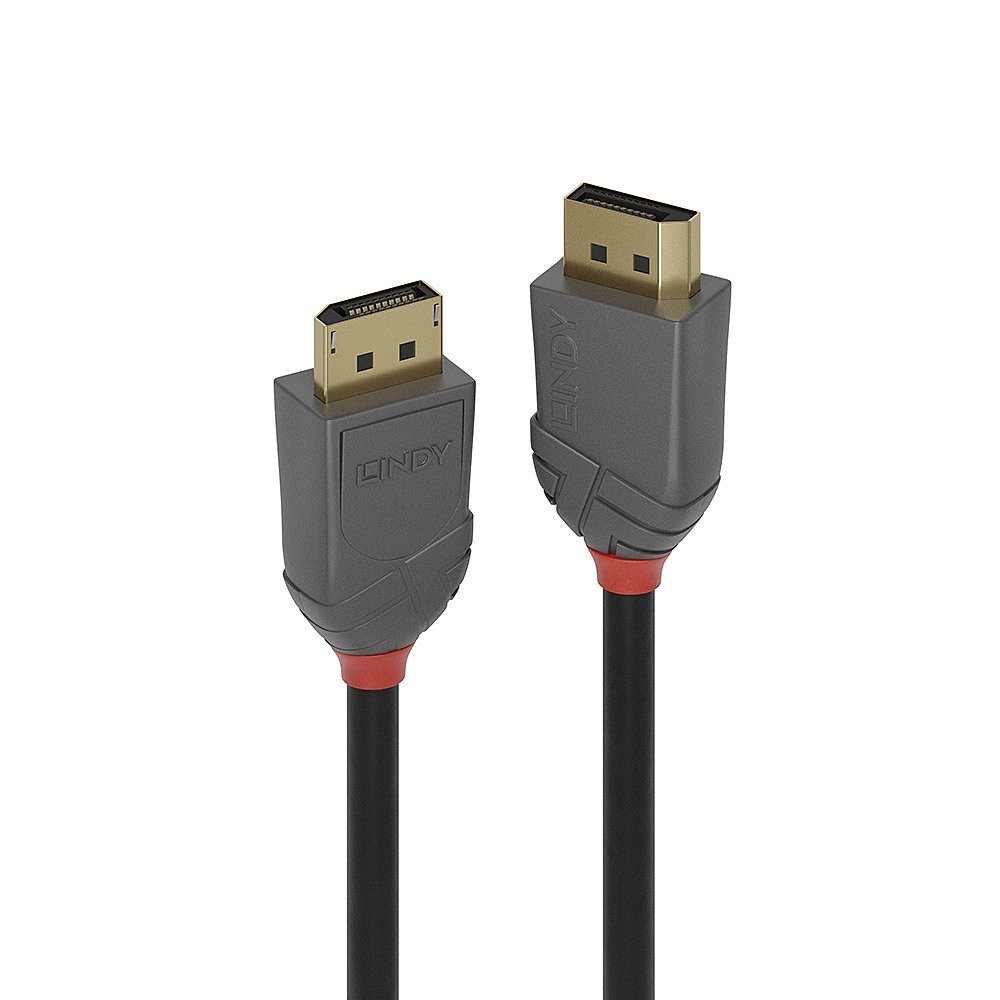

Lindy 5m DisplayPort 1.4 Cable, Anthra Line
- Professional choice DisplayPort 1.4 cable for commercial and high performance AV and IT installations
- Supports UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit including 4K 4096x2160@144Hz 4:2:2 10bit
- Robust ABS housing 24K gold plated connectors and contacts
- Triple shielded cable, corrosion resistant tinned copper 28AWG conductors
- DisplayPort 1.4, 8K 4K, 3D, 32.4Gbps
- 10 Year Warranty
Secure payment methods
Free Delivery On Standard UK Mainland Orders **Over £500
Returns and exchanges
Anthra Line DisplayPort cables are premium connections that feature triple shielded with 28AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 4K 4096x2160@120Hz 4:2:2 8bit and HDCP are supported. DisplayPort 1.2 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.
Anthra Line DisplayPort cables are available in lengths from 0.5m to 5m.
Lindy 5m DisplayPort 1.4 Cable, Anthra Line. Cable length: 5 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Certification: RoHS, REACH, UL. Cable diameter: 7.3 mm, Connector 1 dimensions (WxDxH): 21 x 38.9 x 13.6 mm, Connector 2 dimensions (WxDxH): 21 x 38.9 x 13.6 mm. Package type: Polybag. Quantity per pack: 1 pc(s)
Features | |
Cable length | 5 m |
Connector 1 | DisplayPort |
Connector 2 | DisplayPort |
Connector 1 gender | Male |
Connector 2 gender | Male |
Connector 1 form factor | Straight |
Connector 2 form factor | Straight |
Connector contacts plating | Gold |
DisplayPort version | 1.2 |
Maximum resolution | 4096 x 2160 pixels |
Supported graphics resolutions | 4096 x 2160 |
Supported video modes | 2160p |
Maximum refresh rate | 120 Hz |
Product colour | Black, Grey |
Cable material | Tinned copper |
Cable shielding | Copper |
Jacket material | Polyvinyl chloride (PVC) |
Connector housing material | Acrylonitrile butadiene styrene (ABS) |
AWG wire size | 28 |
Data transfer rate | 21.6 Gbit/s |
Connector material | Gold |
Plug and Play | Yes |
Cable type | Round cable |
Nominal attenuation | 100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB |
Operational conditions | |
Operating temperature (T-T) | -20 - 80 °C |
Storage temperature (T-T) | -25 - 85 °C |
Certificates | |
Certification | RoHS, REACH, UL |
Weight & dimensions | |
Cable diameter | 7.3 mm |
Connector 1 dimensions (WxDxH) | 21 x 38.9 x 13.6 mm |
Connector 2 dimensions (WxDxH) | 21 x 38.9 x 13.6 mm |
Bend radius (min) | 5.84 cm |
Packaging data | |
Package type | Polybag |
Packaging content | |
Quantity per pack | 1 pc(s) |
Logistics data | |
Harmonized System (HS) code | 84733080 |
Data sheet
- Connector 1
- DisplayPort
- Connector 2
- DisplayPort
- Connector 1 gender
- Male
- Connector 2 gender
- Male
- Product colour
- Black, Grey
- Cable length
- 5 m
- Quantity per pack
- 1 pc(s)
- Connector contacts plating
- Gold
- Maximum resolution
- 4096 x 2160 pixels
- Data transfer rate
- 21.6 Gbit/s
- Cable shielding
- Copper
- Jacket material
- Polyvinyl chloride (PVC)
- Certification
- RoHS, REACH, UL
- Operating temperature (T-T)
- -20 - 80 °C
- Storage temperature (T-T)
- -25 - 85 °C
- Package type
- Polybag
- Harmonized System (HS) code
- 84733080
- AWG wire size
- 28
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Straight
- Plug and Play
- Yes
- Cable type
- Round cable
- Connector material
- Gold
- Cable material
- Tinned copper
- Cable diameter
- 7.3 mm
- Connector 1 dimensions (WxDxH)
- 21 x 38.9 x 13.6 mm
- Nominal attenuation
- 100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB
- Bend radius (min)
- 5.84 cm
- Connector 2 dimensions (WxDxH)
- 21 x 38.9 x 13.6 mm
- Supported graphics resolutions
- 4096 x 2160
- Supported video modes
- 2160p
- Maximum refresh rate
- 120 Hz
- DisplayPort version
- 1.2
- Connector housing material
- Acrylonitrile butadiene styrene (ABS)
- Contact material
- Phosphor bronze
- Colour sampling
- 4:2:2
Specific References
- EAN13
- 4002888364843
- MPN
- 36484
