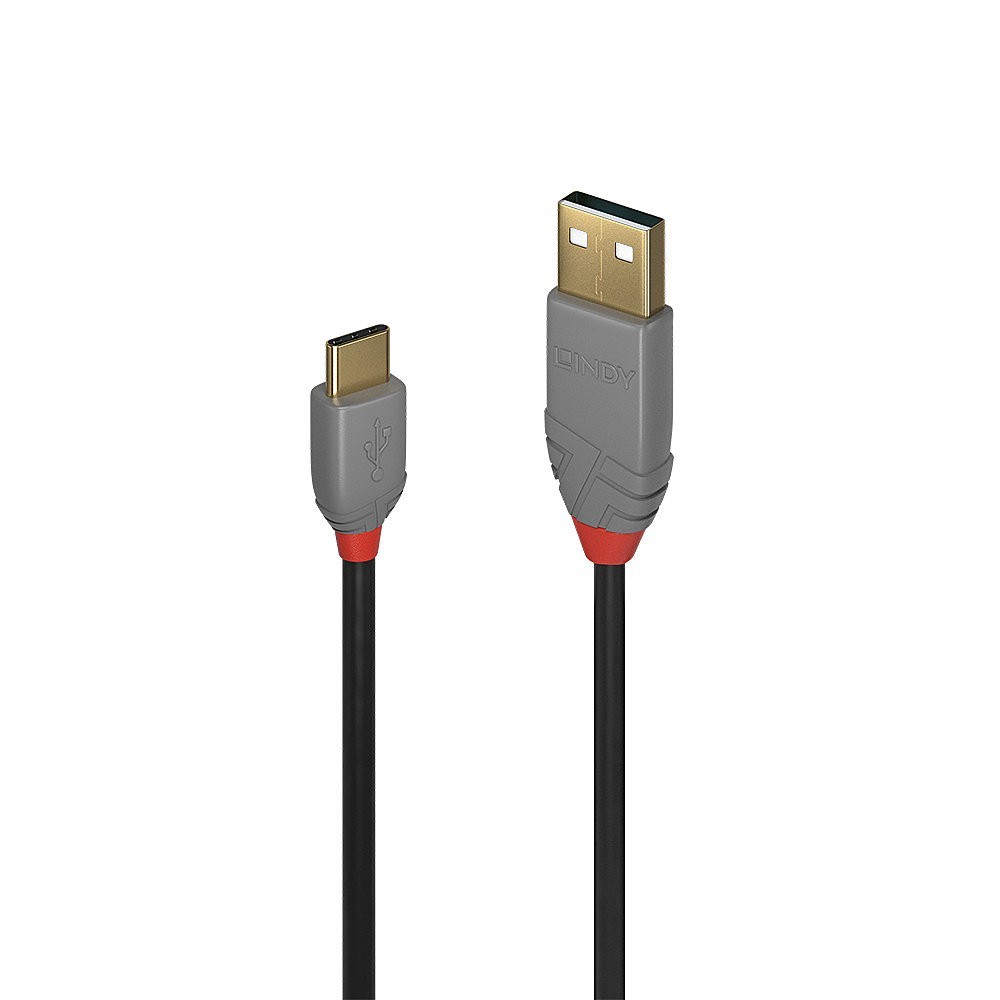

Lindy 1m USB 2.0 Type A to C Cable, Anthra Line

Lindy 1m USB 2.0 Type A to C Cable, Anthra Line

  • Professional choice USB 2.0 Type A to C cable for commercial and high performance AV and IT installations
  • Supports data transfer speeds up to 480Mbps
  • Robust PVC housing, gold plated connectors and contacts
  • Double shielded cable, corrosion resistant tinned copper conductors
  • USB 2.0, 480Mbps
  • 10 Year Warranty
Lindy
36886
193 Items
Hurry up! only 193 items left in stock!
£5.02
Add to Wishlist
Add to Compare
In Stock

  Secure Payments

Secure payment methods

  Shipping Policy

Free Delivery On Standard UK Mainland Orders **Over £500

  Returns Policy

Returns and exchanges

From the Lines cable connectivity concept developed by Lindy, Anthra Line USB 2.0 Type A to C cables are the professional choice for high performance connections in commercial AV and IT installations.

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

Anthra Line USB 2.0 cables are premium connections that feature double shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain signal integrity and reliability.

Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.

Anthra Line USB 2.0 Type A to C cables are available in lengths from 0.5m to 3m.

Lindy 1m USB 2.0 Type A to C Cable, Anthra Line. Cable length: 1 m. Connector 1: USB A, Connector 2: USB C, USB version: USB 2.0, Maximum data transfer rate: 0.48 Gbit/s, Connector contacts plating: Gold, Product colour: Black, Grey
Features
USB versionUSB 2.0
Connector 1USB A
Connector 2USB C
Connector 1 genderMale
Connector 2 genderMale
Connector 1 form factorStraight
Connector 2 form factorStraight
AWG wire size28
Connector materialGold
Contact materialPhosphor bronze
Connector contacts platingGold
Cable jacket materialPolyvinyl chloride (PVC)
Connector shield materialCopper
Connector housing materialPolyvinyl chloride (PVC)
Maximum data transfer rate0.48 Gbit/s
Cable typeRound cable
Plug and PlayYes
Nominal attenuation0.5-3m: 0.5Mhz €“ 400Mhz 5.8db
Weight & dimensions
Cable length1 m
Cable diameter3.5 mm
Bend radius (min)3.5 cm
Connector 1 dimensions (WxDxH)11 x 25.5 x 7.3 mm
Connector 2 dimensions (WxDxH)15.5 x 35.1 x 7.8 mm
Packaging data
Package typePolybag
Packaging content
Quantity per pack1 pc(s)
Operational conditions
Operating temperature (T-T)-20 - 80 °C
Storage temperature (T-T)-25 - 85 °C
Logistics data
Harmonized System (HS) code84733080
36886
193 Items

Data sheet

USB version
USB 2.0
Connector 1
USB A
Connector 2
USB C
Connector 1 gender
Male
Connector 2 gender
Male
Product colour
Black, Grey
Cable length
1 m
Quantity per pack
1 pc(s)
Connector contacts plating
Gold
Maximum data transfer rate
480 Mbit/s
Certification
RoHS, REACH, UL
Operating temperature (T-T)
-20 - 80 °C
Storage temperature (T-T)
-25 - 85 °C
Package type
Polybag
Harmonized System (HS) code
84733080
AWG wire size
28
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Plug and Play
Yes
Cable type
Round cable
Connector material
Gold
Cable diameter
3.5 mm
Connector 1 dimensions (WxDxH)
11 x 25.5 x 7.3 mm
Cable jacket material
Polyvinyl chloride (PVC)
Conductor material
Tinned copper
Connector shielding
Yes
Connector shield material
Copper
Nominal attenuation
0.5-3m: 0.5Mhz €“ 400Mhz 5.8db
Bend radius (min)
3.5 cm
Connector 2 dimensions (WxDxH)
15.5 x 35.1 x 7.8 mm
Connector housing material
Polyvinyl chloride (PVC)
Contact material
Phosphor bronze

Specific References

EAN13
4002888368865
MPN
36886
