Cat.6 extenders allow for cost effective, reliable extension of audio or video signals over longer distances that are not possible with passive cable or active repeater solutions.

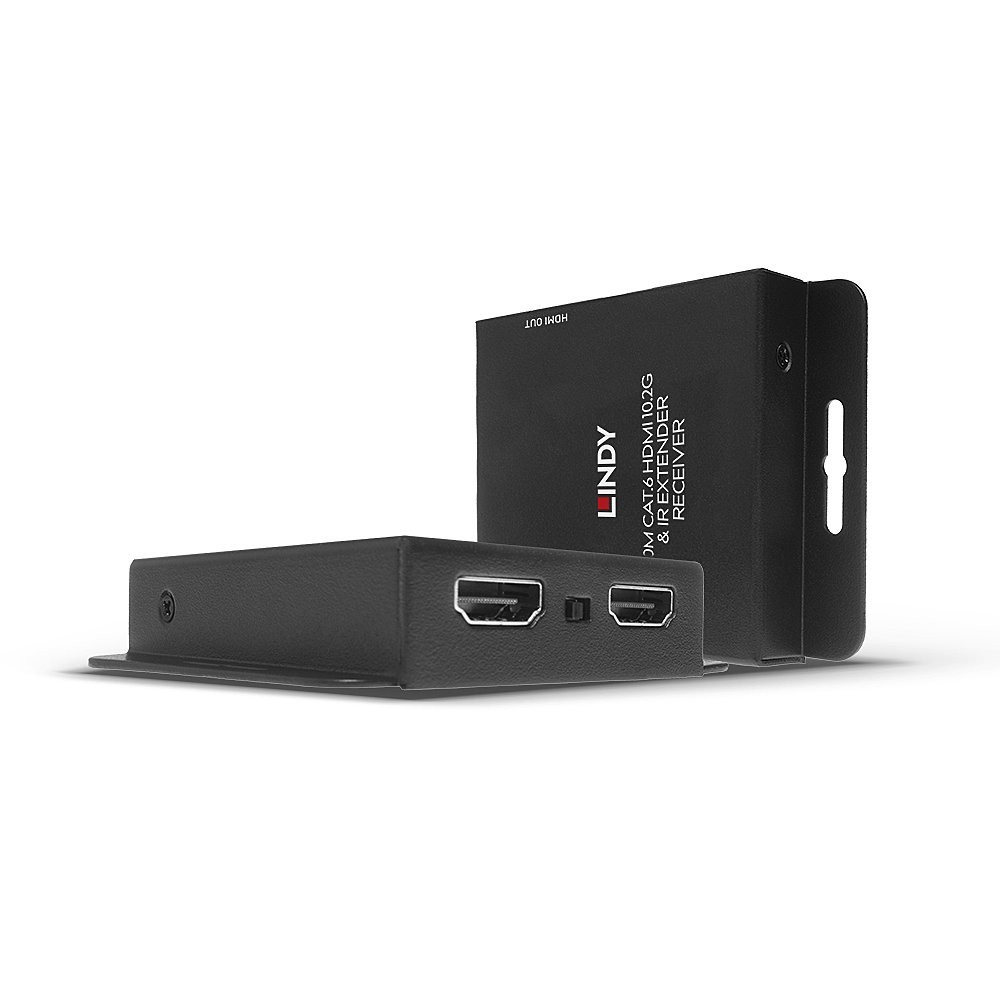

The Lindy 70m Cat.6 HDMI 4K30 and IR Extender is a simple to use solution which lets the user extend HDMI signals up to 70m using a single low cost Cat.6 U/UTP cable (not included). For added convenience, IR signals (20-60 kHz) can also be extended using the supplied IR receiver and emitter cables.

Supporting 4K resolutions up to 3840x2160@30Hz 4:4:4 8bit, video content can be seen with incredible clarity at distances up to 70m, perfect for use in a variety of AV and digital signage applications in a range of settings including residential setups, education, business, retail and healthcare.

This extender features an HDMI loop-out port on the transmitter for local simultaneous viewing so that a local display can be connected for monitoring or to create an additional viewing zone. To ensure the maximum compatibility when two displays are connected, the EDID data, which determines the supported video and audio formats, can be copied from either the local display connected to the transmitter or the remote display connected to the receiver.

Power over Cable (PoC) functionality enables the extender to operate from a single power supply connected to the transmitter, allowing the receiver to be located where there is limited access to mains power sockets, making it ideal for minimalist, discreet installations.

In addition to PoC functionality the extender's slim design allow it to be easier to install in limited spaces behind flat screen monitors or TVs.

Please Note: The quoted lengths and resolutions are possible with a direct connection between Transmitter and Receiver using good quality Cat.6 solid core cable. Using a different cable type, or introducing wall plates, couplers or patch panels will result in a reduction of possible distances.

Lindy 70m Cat.6 HDMI 4K30 and IR Extender with PoC and Loop Out. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6. Connectivity technology: Wired. Operating voltage: 12 V, Input current: 1 A. Width: 79.5 mm, Depth: 69 mm, Height: 16.5 mm. Package width: 200 mm, Package depth: 70 mm, Package height: 113 mm

Features
Type	AV transmitter & receiver
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat6
Chipset	GSV1001
Maximum refresh rate	60 Hz
Extended display identification data (EDID)	Yes
Audio output channels	7.1 channels
HDCP version	1.4
Product colour	Black
Certification	CE, FCC, RoHS, REACH
Ports & interfaces
Connectivity technology	Wired
RJ-45 input ports	1
RJ-45 output ports	1
HDMI version	1.4
Remote (IR) output	1
Power
Operating voltage	12 V
Input current	1 A
Operational conditions
Operating relative humidity (H-H)	20 - 90%
Weight & dimensions
Width	79.5 mm
Depth	69 mm
Height	16.5 mm
Weight	130 g
Packaging data
Package width	200 mm
Package depth	70 mm
Package height	113 mm
Package weight	414 g
Packaging content
AC adapter included	Yes
Manual	Yes
IR receiver included	Yes
