The Lindy HDMI PiP Video Processor allows signals from four different sources to be integrated for display on a single monitor simultaneously. They can be shown in various configurations including Quad View, Picture in Picture and Overlay (Chromakey) which gives the ability to overlay the image from one source on top of an other.

The flexibility of this matrix means it can be used for a number of different uses. For example in the home it could be used to combine HDMI CCTV cameras with a set top box so users can easily monitor what's happening from the comfort of an armchair. In public it could overlay a camera feed on top of a static background from another source to show rolling news and information. Or in a business setting it could display multiple laptops in a meeting or monitor a number of computers on a single display.

This flexible feature rich product has been designed to be used in a number of different applications, such as:



Public Advertisement Digital Presentation Broadcasting and Control CCTV Surveillance and Control Conference and Meeting Room

Demo Kit Available!

If you're a business customer with a Lindy credit account, you can try this product for yourself for FREE! We have a demo kit which we make available to select customers (subject to approval). Please emailpostmaster@lindy.co.ukfor details.

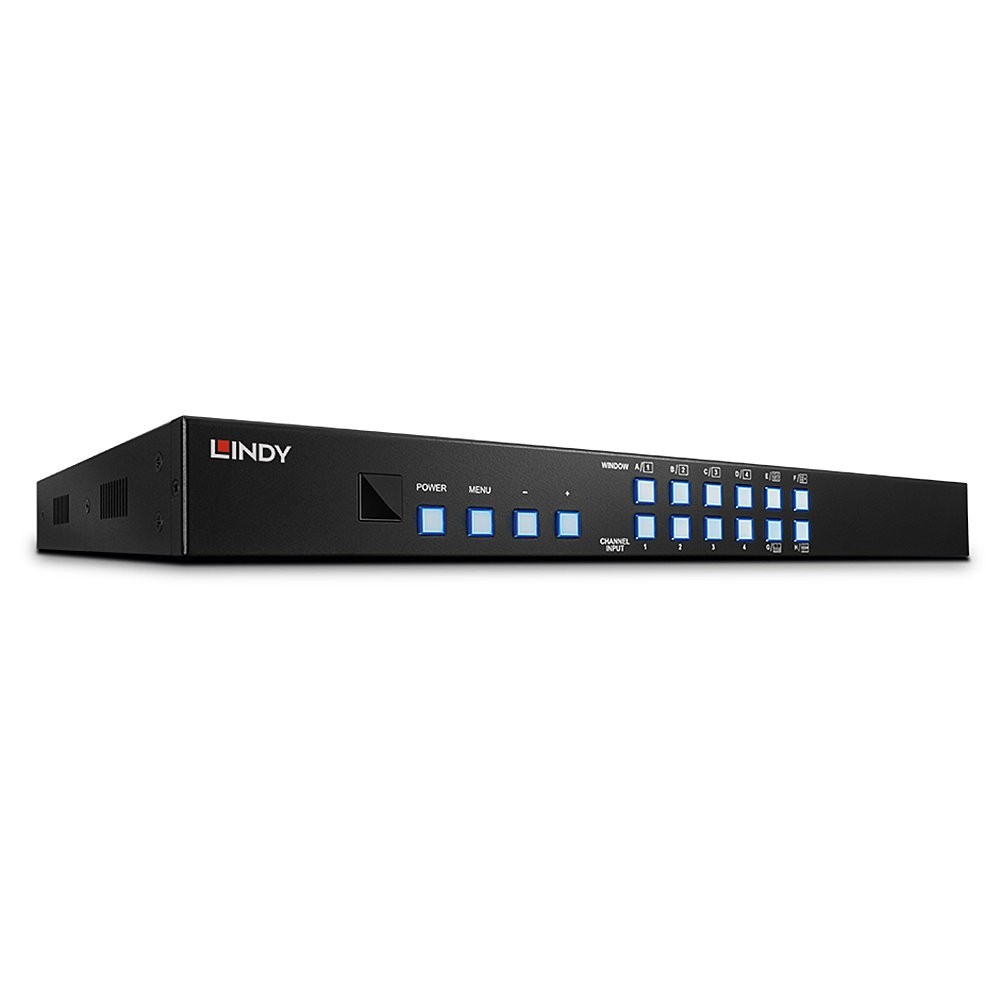

Lindy 4 Port HDMI Processor Switch with PiP. Video port type: HDMI. Product colour: Black, Supported video modes: 1080i, 1080p, 480p, 576i, 576p, 720p, Bandwidth: 6.75 Gbit/s. Power consumption (typical): 15 W. Width: 436 mm, Depth: 247 mm, Height: 44 mm

Ports & interfaces
Video port type	HDMI
HDMI ports quantity	5
HDMI in	4
Number of HDMI outputs	1
RJ-45 input ports	1
RS-232 ports	1
Video out	1
DC-in jack	Yes
Features
Product colour	Black
Remote control type	IR
Power
Power consumption (typical)	15 W
Weight & dimensions
Width	436 mm
Depth	247 mm
Height	44 mm
Weight	2.95 kg
Packaging content
Remote control included	Yes
Logistics data
Harmonized System (HS) code	85176990
