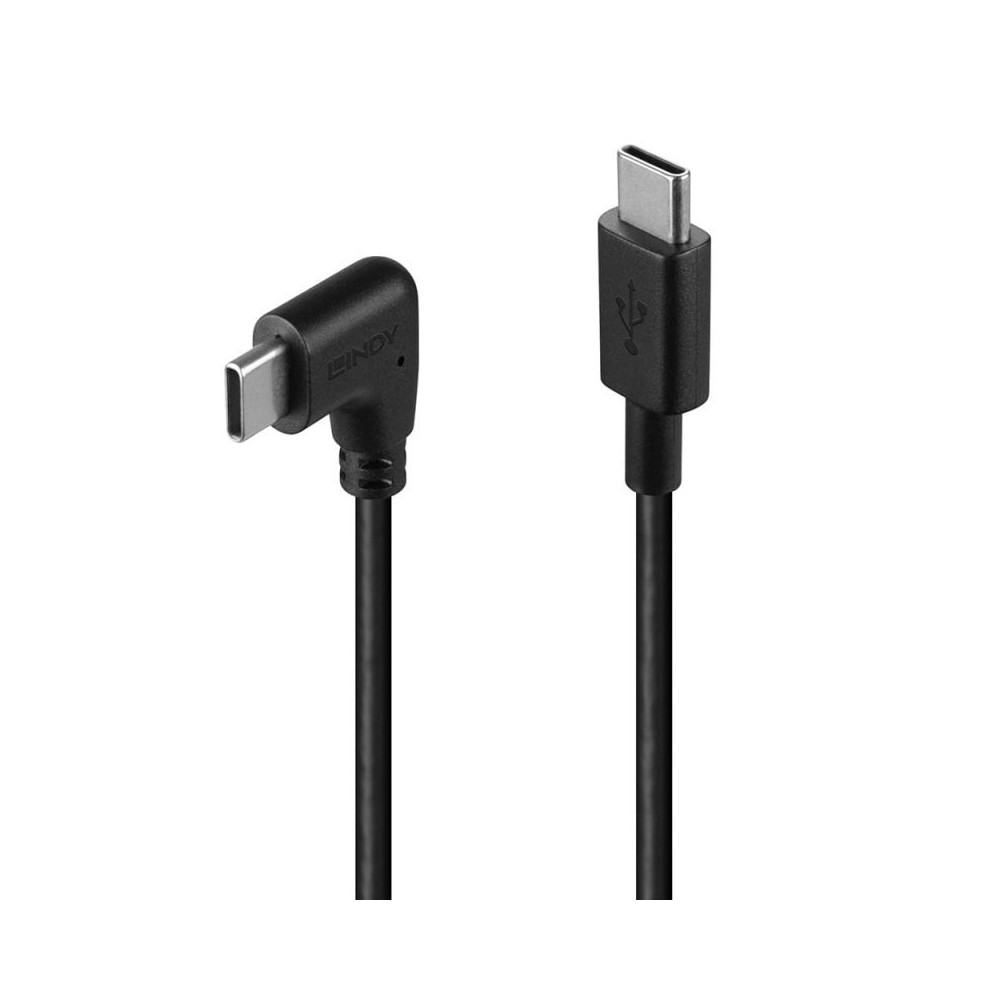

Lindy 1m USB 2.0 Straight USB-C to Right-Angled USB-C Cable
- Entry level USB 2.0 Type C cable for home and small office applications
- One USB Type C plug angled at 90 .deg
- Supports data rates of up to 480Mbit/s
- Robust PVC housing with nickel-plated contacts
- 10 Year Warranty
Secure payment methods
Free Delivery On Standard UK Mainland Orders **Over £500
Returns and exchanges
Data transfer speeds up to 480Mbps are supported for the quick and effortless transfer of large data volumes.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
USB 2.0 Type C, 90° Right Angle cables are available in the following lengths: 0.5m, 1m.
Lindy 1m USB 2.0 Straight USB-C to Right-Angled USB-C Cable. Cable length: 1 m. Connector 1: USB C, Connector 2: USB C, USB version: USB 2.0, Connector contacts plating: Nickel, Product colour: Black
Features | |
USB version | USB 2.0 |
Connector 1 | USB C |
Connector 2 | USB C |
Connector 1 gender | Male |
Connector 2 gender | Male |
Connector 1 form factor | Straight |
Connector 2 form factor | Angled |
AWG wire size | 22/28 |
Connector material | Gold |
Connector contacts plating | Nickel |
Cable jacket material | Nylon/Polyvinyl Chloride (PVC) |
Connector shield material | Aluminium |
Cable type | Round cable |
USB Power Delivery up to | 60 W |
Nominal attenuation | 0.5Mhz- 400Mhz < 5.8db |
Weight & dimensions | |
Cable length | 1 m |
Cable diameter | 3.8 mm |
Bend radius (min) | 5 cm |
Connector 1 dimensions (WxDxH) | 6.5 x 23.7 x 10.9 mm |
Connector 2 dimensions (WxDxH) | 7 x 24 x 6.8 mm |
Packaging data | |
Package type | Polybag |
Packaging content | |
Quantity per pack | 1 pc(s) |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | 0 - 70 °C |
Logistics data | |
Warranty period | 10 year(s) |
Data sheet
- USB version
- USB 2.0
- Connector 1
- USB C
- Connector 2
- USB C
- Connector 1 gender
- Male
- Connector 2 gender
- Male
- Product colour
- Black
- Cable length
- 1 m
- Quantity per pack
- 1 pc(s)
- Connector contacts plating
- Nickel
- Certification
- RoHS, REACH, California Proposition 65
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- 0 - 70 °C
- Package type
- Polybag
- Compliance certificates
- REACH, RoHS
- AWG wire size
- 22/28
- Warranty period
- 10 year(s)
- Connector 1 form factor
- Straight
- Connector 2 form factor
- Angled
- Cable type
- Round cable
- USB Power Delivery up to
- 60 W
- Connector material
- Gold
- Cable diameter
- 3.8 mm
- Connector 1 dimensions (WxDxH)
- 6.5 x 23.7 x 10.9 mm
- Cable jacket material
- Nylon/Polyvinyl Chloride (PVC)
- Conductor material
- Copper
- Connector shielding
- Yes
- Connector shield material
- Aluminium
- Nominal attenuation
- 0.5Mhz- 400Mhz < 5.8db
- Bend radius (min)
- 5 cm
- Connector 2 dimensions (WxDxH)
- 7 x 24 x 6.8 mm
Specific References
- EAN13
- 4002888320054
- MPN
- 32005
