The 4K HDMI Video Wall Controller Scaler allows a 4K UHD HDMI input source to be freely arranged on 4 displays (TV or monitor) in a variety of arrangements (2x2, 4x1, 1x4). Larger video walls (up to 15x15) can be created using a HDMI splitter and multiple Scalers.

Each output can be adjusted for bezel correction, contrast, brightness, saturation and hue so that you can optimise the appearance of your video wall.

This flexible feature rich product has been designed to be used in a number of different applications, such as:



Public/Retail Advertisement Digital Presentation Broadcasting and Control Surveillance and Control Conference and Meeting Room

The Scaler, or multiple Scalers in larger installations, can be controlled by a simple control application (see downloads) or via RS-232 and Telnet using the commands listed in the user manual, making it simple to integrate within your installation.

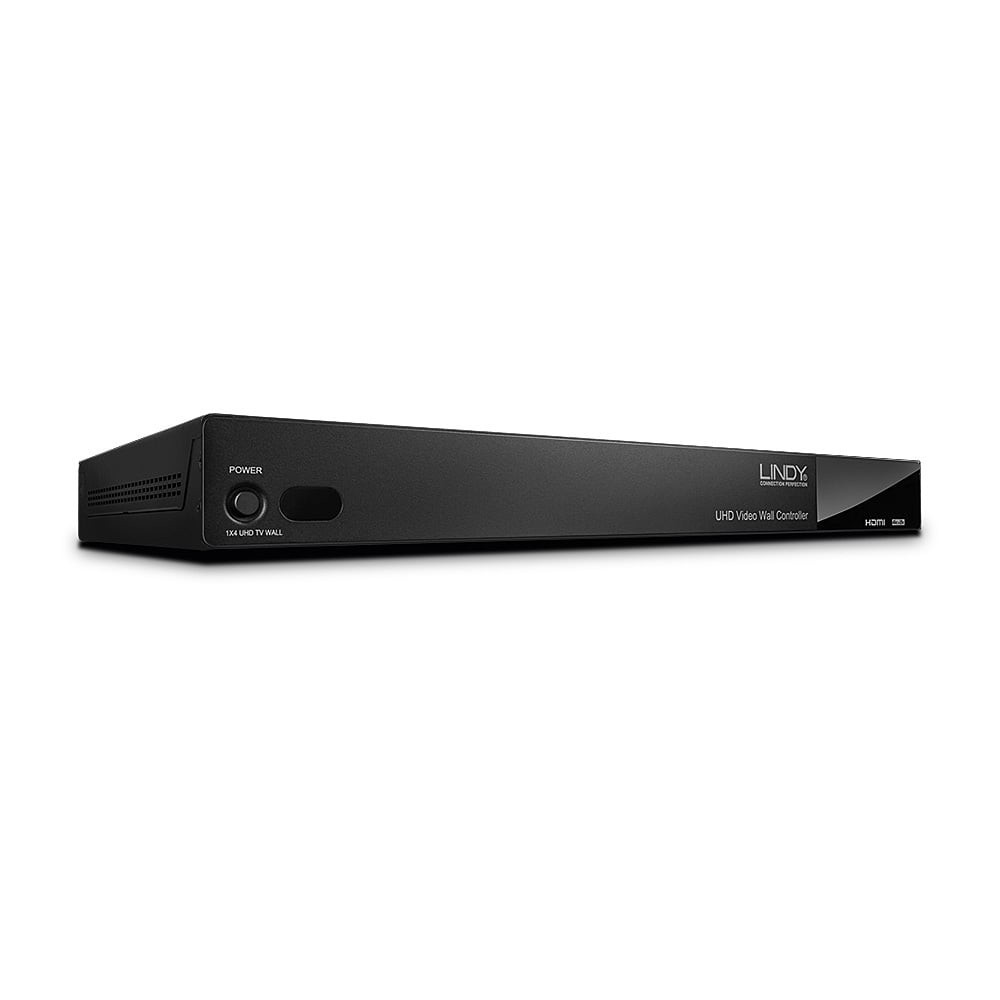

Lindy 4 Port HDMI 4K Video Wall Scaler. Video port type: HDMI, Video out: 4x HDMI. Maximum resolution: 1920 x 1080 pixels, Product colour: Black, HD type: HD. Power consumption (typical): 12.98 W. Width: 438 mm, Depth: 269 mm, Height: 44 mm. Quantity per pack: 1 pc(s)

Ports & interfaces
Video ports quantity	5
Video port type	HDMI
Video out	4x HDMI
Ethernet LAN (RJ-45) ports	1
Serial ports quantity	1
Features
Product colour	Black
Maximum resolution	1920 x 1080 pixels
HD type	HD
Bandwidth	300 MHz
Dolby technologies	DTS, DTS-HD, Dolby Digital Plus, Dolby TrueHD
Certification	CE, FCC
Network
Ethernet LAN	Yes
Power
Power consumption (typical)	12.98 W
Weight & dimensions
Width	438 mm
Depth	269 mm
Height	44 mm
Weight	2.9 kg
Packaging data
Quantity per pack	1 pc(s)
Packaging content
Manual	Yes
