A matrix switch is a multi-port solution for distributing content from multiple sources to several displays in a variety of configurations.

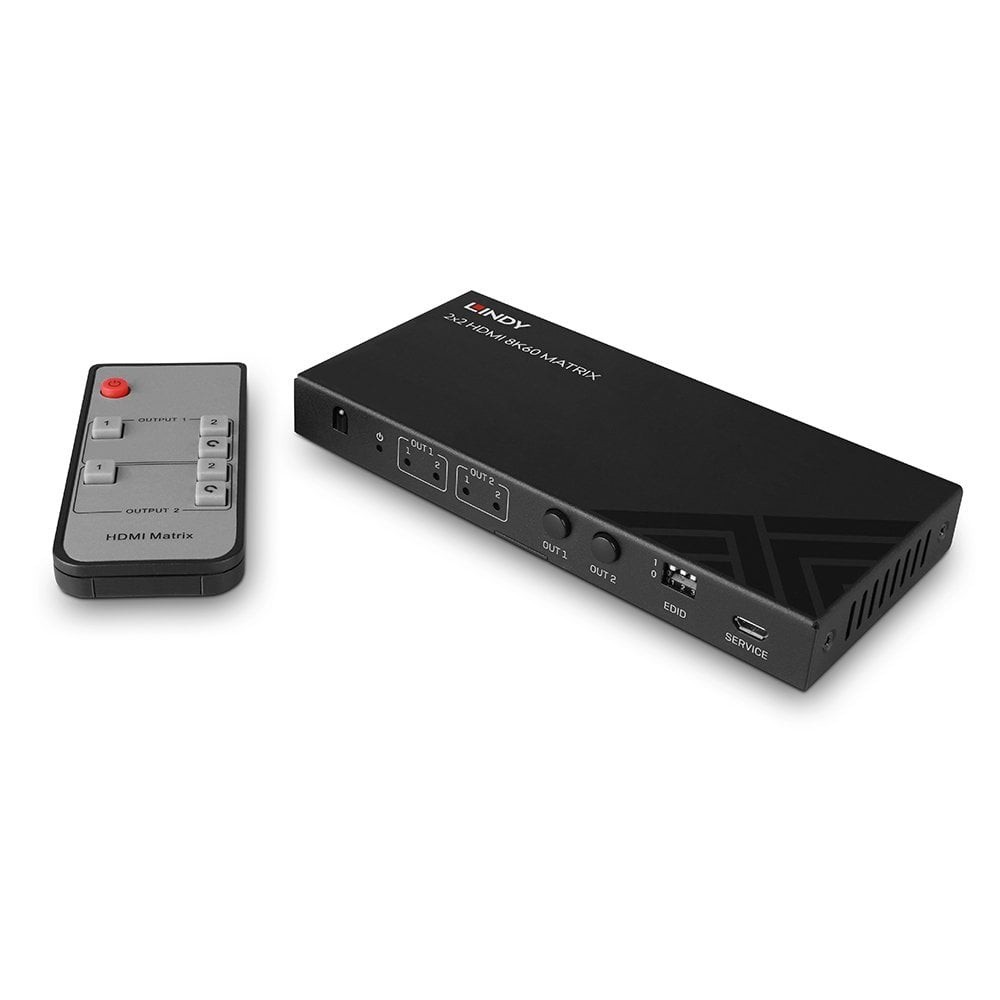

The Lindy 2x2 HDMI 8K60 Matrix Switch is a premium, compact solution for distributing content from two devices to two displays. Dual HDMI inputs and outputs provide the ability to switch between 2 separate source devices or 2 connected HDMI displays, or output video simultaneously.

With support for HDMI 8K signals, this matrix allows for the transmission of high quality 4K UHD 3840x2160@120Hz or 8K 7680x4320@60Hz resolutions, while additional support for HDR (High Dynamic Range) ensures video content can be viewed with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for high quality residential setups or small scale digital signage installations in retail.

HDCP 2.3 support ensures there are no compatibility issues with 8K content when connected to source devices including set top boxes, Blu-Ray players and 8K HDR media players. Simple EDID management via an integrated switch allows the user to control and ensure the optimum resolution based on their connected displays.

As well as HDMI audio pass-through, a 3.5mm audio port allows for a separate connection of both analogue speaker systems, and optical audio devices such as soundbars and amplifiers, for creating immersive audio experiences to compliment the video on screen.

This matrix can be easily controlled via push button switching on the unit, while the included remote control also allows the user to have better control over multiple videos and displays, great for trade shows, training presentations or sales demonstrations.

Lindy 38313. Product type: AV matrix switcher, Maximum resolution: 7680 x 4320 pixels, Bandwidth: 40 Gbit/s. Housing colour: Black, Housing material: Metal, Control type: Buttons. USB connector type: Micro-USB. Power consumption (max): 6.2 W, Input current: 2 A, Output voltage: 5 V. Width: 145 mm, Depth: 68 mm, Height: 17 mm

Features
Product type	AV matrix switcher
Maximum resolution	7680 x 4320 pixels
Bandwidth	40 Gbit/s
HDCP	Yes
HDCP version	2.3
EDID management	Yes
Audio formats supported	LPCM
Design
Housing colour	Black
Housing material	Metal
Control type	Buttons
Remote control included	Yes
Certification	POP, CP65
Display
Built-in display	No
Ports & interfaces
HDMI input ports quantity	2
HDMI output ports quantity	2
HDMI version	2.1
Digital audio optical out	1
USB connector type	Micro-USB
USB ports quantity	1
Audio (L/R) out	1
DC-in jack	Yes
Power
Power consumption (max)	6.2 W
Input current	2 A
Output voltage	5 V
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Weight & dimensions
Width	145 mm
Depth	68 mm
Height	17 mm
Package type	Box
Package depth	113 mm
Package height	70 mm
Package weight	482 g
Packaging content
Manual	Yes
