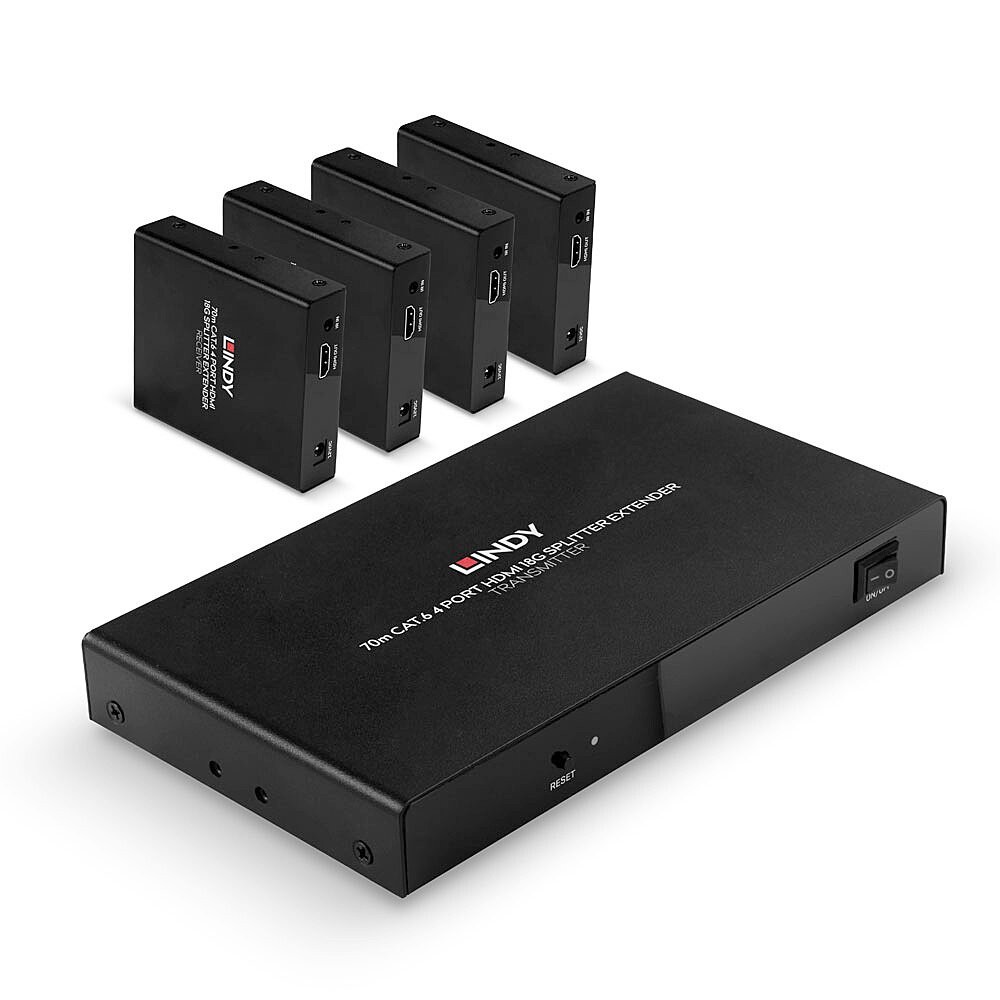

The Lindy 70m Cat.6 4 Port HDMI 4K60 Splitter Extender is a simple, professional solution for distribution of 4K HDMI signals to multiple displays using standard Cat.6 network cables.

Scalable Content DistributionThis Cat.6 splitter allows for distribution to up 4 remote locations using the included receivers, at up to 70m in distance, ideal for sharing content simultaneously in sports bars or events. The local HDMI output on the splitter allows for monitoring using a connected display, or alternatively can be combined with up to 2 additional Cat.6 splitters for even larger scale content distribution.

Immersive 4K and HDR SupportWith support for resolutions up to 3840x2160@60Hz, this splitter ensures superior clarity of high-quality video, including movies, sports, games, or live monitoring. HDR support ensures a much wider colour gamut is visualised, alongside a higher peak brightness and deeper blacks for an enhanced dynamic contrast. This provides an eye-catching and engaging experience for the viewer in a variety of different applications including digital signage in retail, content delivery in lecture halls, or information broadcasting in travel hubs.

Seamless IR ControlThe included IR cables allow for simple control via an IR remote from any of the receiver locations, removing the need to be situated at the source side on the setup.

Simultaneous PoC DistributionThe Cat.6 HDMI 4K60 Splitter also support PoC (Power over cable) allowing for power to be distributed alongside audio and video over the cat.6 cabling. This allows for only one power source being required at the transmitter side, ensuring a minimalist and time-saving setup at the receiver locations.

Please Note: The quoted resolutions are possible with a direct connection between transmitter and receiver using good quality Cat.6 solid core cable. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of maximum distances.

Lindy 70m Cat.6 4 Port HDMI 4K60 Splitter Extender. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6. Connectivity technology: Wired. Receiver dimensions (WxDxH): 100 x 88 x 23 mm, Receiver weight: 199 g, Transmitter dimensions (WxDxH): 180 x 103 x 23 mm. Package width: 423 mm, Package depth: 60 mm, Package height: 354 mm. Cables included: IR, IR sensor

Features
Type	AV transmitter & receiver
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat6
Chipset	GSV2006, GSV5100
Maximum refresh rate	60 Hz
Extended display identification data (EDID)	Yes
HDCP version	2.2
Product colour	Black
Certification	CE, UKCA, FCC, RoHS, REACH & California Propositon 65
Ports & interfaces
Connectivity technology	Wired
RJ-45 input ports	4
RJ-45 output ports	4
HDMI version	2.0
Remote (IR) output	1
DC-in jack	Yes
Operational conditions
Operating relative humidity (H-H)	5 - 90%
Weight & dimensions
Receiver dimensions (WxDxH)	100 x 88 x 23 mm
Receiver weight	199 g
Transmitter dimensions (WxDxH)	180 x 103 x 23 mm
Transmitter weight	390 g
Packaging data
Package width	423 mm
Package depth	60 mm
Package height	354 mm
Package weight	2 kg
Package type	Box
Packaging content
Cables included	IR, IR sensor
Manual	Yes
Mounting brackets included	Yes
