A KVM switch allows an operator to conveniently control and manage multiple devices, such as PCs and servers, from a single keyboard, mouse and display console.

This advanced KVM Switch has been designed for use with PCs and Macs. It features DisplayPort video ports and a two port USB 2.0 hub for connecting and sharing peripherals. With audio support, you can also connect speakers or headsets.

The switch occupies only a single 1U space in a 19andrdquo; rack and supports screen resolutions of up to 4K Ultra HD 60Hz, great for graphical content in gaming setups, video editing or controlling multiple workstations. It provides 2 simple switching modes, via keyboard hotkeys and front panel buttons.

A local console can be connected to the 2 USB and DP ports on the rear panel while the built-in 2 port USB 2.0 hub saves money on requiring additional devices by sharing peripherals between the connected computers. The unique switching arrangement allows the USB hub to be switched independently of the PCs for uninterrupted printing, scanning or external drive access. Options can be accessed only via keyboard hotkeys.

LED indicators show the status of the selected channel.

Please Note: connection cables are not included. DisplayPort, USB A to B, and 3.5mm audio cables are required for each connected computer. The maximum supported distance for USB, using standard cables, is 5m. For distances over 5m, use a Lindy USB Active Extension Cable. MST hubs are not supported.

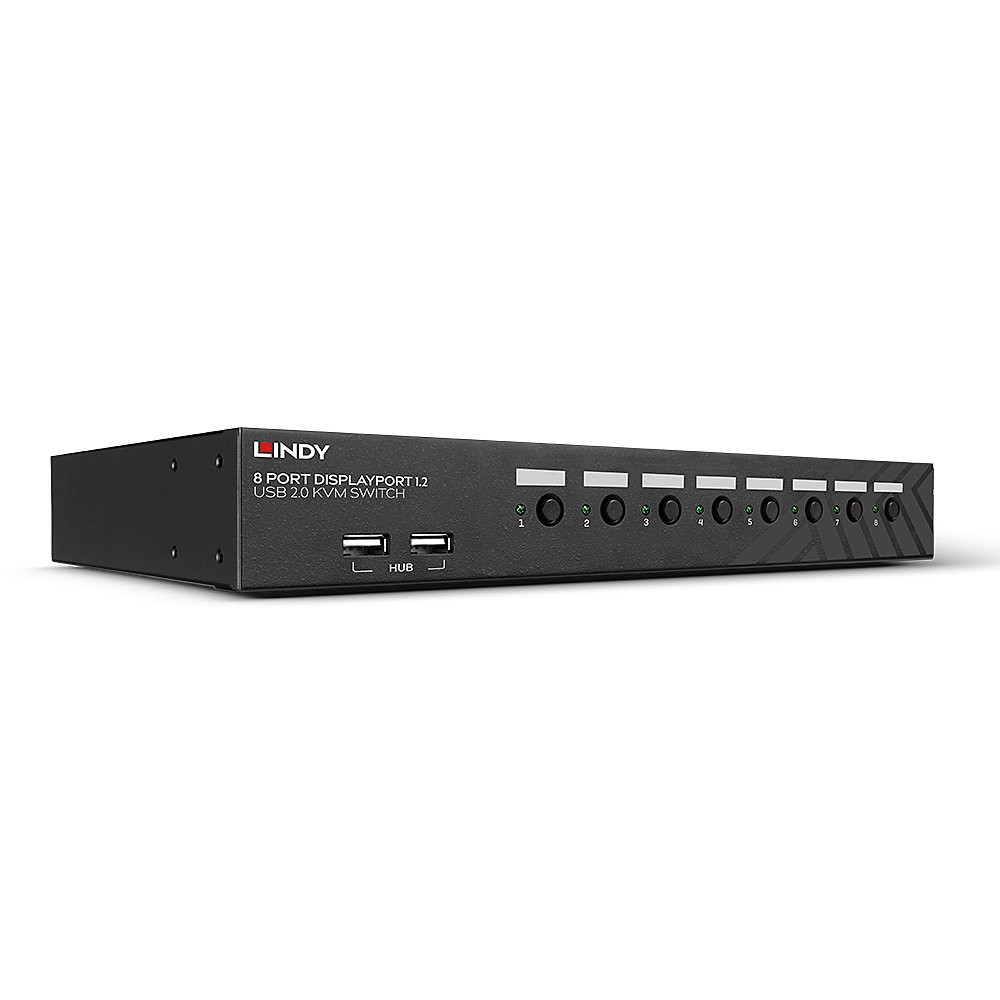

Lindy 8 Port DisplayPort 1.2, USB 2.0 and Audio KVM Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Rack capacity: 1U. Output voltage: 9 V, Output current: 2 A. Width: 300 mm, Depth: 164 mm, Height: 44 mm

Ports & interfaces
Number of computers controlled	8
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
DisplayPorts quantity	9
USB 2.0 Type-B ports quantity	8
Console USB ports quantity	2
Audio connections	Yes
DC-in jack	Yes
Performance
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Video bandwidth	60 Hz
Design
Rack capacity	1U
Product colour	Black
Power
Output voltage	9 V
Output current	2 A
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 90%
Weight & dimensions
Width	300 mm
Depth	164 mm
Height	44 mm
Weight	1.53 kg
Logistics data
Harmonized System (HS) code	85176200
