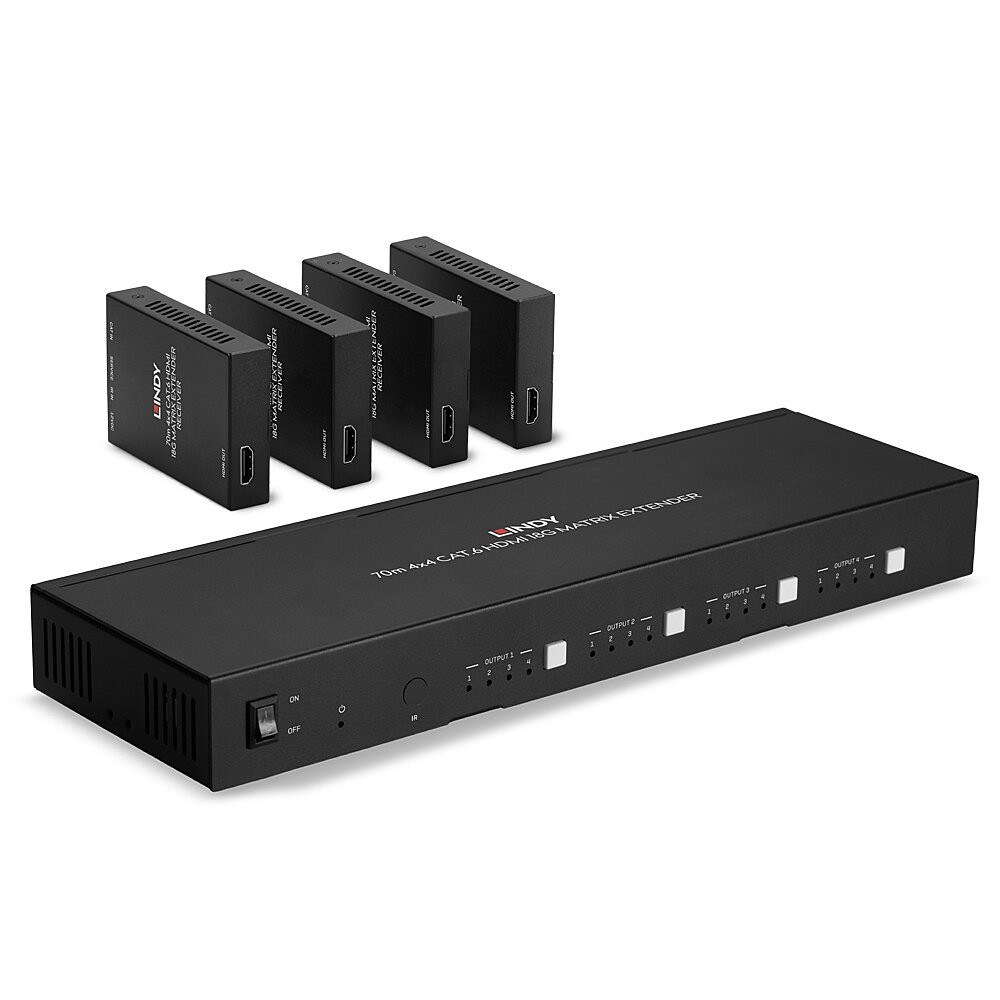

The Lindy 70m Cat.6 4x4 HDMI 4K60 Matrix Extender is a high-performance, professional solution for distribution of 4K HDMI signals to multiple displays using standard Cat.6 network cables from 4 separate HDMI sources.

Professional HDMI Content DistributionThis 4x4 matrix allows for the distribution of HDMI content to 4 separate locations, using the included receivers, at up to 70m in distance, perfect for splitting or switching content to various displays in sports bars, events or residential home cinemas. Each Cat.6 extension output also has a simultaneous HDMI output for local monitoring for each zone, or for a larger install with closely located displays. Each port also support simple independent downscaling to 1920x1080, for consistently ensuring peak performance on a variety of displays. Professional EDID management ensures maximum compatibility with both the source devices and displays.The following distance and resolution combinations are supported:- 70m with Cat.6 cable: 1920x1080@60Hz 4:4:4 8bit, 3D@1920x1080- 40m with Cat.6A cable: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit

Eye-Catching 4K and HDR SupportWith support for resolutions up to 3840x2160@60Hz, this matrix provides exceptional clarity of high-quality video, including movies, sports, games, or live monitoring. HDR support ensures a much wider colour gamut is supported, alongside higher peak brightnesses and deeper blacks for an enhanced dynamic contrast. This provides an engaging visual experience for the viewer in a variety of different applications including home cinema installations, larger distribution in educational buildings or commercial advertising and displays.

Flexible ControlThe included IR cables allow for simple control via an IR remote from any of the receiver locations, removing the need to be situated at the source side on the setup, while push buttons on the main unit provide easy control at the transmitter side. RS-232 and Ethernet connections also provide the ability for integration into larger control systems. An in-built Web-Gui also ensures very simple management using a connected PC.

Simultaneous PoC DistributionThe Cat.6 HDMI 18G Matrix also supports PoC (Power over cable) allowing for power to be distributed alongside audio and video over the cat.6 cabling. This allows for only one power source being required at the transmitter side, ensuring a minimalist and time-saving setup at the receiver locations.

Please Note: The quoted resolutions are possible with a direct connection between transmitter and receiver using good quality Cat.6 solid core cable. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of maximum distances.

Lindy 70m Cat.6 4x4 HDMI 4K60 Matrix Extender. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6. Connectivity technology: Wired. Operating voltage: 12 V, Input current: 2.5 A. Receiver dimensions (WxDxH): 61 x 88 x 18 mm, Receiver weight: 140 g, Transmitter dimensions (WxDxH): 320 x 100 x 36 mm. Cables included: RS-232

Features
Type	AV transmitter & receiver
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat6
Maximum transfer distance	70 m
Maximum refresh rate	60 Hz
Extended display identification data (EDID)	Yes
Infrared (IR) frequency range	20 - 60 kHz
HDCP version	2.2
Product colour	Black
Ports & interfaces
Connectivity technology	Wired
HDMI version	2.0
Power
Operating voltage	12 V
Input current	2.5 A
Operational conditions
Storage relative humidity (H-H)	20 - 90%
Weight & dimensions
Receiver dimensions (WxDxH)	61 x 88 x 18 mm
Receiver weight	140 g
Transmitter dimensions (WxDxH)	320 x 100 x 36 mm
Transmitter weight	950 g
Packaging content
Cables included	RS-232
Manual	Yes
