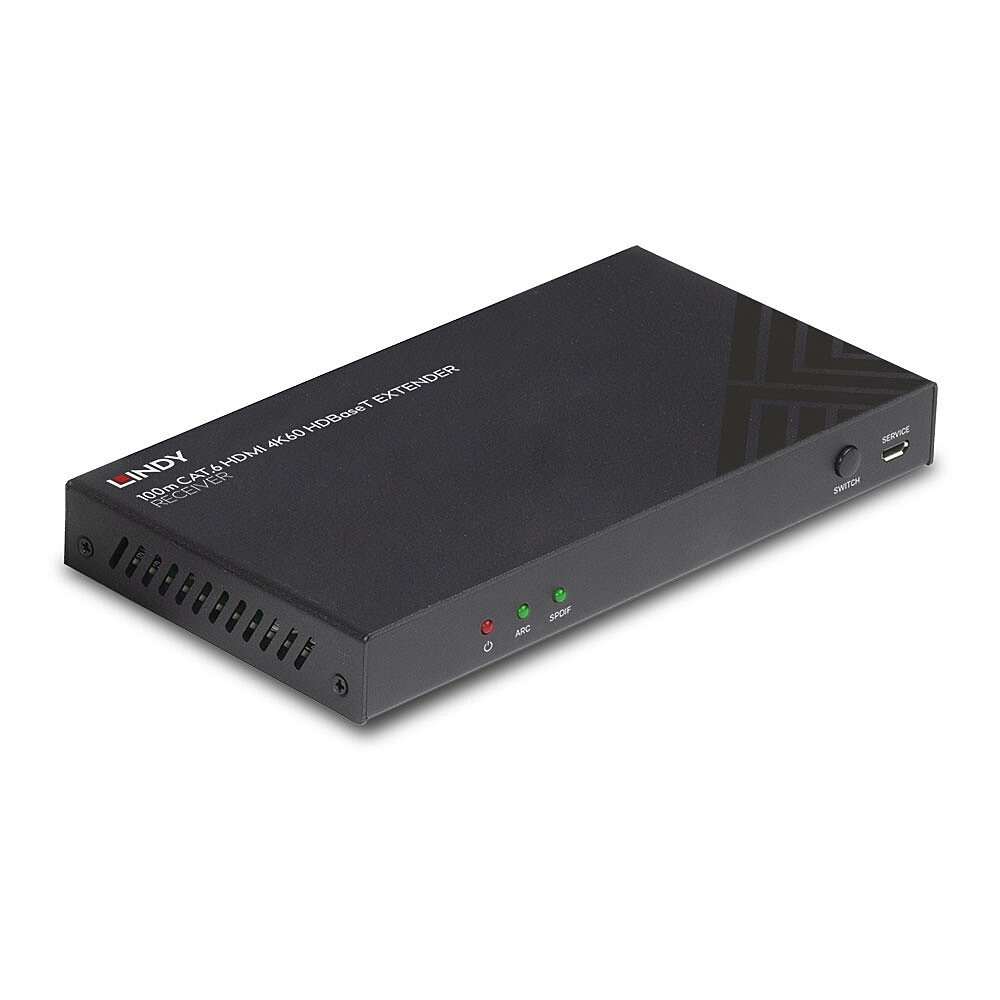

The Lindy 100m Cat.6 HDMI 4K60, Audio, IR and RS-232 HDBaseT Receiver is one part of a high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable. By combining this receiver unit with a compatible Lindy HDBaseT transmitter (i.e 38341), this solution ensures reliable transmission up to 100m.

The following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:100m: 1920x1080@60Hz 4:4:4 8bit70m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit

Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.

ARC support over HDMI allows for audio content to be returned from the display to a connected amplifier or soundbar, while local audio extraction allows for the connection of audio outputs for immersive multi-channel audio. Digital audio embedding at the receiver side can also be used for source audio, which can easily be switching via the push button on the main unit.

PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.

Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. Combined with CEC control, which allows commands from one main remote, this extension system allows for complete and simple control for the user. Bi-directional RS-232 and Ethernet ports also allow for integration into larger control systems, or connection to network switches and hubs with LAN access.

In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.

HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.

HDBaseT and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.able. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of possible distances.

Please Note: This product uses the DSC method of compression to achieve 18G resolutions. If using another 18G HDBaseT product combined with this, please ensure both products support the same compression type.

Lindy 100m Cat.6 HDMI 4K60, Audio, IR and RS-232 HDBaseT Receiver. Type: AV receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6. Connectivity technology: Wired, Fiber optic connector: TOSLINK. Operating voltage: 24 V, Output current: 1 A. Width: 163 mm, Depth: 90 mm, Height: 16 mm. Quantity per pack: 1 pc(s), Package width: 220 mm, Package depth: 70 mm

Features
Type	AV receiver
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat6
Chipset	VS2310TX-A1
EDID management	Yes
CEC pass-through	Yes
Infrared (IR) frequency range	20 - 60 kHz
HDCP version	2.2
Product colour	Black
HDBaseT certified	Yes
Certification	CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Ports & interfaces
Connectivity technology	Wired
RJ-45 input ports	1
Number of HDMI outputs	1
Fiber optic connector	TOSLINK
3.5 mm (1/8-inch) out	Yes
Power
Operating voltage	24 V
Output current	1 A
Operational conditions
Operating relative humidity (H-H)	20 - 90%
Weight & dimensions
Width	163 mm
Depth	90 mm
Height	16 mm
Weight	380 g
Packaging data
Quantity per pack	1 pc(s)
Package width	220 mm
Package depth	70 mm
Package height	130 mm
Package weight	800 g
Packaging content
AC adapter included	Yes
Cables included	AC, IR
Manual	Yes
Mounting brackets included	Yes
