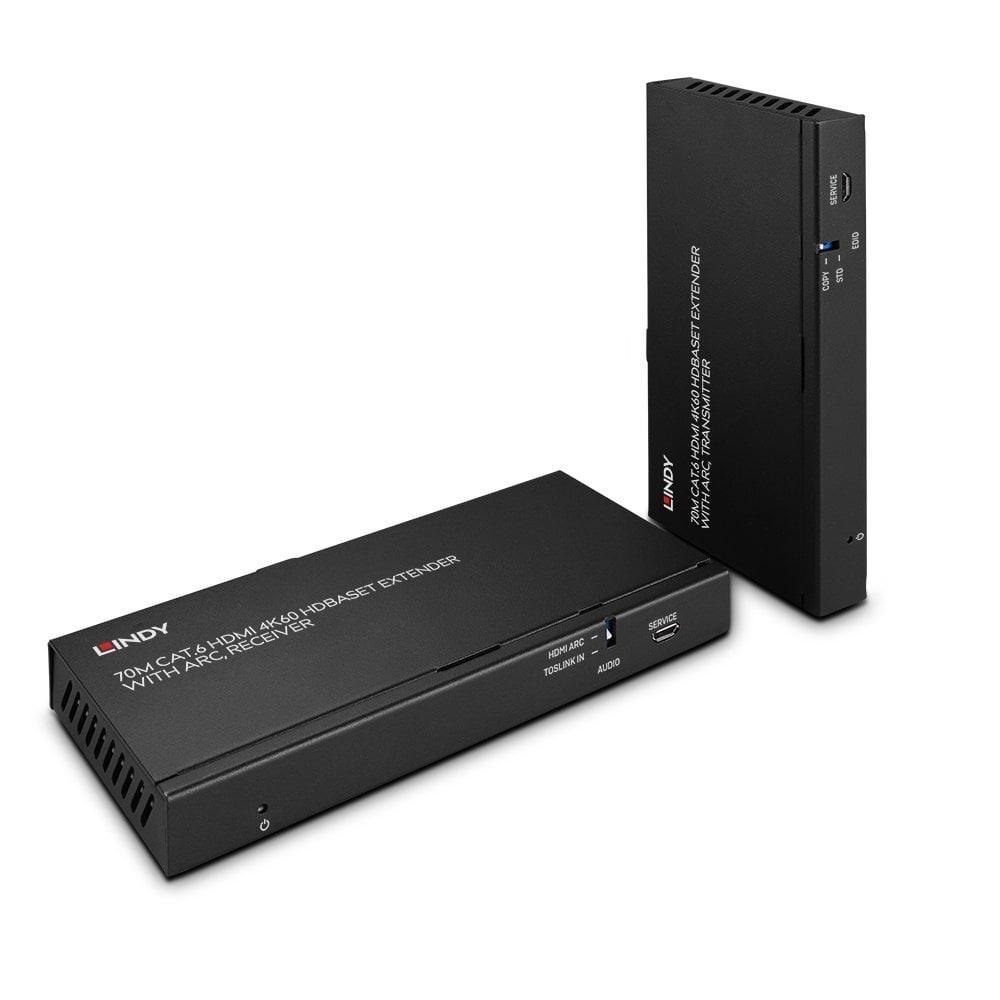

The Lindy 70m Cat.6 HDMI 4K60, Audio, IR and RS-232 HDBaseT Extender is a complete end to end high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable.

The following distance and resolution combinations are possible when using high quality Cat.6 U/UTP or F/UTP cable:70m: 3840x2160@60Hz 4:4:4 8bit / 4:2:2 12bit

Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.

ARC support over HDMI allows for audio content to be returned from the display to a connected amplifier or soundbar, while local audio extraction allows for the connection of audio outputs for immersive multi-channel audio. Digital audio embedding at the receiver side can also be used for source audio, which can easily be switching via the dip-switch on the receiver unit.

PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter or receiver unit. Ideal for example when power outlets are limited at the receiver end of the installation.

Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side. This extension system allows for complete and simple control for the user providing also RS-232 port via terminal block.

In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.

HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.

HDBaseT and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance.

Please Note: the quoted lengths and resolutions are possible with a direct connection between Transmitter and Receiver using good quality Cat.6 or above cable. Using a different cable type, introducing couplers, wall plates or patch panels may result in a reduction of possible distances.

Lindy 70m Cat.6 HDMI 4K60, Audio, IR and RS-232 HDBaseT Extender with ARC. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6. Connectivity technology: Wired, Digital audio optical input type: TOSLINK, Digital audio optical output type: TosLink. Power requirements: 24VDC 1A. Width: 140 mm, Depth: 65 mm, Height: 18 mm. Quantity per pack: 1 pc(s), Package width: 245 mm, Package depth: 75 mm

Features
Type	AV transmitter & receiver
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat6
Chipset	VS010-A0
Maximum refresh rate	60 Hz
Bidirectional	Yes
Infrared (IR) frequency range	20 - 60 kHz
HDCP version	2.2
Product colour	Black
Certification	California Proposition 65
Ports & interfaces
Connectivity technology	Wired
RJ-45 input ports	1
RJ-45 output ports	1
HDMI version	2.0
Digital audio optical input type	TOSLINK
Digital audio optical output type	TosLink
3.5 mm (1/8-inch) out	Yes
DC-in jack	Yes
Power
Power requirements	24VDC 1A
Operational conditions
Operating relative humidity (H-H)	20 - 90%
Weight & dimensions
Width	140 mm
Depth	65 mm
Height	18 mm
Weight	760 g
Packaging data
Quantity per pack	1 pc(s)
Package width	245 mm
Package depth	75 mm
Package height	185 mm
Package weight	940 g
Package type	Box
Packaging content
Manual	Yes
Packaging content	HDBaseT HDMI Extender, Transmitter HDBaseT HDMI Extender, Receiver IR Emitter Cable, 1.5m IR Receiver Cable, 1.5m 4 x Mounting Ears & 8 x Screws 2 x 3-Pin Terminal Block Multi-country Power Supply (UK, EU, US & AUS) Lindy Manual
