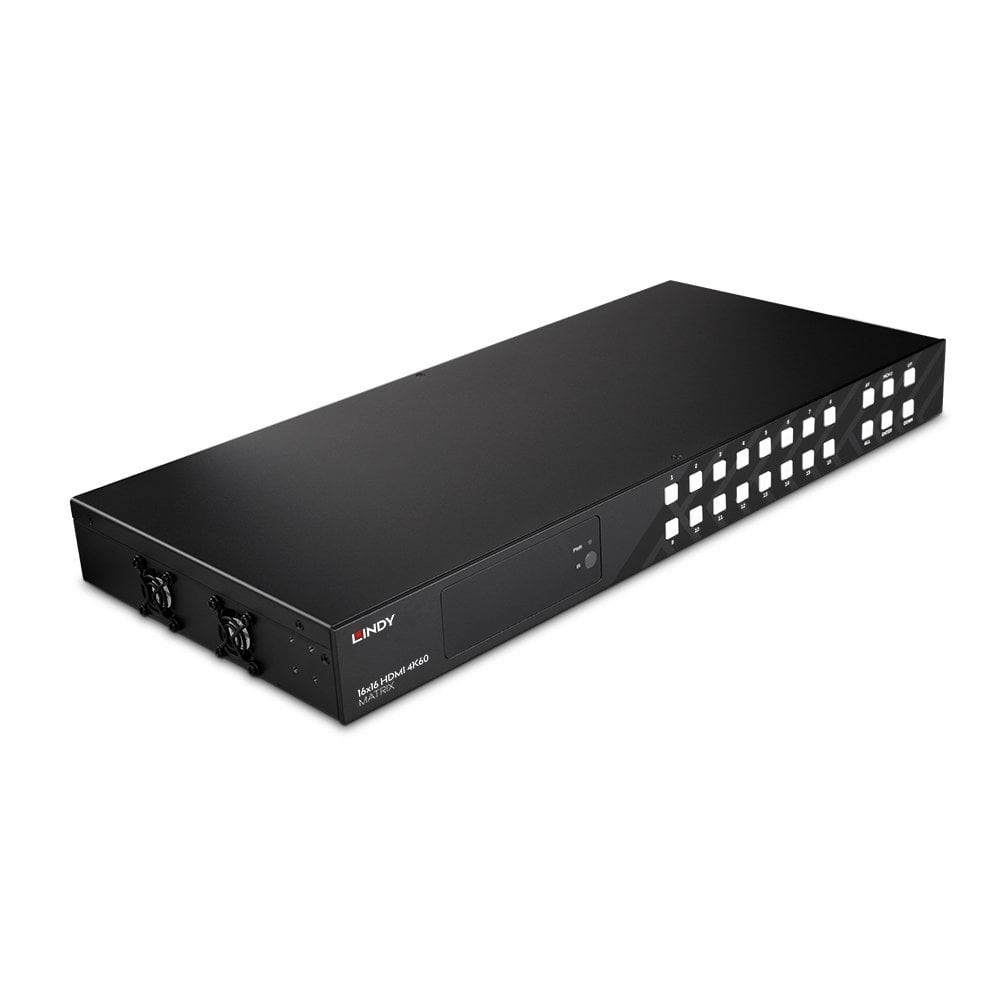

Matrix Switches are premium solutions for distributing content from multiple source devices to multiple displays. The Lindy 16x16 HDMI 4K60 Matrix supports HDMI 2.0b 18G signals, allowing for the transmission of clear 4K Ultra HD 60Hz resolutions. Additional support for High Dynamic Range ensures video content is displayed with enhanced brightness, greater contrasts and a much wider colour gamut, perfect for digital signage displays in retail, creating informational multi-display setups in education, or distributing content in commercial installations such as cinemas. HDCP 2.2 support ensures there are no issues with a variety of 4K content when connected to source devices including set top boxes, Blu-Ray players and 4K HDR media players.

As well as HDMI audio pass-through, individual Coax ports allow for a separate connection of digital speaker systems and amplifiers, creating immersive audio experiences to compliment the video content. The Audio Return Channel (ARC) feature allows audio to be sent from a TV to an audio system or soundbar over the same HDMI cable that is used to send video to the TV. This eliminates the need for a separate audio cable and simplifies the setup process.

The Matrix also features a downscale function for each output port from 4K to Full HD, making installations with older displays hassle free while always ensuring the viewer receives the optimum picture from their display.

This Matrix can be easily controlled via push button switching on the unit, while the included remote control and IR extension also allows the user to have better control over multiple videos and displays, great for trade shows, training presentations or sales demonstrations.

Lindy 16x16 HDMI 4K60 Matrix. Video port type: HDMI, Video out: HDMI, Headphone connectivity: 3.5 mm. Maximum resolution: 3840 x 2160 pixels, Product colour: Black, Housing material: Metal. AC input voltage: 24 V, Input current: 3.75 A. Width: 440 mm, Depth: 200 mm, Height: 45 mm. Quantity per pack: 1 pc(s), Package width: 510 mm, Package depth: 328 mm

Ports & interfaces
Video ports quantity	32
Video port type	HDMI
Video out	HDMI
HDMI version	2.0
Ethernet LAN (RJ-45) ports	1
Audio ports quantity	16
Headphone connectivity	3.5 mm
DC-in jack	Yes
Features
Product colour	Black
Housing material	Metal
Maximum resolution	3840 x 2160 pixels
HD type	4K Ultra HD
Colour depth	8 bit
Maximum refresh rate	60 Hz
HDCP version	2.2
Certification	CE, UKCA, FCC, RoHS & REACH, CP65
Network
Ethernet LAN	Yes
Power
AC input voltage	24 V
Input current	3.75 A
Weight & dimensions
Width	440 mm
Depth	200 mm
Height	45 mm
Weight	2.83 kg
Packaging data
Quantity per pack	1 pc(s)
Package width	510 mm
Package depth	328 mm
Package height	95 mm
Package weight	4.06 kg
Package type	Box
Packaging content
IR receiver included	Yes
AC adapter included	Yes
Operational conditions
Operating temperature (T-T)	-10 - 45 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
