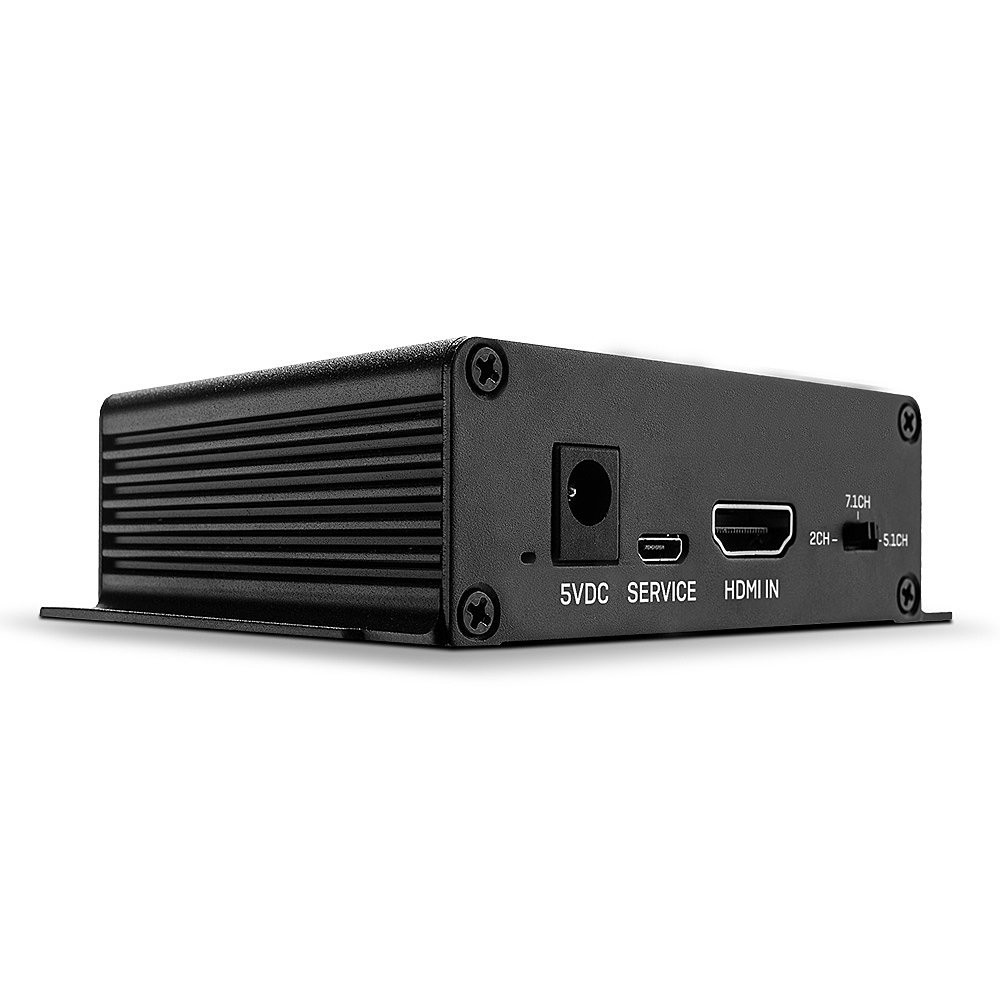

The Lindy HDMI 18G Audio Extractor allows the user to seamlessly extract both digital and analogue audio from an HDMI source and output to an audio device in either digital or analogue formats, while sending the video signal to a 4K UHD display or projector. This is a perfect solution for connecting non-HDMI AV receivers or analogue 2-channel speaker setups to an HDMI source device, while also being ideal for extracting audio and video to a display that requires separate speakers.

This extractor supports the full 18G HDMI 2.0 bandwidth to display 4K UHD 4096x2160@60Hz resolutions with additional pass-through support for the REC.2020 colour space that covers the wider colour gamut required for HDR (high dynamic range) content, for enhanced contrast and more lifelike colour. Featuring support for HDCP 2.2, this is ideal for use with the latest source devices including set-top boxes, games consoles and media players.

With support for multi-channel audio including Dolby Digital 5.1 via Optical and analogue stereo via RCA connections, this device will ensure an impressive three-dimensional surround sound performance to compliment films, games and music when connected to the audio device. HDMI High Bit Rate audio pass through also allows high-resolution audio files to playback without compression for a flawless music listening experience. The RCA analogue connections ensure 2-channel speaker set ups can also be connected to the extractor, providing a versatile solution for home AV installations as well as applications in retail stores and meeting rooms where separate non-HDMI audio systems are used

The extractor also includes two mounting brackets, for fixing to surfaces to provide a secure, tidy installation.

Lindy HDMI 4K60 Audio Extractor. USB connector type: Micro-USB B. Operating voltage: 5 V. Width: 64 mm, Depth: 104.4 mm, Height: 28.3 mm. Package width: 205 mm, Package depth: 57 mm, Package height: 151 mm

Inputs
HDMI in	1
Outputs
Number of HDMI outputs	1
Technical details
Compliance certificates	RoHS
Certification	CE, FCC, REACH
Power
Operating voltage	5 V
Weight & dimensions
Width	64 mm
Depth	104.4 mm
Height	28.3 mm
Weight	175 g
Logistics data
Harmonized System (HS) code	85176990
