Extends DisplayPort 1.4 UHD signals over distances up to 35m
Supports resolutions up to 7680x4320@60Hz 4:2:0 8bit and HDR
Five level cascade functionality allows the extension of 8K UHD content up to 32m
Compact form factor for discreet installation in presentation, conference and education spaces
2-year warranty

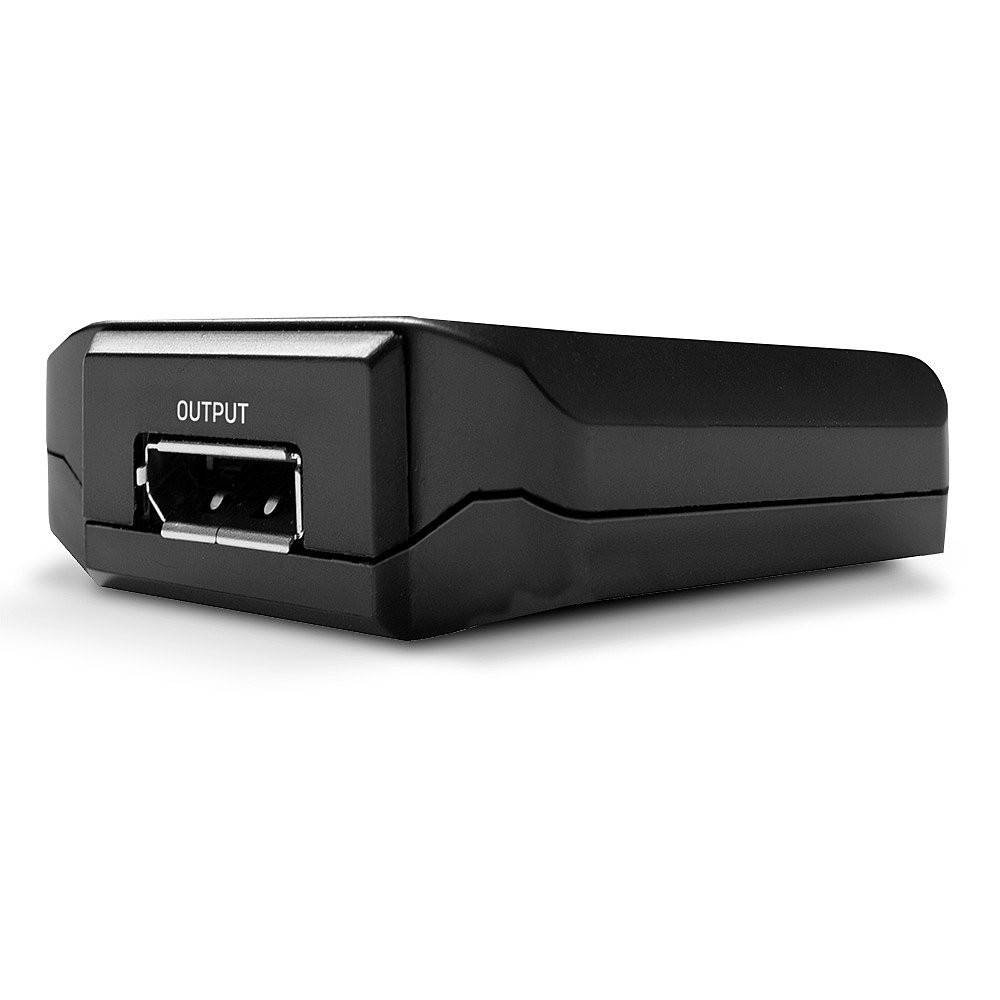

The Lindy DisplayPort 1.4 Repeater is an active solution for amplifying and extending high-resolution 8K UHD DisplayPort signals up to distances of 12m, or up to five repeaters can be cascaded together to extend 8K signals up to 32m. 4K UHD and Full HD resolutions can also be extended at distances up to 35m using a single repeater.

Support for 8K UHD resolutions and HDR are combined to create an exceptional viewing experience with enhanced brightness, greater contrasts and a much wider colour gamut. HDMI and multi-channel audio formats such as Dolby Atmos, Dolby TrueHD & DTS-X help to create a true sense of immersion when coupled with UHD resolutions and high refresh rates up to 144Hz in PC gaming and other applications. HDCP and DPCP 1.0 support ensures maximum compatibility with copy protected digital content from streaming services or media players.

By amplifying an input signal, the repeater overcomes the limitations of passive copper cables and can extend DisplayPort signals without errors over greater distances than traditional cables.

The repeater’s small form factor allows it to be easily hidden for discreet installations and its versatility ensures it can seamlessly integrate into many applications. Support for various resolutions, refresh rates and transmission distances make this repeater perfect for CAD, PC gaming, video & photo editing applications, or in collaborative environments such as presentation, conference and education spaces.

Lindy 12m DisplayPort 1.4 Repeater. Type: AV repeater, Maximum resolution: 7680 x 4320 pixels, Maximum transfer distance: 35 m. Connectivity technology: Wired. Operating voltage: 5 V, Input current: 1 A. Width: 54 mm, Depth: 54 mm, Height: 19 mm. Package width: 55 mm, Package depth: 100 mm, Package height: 140 mm

Features
Type	AV repeater
Maximum resolution	7680 x 4320 pixels
Maximum transfer distance	35 m
Maximum refresh rate	60 Hz
Material	Plastic
Product colour	Black
Certification	CE, FCC, REACH & California Proposition 65
Ports & interfaces
Connectivity technology	Wired
DisplayPorts out	1
DC-in jack	Yes
Power
Operating voltage	5 V
Input current	1 A
Operational conditions
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	54 mm
Depth	54 mm
Height	19 mm
Weight	32 g
Packaging data
Package width	55 mm
Package depth	100 mm
Package height	140 mm
Package weight	168 g
Packaging content
AC adapter included	Yes
Manual	Yes
