- New
Lindy 120m Cat.6 HDMI and USB KVM Extender
- Extends HDMI and USB up to 120m over Cat.6 network cable
- Supports HDMI resolutions up to Full HD
- HDMI loop-out port to connect one additional display on the transmitter
- Supports PoC (Power over Cable), requiring a power supply connection from only one side of the installation
- 2 Year Warranty
Secure Payments
Secure payment methods
Shipping Policy
Free Delivery On Standard UK Mainland Orders **Over £500
Returns Policy
Returns and exchanges

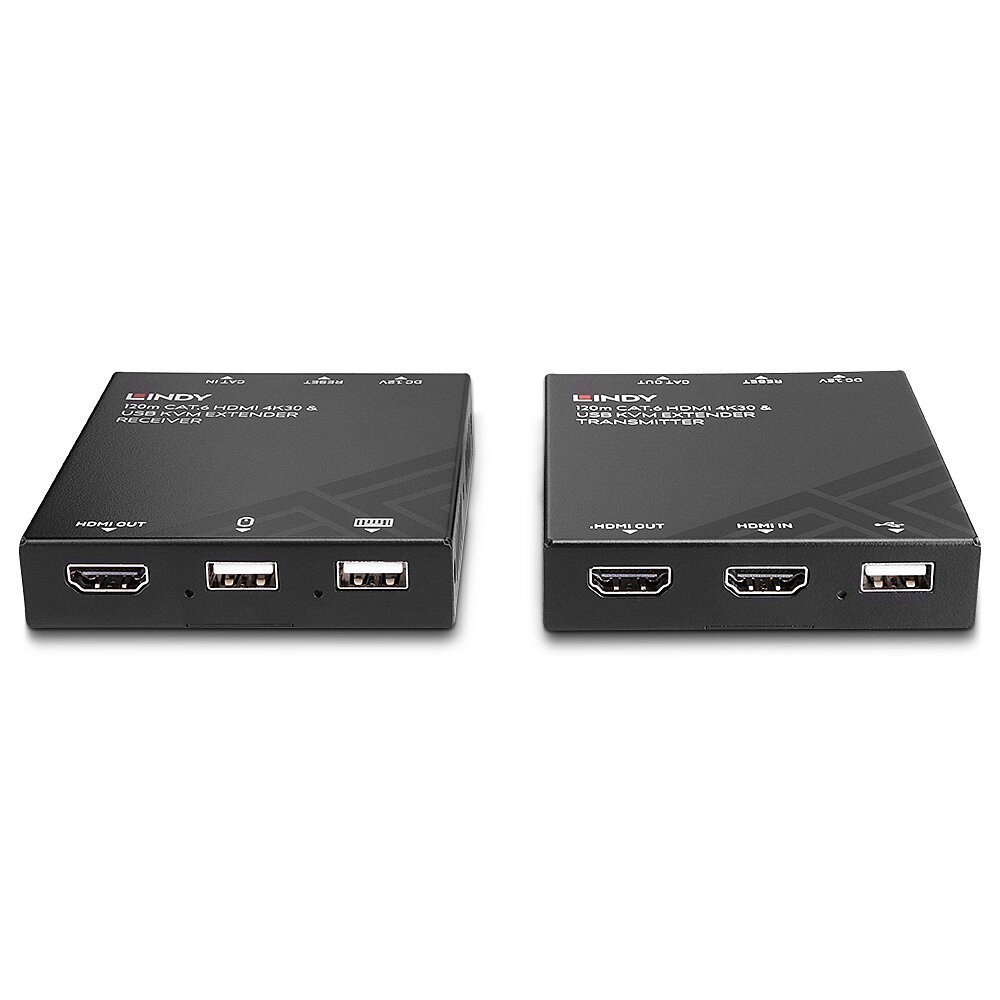

The Lindy 120m Cat.6 HDMI and USB KVM Extender is a complete end to end reliable solution to control a source device such as a PC from a single keyboard, mouse and display over long distances via Cat.6 network cable.
Supporting resolutions up to Full HD 1920x1080, ideal for high-performance KVM applications and also for creating eye-catching digital signage in retail or engaging setups in larger conference rooms or lectures halls.
PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.
USB ports allow for a mouse and keyboard to be connected to the receiver to control a USB source device such as a PC or laptop. The extender features an HDMI loop-through output on the transmitter which allows for simultaneous viewing using both the local and remote displays. This versatility provides a suitable solution for use in various scenarios such as educational presentation systems, home cinema, entertainment systems, or trade shows.
Please note: This product is not designed to be used in conjunction with active network equipment and must only be used in a point to point connection.
Lindy 120m Cat.6 HDMI and USB KVM Extender. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 120 m. Transmitter video port type: HDMI. Receiver local video port type: HDMI, Receiver local keyboard/mouse port type: USB. USB port type: Micro-USB A. Transmitter width: 9.5 cm, Transmitter depth: 1.6 cm, Transmitter height: 8 cm
Supporting resolutions up to Full HD 1920x1080, ideal for high-performance KVM applications and also for creating eye-catching digital signage in retail or engaging setups in larger conference rooms or lectures halls.
PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.
USB ports allow for a mouse and keyboard to be connected to the receiver to control a USB source device such as a PC or laptop. The extender features an HDMI loop-through output on the transmitter which allows for simultaneous viewing using both the local and remote displays. This versatility provides a suitable solution for use in various scenarios such as educational presentation systems, home cinema, entertainment systems, or trade shows.
Please note: This product is not designed to be used in conjunction with active network equipment and must only be used in a point to point connection.
Lindy 120m Cat.6 HDMI and USB KVM Extender. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 120 m. Transmitter video port type: HDMI. Receiver local video port type: HDMI, Receiver local keyboard/mouse port type: USB. USB port type: Micro-USB A. Transmitter width: 9.5 cm, Transmitter depth: 1.6 cm, Transmitter height: 8 cm
| Features | |
| Type | Transmitter & receiver |
| Connectivity technology | Wired |
| Maximum transfer distance | 120 m |
| Cable types supported | Cat6 |
| Product colour | Black |
| Material | Metal |
| Certification | CE, UKCA, FCC, RoHS, REACH & California |
| Transmitter | |
| Transmitter video port type | HDMI |
| Receiver | |
| RJ-45 ports quantity (receiver) | 1 |
| Ports & interfaces | |
| USB port type | Micro-USB A |
| HDMI version | 1.4 |
| RJ-45 ports quantity | 1 |
| Weight & dimensions | |
| Transmitter width | 9.5 cm |
| Transmitter depth | 1.6 cm |
| Transmitter height | 8 cm |
| Transmitter weight | 400 g |
| Packaging data | |
| Package width | 225 mm |
| Package depth | 176 mm |
| Package height | 53 mm |
| Package weight | 590 g |
| Technical details | |
| Weight | 400 g |
| Logistics data | |
| Harmonized System (HS) code | 84733080 |
39381
61 Items
Data sheet
- Product colour
- Black
- Maximum resolution
- 3840 x 2160 pixels
- Material
- Metal
- Connectivity technology
- Wired
- Type
- Transmitter & receiver
- Maximum transfer distance
- 120 m
- Certification
- CE, UKCA, FCC, RoHS, REACH & California
- Operating temperature (T-T)
- -5 - 55 °C
- Storage temperature (T-T)
- -25 - 70 °C
- Weight
- 400 g
- Package width
- 225 mm
- Package depth
- 176 mm
- Package weight
- 590 g
- Harmonized System (HS) code
- 84733080
- Operating relative humidity (H-H)
- 10 - 90%
- Package height
- 53 mm
- Cable types supported
- Cat6
- Dimensions (WxDxH)
- 95 x 80 x 16 mm
- Receiver local keyboard/mouse port type
- USB
- RJ-45 ports quantity (receiver)
- 1
- Transmitter width
- 9.5 cm
- Transmitter depth
- 1.6 cm
- Transmitter height
- 8 cm
- Transmitter weight
- 400 g
- RJ-45 ports quantity
- 1
- HDMI version
- 1.4
- Transmitter video port type
- HDMI
- USB port type
- Micro-USB A
- Receiver local video port type
- HDMI
Specific References
- EAN13
- 4002888393812
- MPN
- 39381
