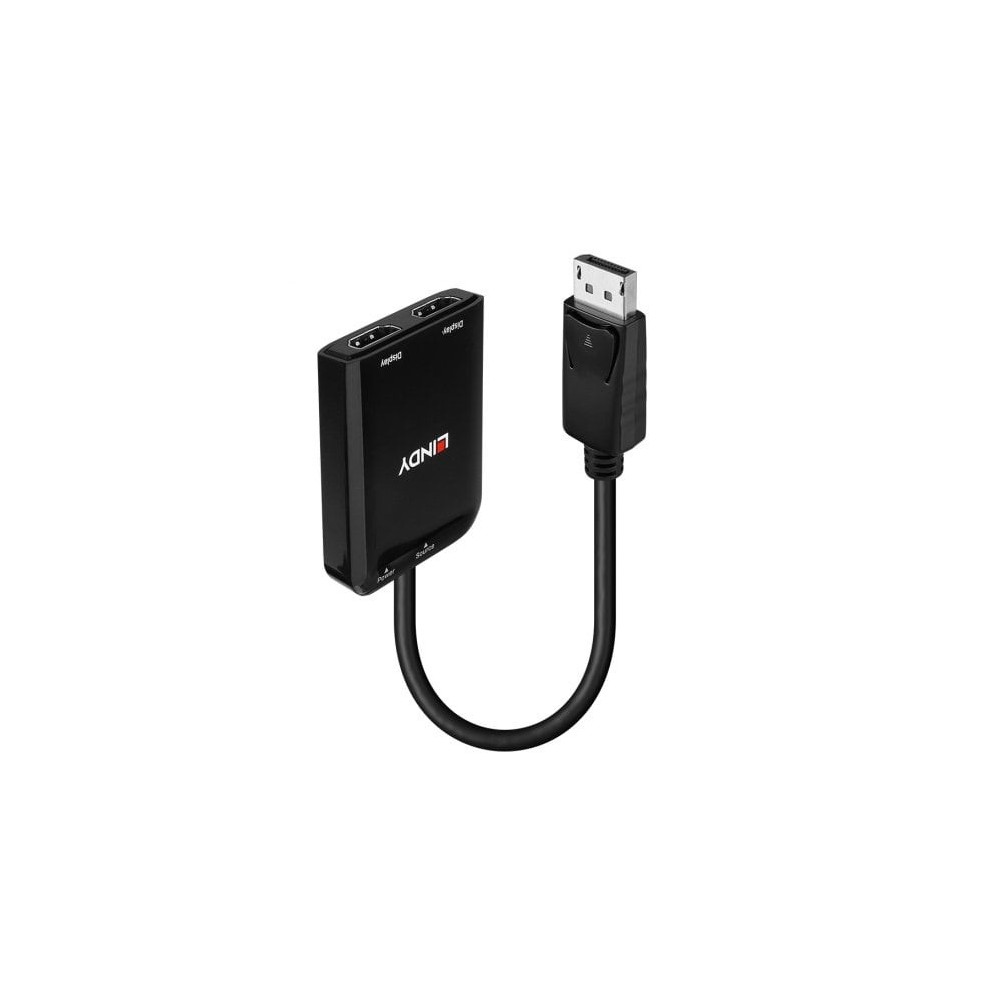

The Lindy DP to 2 Port HDMI MST Hub is an ideal solution for expanding or duplicating DisplayPort signals across 2 HDMI monitors or TVs. MST hubs allow for the connection of a single mDP source device including computers, laptops or notebooks to 2 separate HDMI displays, while also providing the ability to visualise content in multiple ways. Signals can be expanded across both displays to show large scale spreadsheets, create immersive panoramic gaming experiences or eye-catching digital signage in retail. Content can also be, independently shown on either display, great for developing a productive, multi-tasking working environment, or duplicated on both displays for use in hospitality, retail or educational scenarios.

With support up to 2 x 3840x2160@30Hz 4:4:4 8bit, content can be viewed in ultra-realistic quality, ideal for applications that require a high resolution output such as graphic design, while compatibility with a variety of graphics cards including AMD Eyefinity, ensures issue free multi-screen playback.

This active MST Hub supports DP++ and does not require the source or graphics card to support DP++ to provide dual-mode signals

Please note: This hub is not compatible with Apple products

Lindy DisplayPort to 2 Port HDMI MST Hub. Connector 1: DisplayPort, Connector 2: 2 x HDMI, Connector 1 gender: Male. Certification: CE, UKCA, FCC, RoHS and REACH. Width: 254 mm, Depth: 49 mm, Height: 10 mm. Package width: 174 mm, Package depth: 194 mm, Package height: 10 mm. Quantity per pack: 1 pc(s)

Features
Connector 1	DisplayPort
Connector 2	2 x HDMI
Connector 1 gender	Male
Connector 2 gender	Female
Connector 1 form factor	Straight
Connector 2 form factor	Straight
HDMI version	2.0
HDCP	Yes
HDCP version	1.4
DisplayPort version	1.2
Maximum resolution	3840 x 2160 pixels
Supported graphics resolutions	3840 x 2160
Data transfer rate	21.6 Gbit/s
Maximum refresh rate	30 Hz
Audio Return Channel (ARC)	Yes
Supported audio channels	7.1
Operational conditions
Operating temperature (T-T)	-20 - 40 °C
Storage temperature (T-T)	-40 - 80 °C
Operating relative humidity (H-H)	5 - 90%
Certificates
Certification	CE, UKCA, FCC, RoHS and REACH
Weight & dimensions
Width	254 mm
Depth	49 mm
Height	10 mm
Packaging data
Package width	174 mm
Package depth	194 mm
Package height	10 mm
Package weight	59 g
Package type	Polybag
Packaging content
Quantity per pack	1 pc(s)
