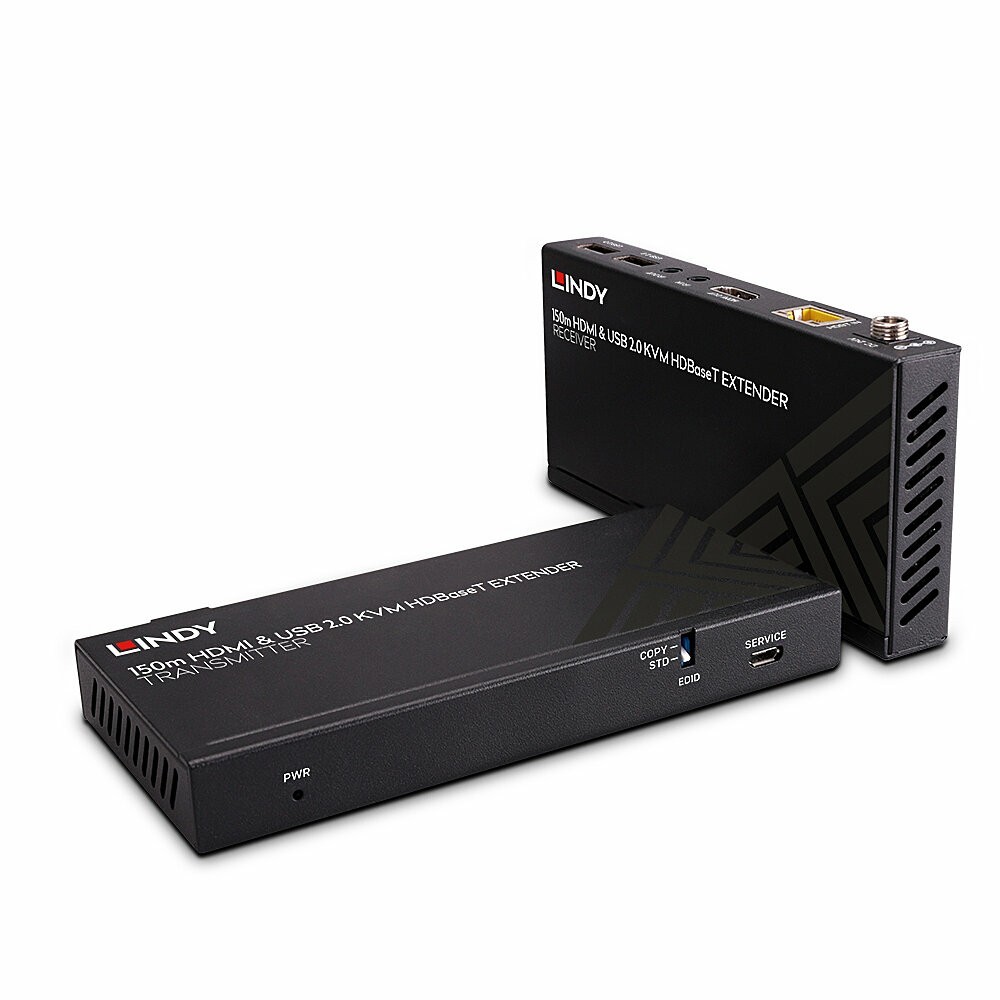

The Lindy 150m Cat.6 HDMI 4K60, USB 2.0 & IR HDBaseT KVM Extender is a complete end to end high performance, reliable solution for extending HDMI signals over long distances via Cat.6 network cable.

Supporting resolutions up to 4K Ultra HD, video can be viewed in stunning clarity, while additional support for HDR (High Dynamic Range) allows content to be displayed with enhanced brightness, greater contrasts of blacks and whites and a much wider colour gamut. This provides a reliable solution for creating eye-catching digital signage in retail, immersive displays at events or engaging setups in larger conference rooms or lectures halls.

PoC (Power over Cable) functionality provides additional flexibility. This allows power to be supplied alongside data through Cat.6 network cable in a point-to-point connection between the transmitter and receiver, meaning only a single power supply is required at the transmitter unit. Ideal when power outlets are limited at the receiver end of the installation.

Setting up HDBT mode, this extender supports USB 2.0 devices like mouse, keyboard, and other peripherals to be connected to the receiver to control a source device such as a PC or laptop or for data transfer while in Long Reach mode only USB HID devices are supported. Featuring bi-directional IR ports at both sides of the setup, the source equipment can be easily controlled from the display side, and the display can also be controlled from the HDMI source side.

In addition, the power supply is connected via a screw type DC jack, providing a more secure and reliable connection, perfect for professional installations where accidental disconnections could create a major issue.

HDBaseT is a globally recognised standard for high quality distribution of AV content and other technologies, including power and control, over longer distances via low cost Cat.6 or above cable.

HDBaseT_ and the HDBaseT Alliance logo are trademarks of the HDBaseT Alliance. Using a different cable type, introducing wall plates, couplers or patch panels will result in a reduction of possible distances.

Lindy 150m Cat.6 HDMI 4K60, USB 2.0 & IR HDBaseT KVM Extender. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 150 m. Transmitter local video port type: HDMI. Receiver local video port type: HDMI. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz, Power consumption (transmitter) (max): 13.2 W. Transmitter width: 14 cm, Transmitter depth: 6.5 cm, Transmitter height: 1.8 cm

Features
Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	150 m
Cable types supported	Cat6
Maximum digital resolution	3840 x 2160 pixels
Maximum refresh rate	60 Hz
Colour depth	12 bit
Supported resolutions	3840 x 2160 1920 x 1080
Product colour	Black
Material	Metal
Chipset	VS010-A0
Transmitter
Transmitter local video port	Yes
Transmitter local video port type	HDMI
Transmitter USB Type-B ports quantity	1
Receiver
Receiver USB Type-A ports quantity	2
Ports & interfaces
HDMI version	2.0
Remote (IR) output	2
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (transmitter) (max)	13.2 W
Power consumption (receiver) (max)	13.2 W
DC-in jack	Yes
Weight & dimensions
Transmitter width	14 cm
Transmitter depth	6.5 cm
Transmitter height	1.8 cm
Transmitter weight	790 g
Receiver width	14 cm
Receiver depth	6.5 cm
Receiver height	1.8 cm
Receiver weight	790 g
Packaging data
Package width	245 mm
Package depth	185 mm
Package height	75 mm
Package weight	1.02 kg
Packaging content
Cables included	IR, USB Type-A to USB Type-B
Manual	Yes
Screws included	Yes
Sustainability
Sustainability compliance	Yes
Other features
HDCP	Yes
HDCP version	2.2
Extended display identification data (EDID)	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
