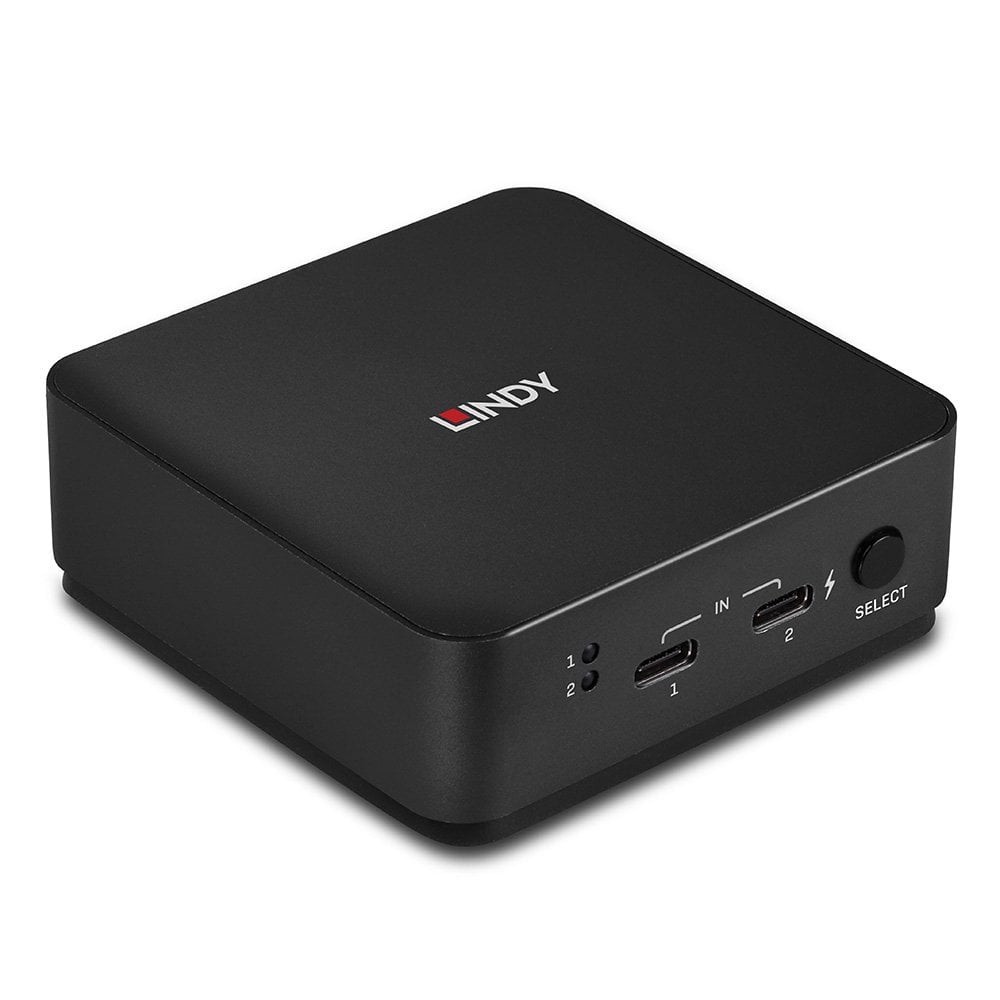

The Lindy 2 Port Type C, Dual HDMI 4K60 KVM Switch is a compact solution for providing access and control over two Type C equipped devices with from a console with keyboard, mouse and two displays. It's an Ideal solution for flexible, plug and play workstations, allowing users to control multiple laptops, or a single laptop and another Type C device such as a mobile phone or tablets with Type C DisplayPort Alt Mode interface.

Support for Ultra HD resolutions up to 4K30Hz connecting both outputs, and 4K60Hz connecting one to ensure optimum image quality, perfect for high fidelity graphics in gaming setups, video editing or dual system control workstations. Additional support for High-Dynamic Range ensures video content can be seen with enhanced brightness, greater contrasts, and a much wider colour gamut. MST and SST functions allow the connection of two displays with extended desktop or in mirror mode while additional USB peripherals can be connected via the 2 ports USB 2.0.

Connecting an additional Type C power supply (optional, not included) ensures host device on port 2 can be powered and charged through the 100W Type C Power Delivery 3.0 input port. Perfect when mains power outlets are in short supply, and improves cable management for minimalist installations.

This device switches automatically when only one active source is connected, while when multiple devices are connected, switching is also possible by pushing the select button on the front panel for simple and reliable control, great for both professional and first-time users.

Please Note: Type C sources must support DisplayPort Alternate mode for video output, smartphones and tablets can only display a mirror image. Fast Role Swap feature is not supported.

Lindy 2 Port Type C, Dual HDMI 4K60 KVM Switch. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels. Product colour: Grey, Housing material: Metal. Power source: USB, Input voltage: 7.5 V, USB Power Delivery up to: 100 W. Compliance certificates: CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA

Ports & interfaces
Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
HDMI version	2.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Console ports	USB C
USB 2.0 Type-A hub ports quantity	2
USB connector type	USB Type-A, USB Type-C
Performance
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Automatic switching	Yes
HDCP	Yes
HDCP version	2.2
Design
Rack mounting	No
Product colour	Grey
Housing material	Metal
LED indicators	Yes
Push button	Yes
Display
Built-in display	No
Power
Power source	USB
Input voltage	7.5 V
USB Power Delivery up to	100 W
Sustainability
Compliance certificates	CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA
Sustainability compliance	Yes
Operational conditions
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-15 - 60 °C
Operating relative humidity (H-H)	5 - 85%
Storage relative humidity (H-H)	5 - 85%
Weight & dimensions
Width	78 mm
Depth	78 mm
Height	26.8 mm
Weight	230 g
Packaging data
Package width	183 mm
Package depth	53 mm
Package height	138 mm
Package weight	330 g
Package type	Box
Packaging content
Cables included	USB Type-C
Manual	Yes
