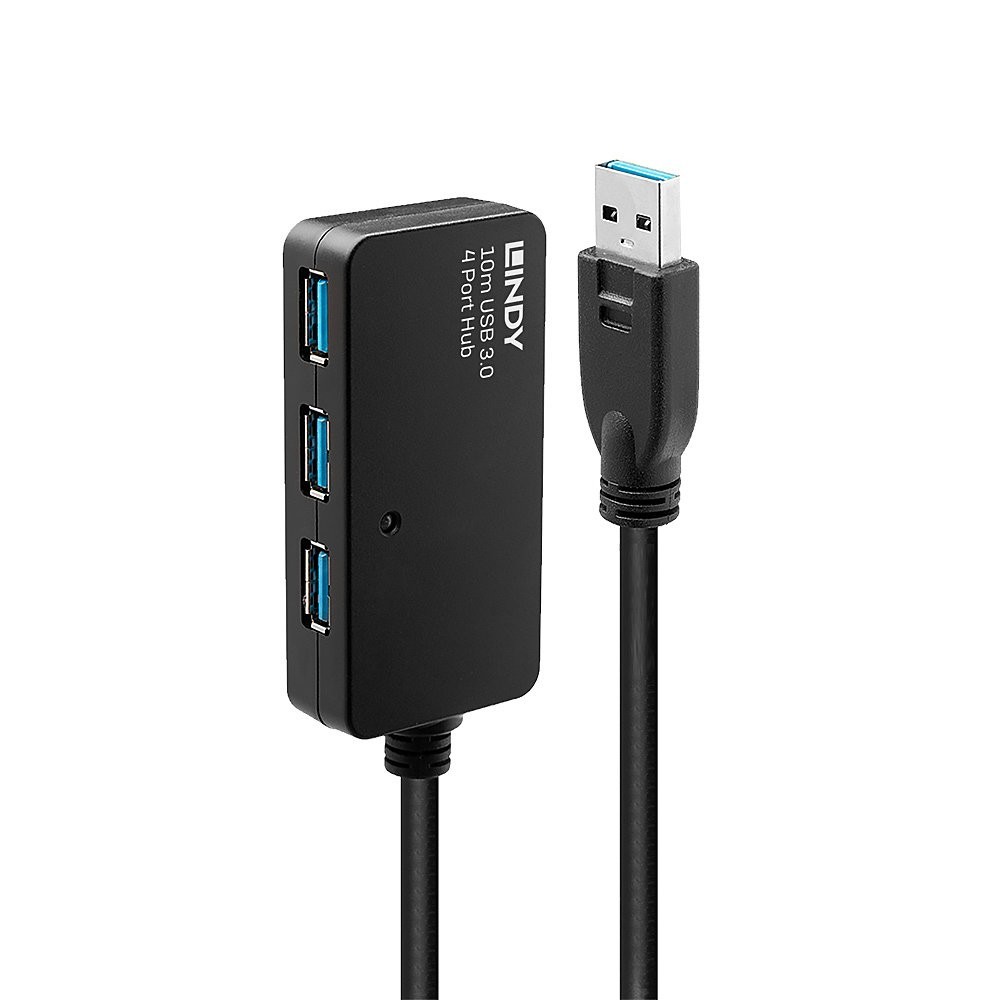

The Lindy USB Active Extension Hub Pro is a high-performance hub with active cable that allows access to four USB 3.0 SuperSpeed peripherals over long distances. With support for data transfer speeds of up to 5Gbps this extension hub is perfect for transferring large data volumes quickly and reliably.

This hub features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.

This 10m extension hub can be used on its own or as part of the Lindy USB 3.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and this Active Extension Pro hub. It enables the distribution of USB signals to up to 4 devices at distances of up to 40m (depending on the cable configurations used).

Using this hub as part of the USB 3.0 Active Extension System Pro

If you would like to use this hub as part of combined Lindy USB 3.0 Active Extension System Pro installation, please note the requirements below.

This Active Extension Hub Pro must be installed as the final part of the extension system.

The first unit connected to your computer must always be the USB 3.0 Active Extension Pro 8m (No. 43158) or 15m (No. 43229). Once the first cable is connected, you can cascade additional Extension System Pro cables to extend the distance up to a maximum of 40m.

The final part of the extension can be any cable or hub from the Extension System Pro range.

If you need to extend multiple devices or connect a USB device with high power requirements, you should use the 10m Hub Pro unit with its power supply as the final part of the extension.

Information about USB 3.0, 3.1 and 3.2

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps. USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.

Lindy 10m USB 3.0 Active Extension Pro Hub. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Data transfer rate: 5000 Mbit/s, Product colour: Black, Housing material: Plastic. Power note: 3.5/1.35mm DC. Width: 80 mm, Depth: 38 mm, Height: 15 mm. Quantity per pack: 1 pc(s), Package width: 240 mm, Package depth: 200 mm

Ports & interfaces
Ports quantity	4
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
DC-in jack	Yes
Features
Data transfer rate	5000 Mbit/s
Housing material	Plastic
Plating material	Nickel
Cable jacket material	Polyvinyl chloride (PVC)
Cable diameter	7 mm
Conductor material	Tinned copper
Connector contacts plating	Gold
Bend radius (min)	3.6 cm
Transmission medium	Twisted pair
Nominal attenuation	0.064MHz - 0.08dB 0.256MHz - 0.11dB 0.512MHz - 0.13dB 0.772MHz - 0.15dB 1.0MHz - 0.20dB 4MHz - 0.39dB 8MHz - 0.57dB 12MHz - 0.67dB 24MHz - 0.95dB 48MHz - 1.35dB 96MHz - 1.90dB 200MHz - 3.20dB 400MHz - 5.80dB
Certification	CE, UKCA, FCC, RoHS, REACH, California Proposition 65
Power
Power note	3.5/1.35mm DC
Weight & dimensions
Width	80 mm
Depth	38 mm
Height	15 mm
Weight	790 g
Connector 1 dimensions (WxDxH)	15 x 42 x 8 mm
Packaging data
Quantity per pack	1 pc(s)
Package width	240 mm
Package depth	200 mm
Package height	70 mm
Package weight	900 g
Package type	Box
Packaging content
Manual	Yes
Operational conditions
Operating temperature (T-T)	0 - 50 °C
Operating temperature (T-T)	-20 - 60 °F
Logistics data
Harmonized System (HS) code	84719000
