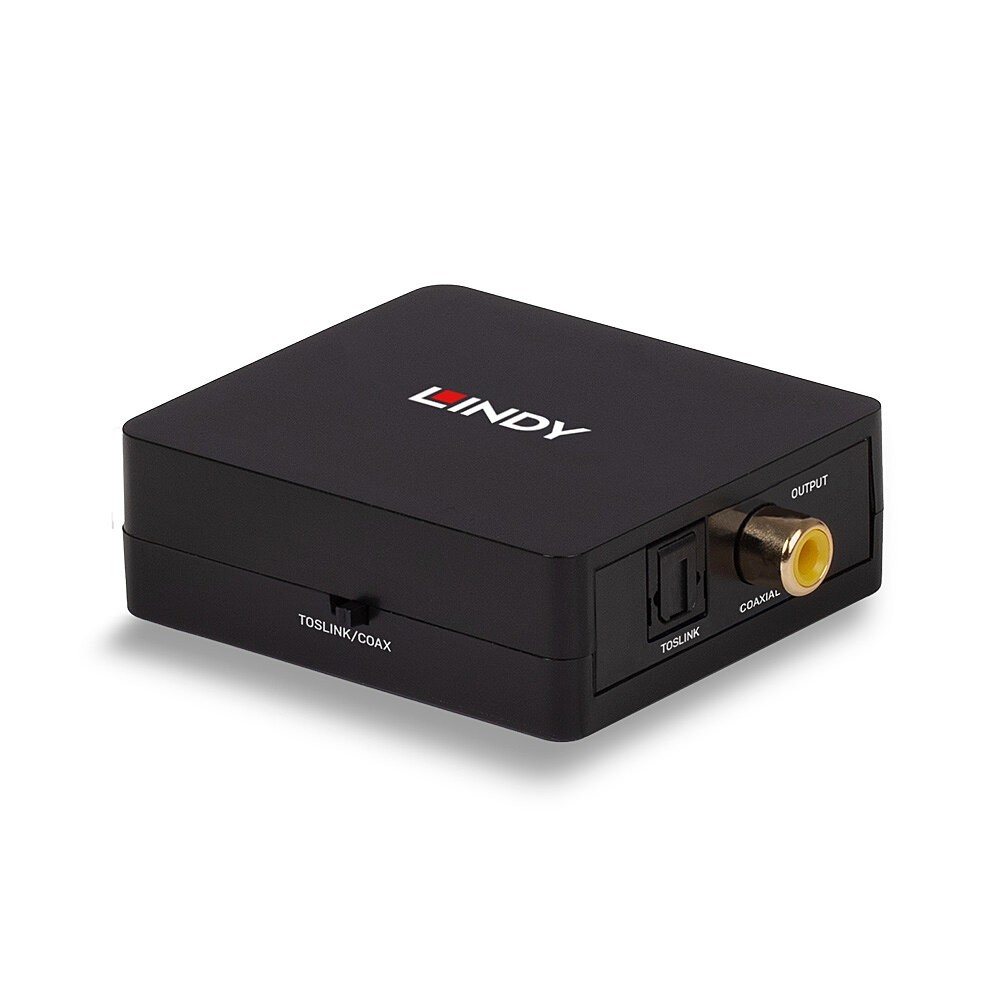

Lindy 2-way Digital SPDIF (Coaxial Toslink) Audio Converter
- Bi-directionally converts digital optical or coaxial SPDIF signals
- Supports digital audio up to 24 bit / 192kHz
- Supports LPCM, Dolby Digital and DTS audio, from 2 to 5.1 channels
- Minimalistic, compact design and seamless functionality
- 2 Year Warranty.
Secure Payments
Secure payment methods
Shipping Policy
Free Delivery On Standard UK Mainland Orders **Over £500
Returns Policy
Returns and exchanges
The Lindy SPDIF Converter and Repeater allows the user to input digital audio through a Coaxial or optical port and output digital audio simultaneously through Coaxial and optical ports, for dual audio functionality, avoiding the need for two separate audio converters, and a high resolution listening experience of movies, games and music.
Featuring Digital Coaxial and Toslink ports as both input and output connections, this converter is perfect for converting Coaxial signals to optical, great for connecting DVD players or legacy games consoles to home cinema receivers or soundbars, or when connecting Blu-Ray players and games consoles to some surround sound systems or amplifiers via Optical to Coaxial conversion. With support for a hi-res sampling frequency of up to 24 bit / 192kHz, music can be heard exactly how the artist and sound engineers intended, with greater detail and clarity, while Dolby Digital and DTS 5.1 channel support also ensures movies are heard with dynamic multi-channel audio, for a true home cinema experience.
The dual input functionality also doubles up as a repeater, great for extending digital audio signals over longer distances that can't be reached using only one digital coaxial or Toslink cable. The converters input selector switch, allowing the input signal to be easily changed provides simple control for both home users and professional installers, while the converter's's 'Plug and Play' functionality ensures minimum hassle connectivity within an audio ecosystem. The converters minimalist, compact design means it can also be hidden out of sight or integrated into current home cinema installations.
Lindy 2-way Digital SPDIF (Coaxial Toslink) Audio Converter. Sample frequencies: 192kHz. Operating voltage: 5 V. Width: 60.5 mm, Depth: 54 mm, Height: 20.5 mm. Package width: 133 mm, Package depth: 105 mm, Package height: 24 mm
Featuring Digital Coaxial and Toslink ports as both input and output connections, this converter is perfect for converting Coaxial signals to optical, great for connecting DVD players or legacy games consoles to home cinema receivers or soundbars, or when connecting Blu-Ray players and games consoles to some surround sound systems or amplifiers via Optical to Coaxial conversion. With support for a hi-res sampling frequency of up to 24 bit / 192kHz, music can be heard exactly how the artist and sound engineers intended, with greater detail and clarity, while Dolby Digital and DTS 5.1 channel support also ensures movies are heard with dynamic multi-channel audio, for a true home cinema experience.
The dual input functionality also doubles up as a repeater, great for extending digital audio signals over longer distances that can't be reached using only one digital coaxial or Toslink cable. The converters input selector switch, allowing the input signal to be easily changed provides simple control for both home users and professional installers, while the converter's's 'Plug and Play' functionality ensures minimum hassle connectivity within an audio ecosystem. The converters minimalist, compact design means it can also be hidden out of sight or integrated into current home cinema installations.
Lindy 2-way Digital SPDIF (Coaxial Toslink) Audio Converter. Sample frequencies: 192kHz. Operating voltage: 5 V. Width: 60.5 mm, Depth: 54 mm, Height: 20.5 mm. Package width: 133 mm, Package depth: 105 mm, Package height: 24 mm
| Inputs | |
| Sample frequencies | 192kHz |
| Outputs | |
| Digital audio optical out | 1 |
| Technical details | |
| Chipset | MIC-74HC04 |
| Output impedance | 75 Ω |
| Bit rate | 24 bit |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, UKCA |
| Sustainability compliance | Yes |
| Power | |
| Operating voltage | 5 V |
| Weight & dimensions | |
| Width | 60.5 mm |
| Depth | 54 mm |
| Height | 20.5 mm |
| Weight | 40 g |
70457
103 Items
Data sheet
- Product colour
- Black
- Housing material
- Plastic
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -20 - 60 °C
- Width
- 60.5 mm
- Depth
- 54 mm
- Height
- 20.5 mm
- Weight
- 40 g
- Package width
- 133 mm
- Package depth
- 105 mm
- Package weight
- 80 g
- Manual
- Yes
- Operating relative humidity (H-H)
- 20 - 90%
- Package height
- 24 mm
- Quantity
- 1
- Compliance certificates
- CE, Federal Communications Commission (FCC), RoHS, UKCA
- Sustainability compliance
- Yes
- Chipset
- MIC-74HC04
- Digital audio optical in
- 1
- Digital audio coaxial in
- 1
- Sample frequencies
- 192kHz
- Operating voltage
- 5 V
- Digital audio optical out
- 1
- Digital audio coaxial out
- 1
- Output impedance
- 75 Ω
- Signal-to-Noise Ratio (SNR)
- 142 dB
- Input impedance
- 75 Ω
- Audio recording formats
- LPCM
- Bit rate
- 24 bit
Specific References
- EAN13
- 4002888704571
- MPN
- 70457
