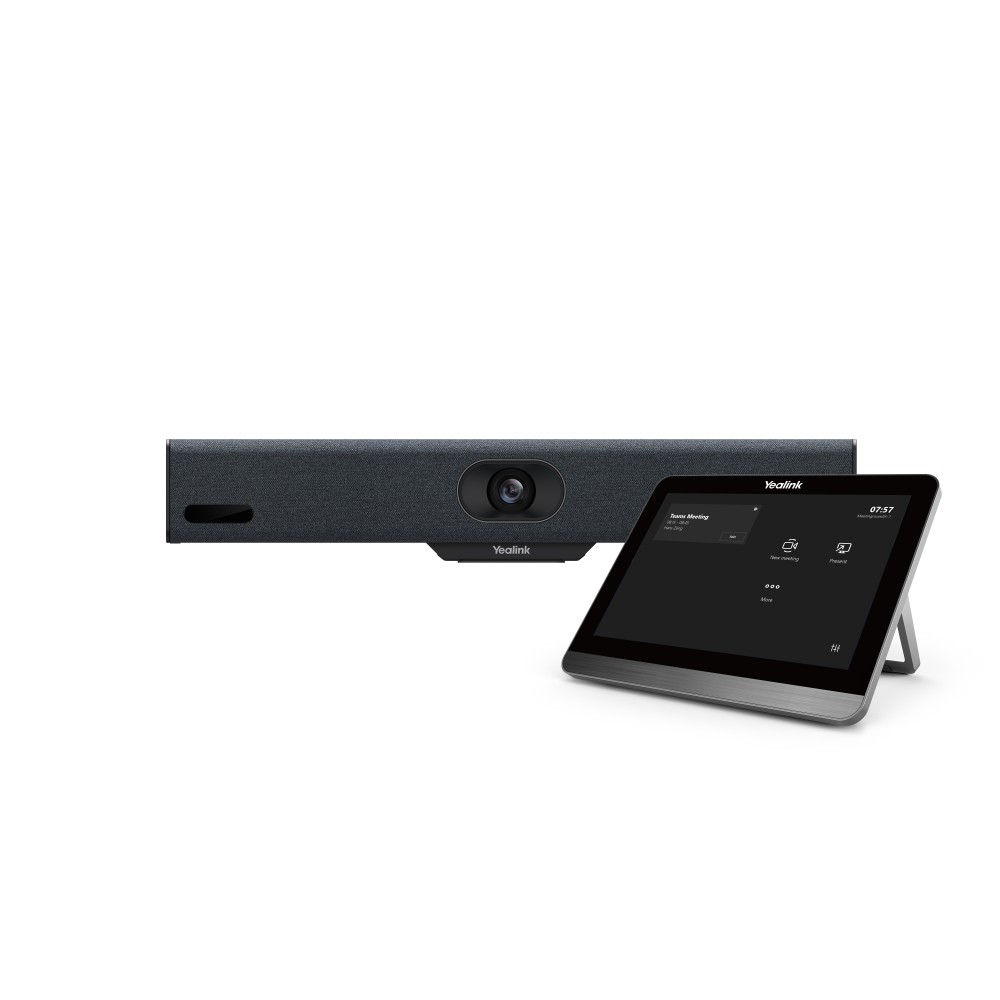

Yealink MeetingBar A10-020 All-in-one Video Bar for Teams, Zoom, BYOD
- Built-in 4k camera with 120° field of view
- AI-powered video features: Auto Framing, Speaker Tracking and Smart Gallary (Zoom supported)
- Built-in 8-MEMS beamforming microphones, full-duplex audio
- AI-enhanced noise cancellation and reverberation suppression
- Intuitive meeting control on the touch panel
Secure Payments
Secure payment methods
Shipping Policy
Free Delivery On Standard UK Mainland Orders **Over £500
Returns Policy
Returns and exchanges
Yealink MeetingBar A10 is an all-ine-one video bar deisgned for small space (1-7 people) and home office. The built-in 4k camera with 120° field of view catches details precisely, with great color. AI-powered features including Auto Framing, Speaker Tracking and Smart Gallary deliver a focused view without distraction. The built-in 8-MEMS beamforming microphones pick up voice from all directions, and a full-duplex audio algorithm with AI-enhanced noise cancellation delivers clear sound for both sides clearly even if you are talking at the same time.
Yealink MeetingBar A10-020. Product type: Video collaboration bar. HD type: 4K Ultra HD, Maximum frame rate: 30 fps. Ethernet LAN, Wi-Fi. Bluetooth. Display diagonal: 20.3 cm (8"), Display resolution: 1280 x 800 pixels. Operating system installed: Android 10. Product colour: Black, Grey
| Performance | |
| Product type | Video collaboration bar |
| Number of cameras | 1 |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Product colour | Black, Grey |
| Auto framing | Yes |
| Auto-tracking | Yes |
| Tracking modes | Presenter mode |
| Meeting features | Add participates, Calendar, Content sharing, Hold/Resume, One-click join |
| Wall mountable | Yes |
| PTZ control | Yes |
| Video | |
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 30 fps |
| Video codecs | H.264 High profile, H.264 SVC, H.264 |
| Audio | |
| Built-in speaker(s) | Yes |
| Audio system full duplex | Yes |
| Echo cancellation | Yes |
| Speaker power | 5 W |
| Ports & interfaces | |
| HDMI output ports quantity | 1 |
| USB connector type | USB Type-A, USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Line-out | Yes |
| Reset slot | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Wi-Fi | Yes |
| Security algorithms | 256-bit AES, EAP-TLS, MSCHAPv2, PEAP, TLS |
| Camera | |
| Camera type | Single camera |
| Horizontal field of view | 105° |
| Diagonal field of view | 120° |
| Auto Focus (AF) object detection | People |
| Remote control interface | Ethernet |
| Camera privacy shutter | Yes |
| Display | |
| Display diagonal | 20.3 cm (8") |
| Display resolution | 1280 x 800 pixels |
| Touchscreen | Yes |
| Microphone | |
| Microphone sensitivity | 88 dB |
| Microphone mute | Yes |
| Number of microphone arrays | 8 |
| Operational conditions | |
| Storage temperature (T-T) | -30 - 70 °C |
| Power | |
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| DC output voltage | 48 V |
| DC output current | 0.7 A |
| Power consumption (idle) | 10 W |
| Certificates | |
| Certification | CE, FCC, RoHS, REACH, ISO 9001, CCC, NOM |
| Weight & dimensions | |
| Width | 380 mm |
| Depth | 68 mm |
| Height | 82 mm |
| Weight | 3.59 kg |
| Packaging data | |
| Package width | 165 mm |
| Package depth | 150 mm |
| Package height | 447 mm |
| Package weight | 4.27 kg |
| Packaging content | |
| Cables included | HDMI, LAN (RJ-45) |
| Networking cable length | 3 m |
| HDMI cable length | 1.8 m |
| AC adapter included | Yes |
| Quick start guide | Yes |
A10-020
9 Items
Data sheet
- Product colour
- Black, Grey
- HD type
- 4K Ultra HD
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 1
- Product type
- Video collaboration bar
- Maximum video resolution
- 3840 x 2160 pixels
- Microphone in
- Yes
- Ethernet LAN
- Yes
- Certification
- CE, FCC, RoHS, REACH, ISO 9001, CCC, NOM
- Operating temperature (T-T)
- 0 - 40 °C
- Storage temperature (T-T)
- -30 - 70 °C
- Width
- 380 mm
- Depth
- 68 mm
- Height
- 82 mm
- Weight
- 3.59 kg
- Package width
- 165 mm
- Package depth
- 150 mm
- Package weight
- 4.27 kg
- Ethernet LAN data rates
- 10,1000,100 Mbit/s
- Ethernet LAN (RJ-45) ports
- 1
- Operating relative humidity (H-H)
- 10 - 95%
- Package height
- 447 mm
- Microphone sensitivity
- 88 dB
- AC adapter included
- Yes
- Quick start guide
- Yes
- Power consumption (typical)
- 10.5 W
- Wi-Fi
- Yes
- Cables included
- HDMI, LAN (RJ-45)
- USB connector type
- USB Type-A, USB Type-C
- Power source type
- AC
- AC input voltage
- 100 - 240 V
- Country of origin
- China
- DC-in jack
- Yes
- HDMI output ports quantity
- 1
- Power consumption (max)
- 14 W
- Wall mountable
- Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
- 1
- Maximum frame rate
- 30 fps
- Mobile operating systems supported
- Android 11.0
- Microphone mute
- Yes
- Display diagonal
- 20.3 cm (8")
- Display resolution
- 1280 x 800 pixels
- Operating system installed
- Android 10
- Bluetooth
- Yes
- Bluetooth version
- 4.2
- Touchscreen
- Yes
- Built-in speaker(s)
- Yes
- Line-in
- Yes
- Line-out
- Yes
- PTZ control
- Yes
- Camera type
- Single camera
- Diagonal field of view
- 120°
- Security algorithms
- 256-bit AES, EAP-TLS, MSCHAPv2, PEAP, TLS
- Number of cameras
- 1
- Cable lock slot
- Yes
- Echo cancellation
- Yes
- Audio system full duplex
- Yes
- Number of microphone arrays
- 8
- Speaker power
- 5 W
- Auto framing
- Yes
- Reset slot
- Yes
- Horizontal field of view
- 105°
- Auto-tracking
- Yes
- Tracking modes
- Presenter mode
- Meeting features
- Add participates, Calendar, Content sharing, Hold/Resume, One-click join
- Video codecs
- H.264 High profile, H.264 SVC, H.264
- Auto Focus (AF) object detection
- People
- Remote control interface
- Ethernet
- Camera privacy shutter
- Yes
- Motion sensor
- Yes
- DC output voltage
- 48 V
- DC output current
- 0.7 A
- Power consumption (idle)
- 10 W
- Networking cable length
- 3 m
- HDMI cable length
- 1.8 m
Specific References
- UPC
- 841885118608
- EAN13
- 0841885118608
- MPN
- 1203684
