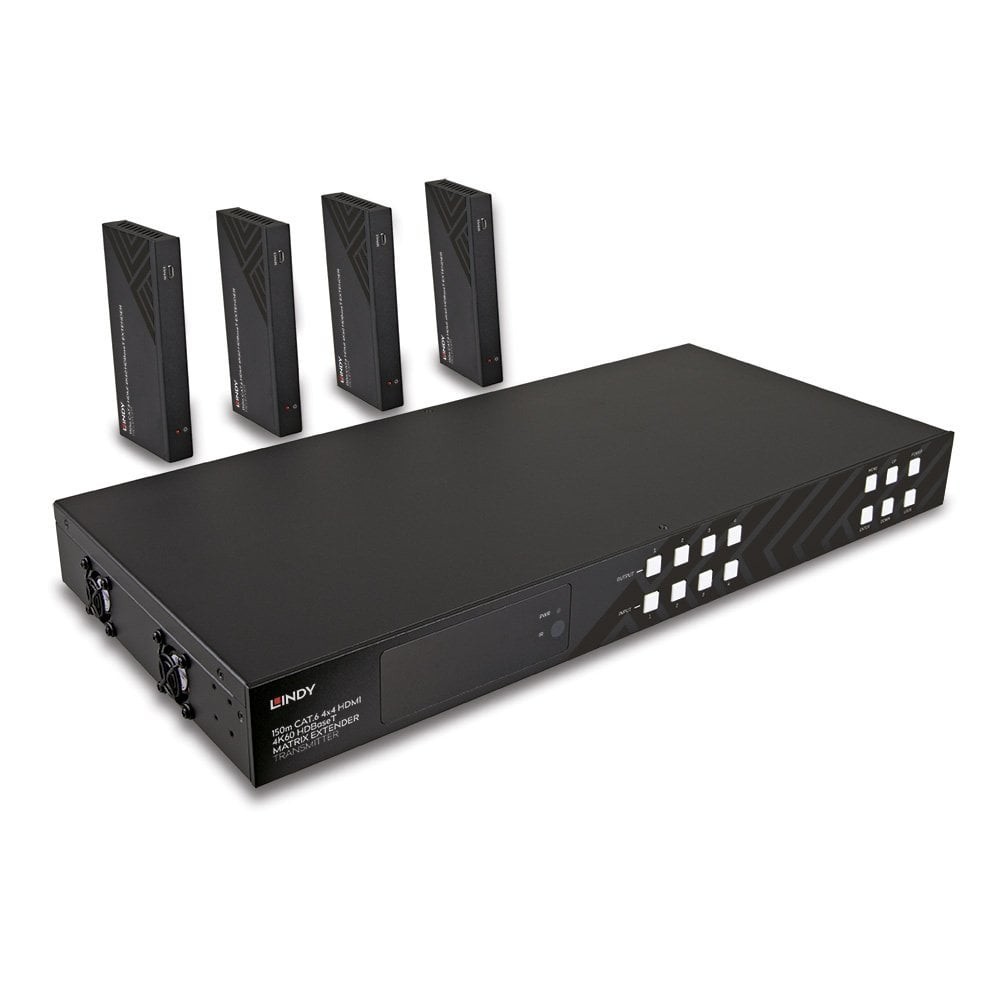

The Lindy 150m Cat.6 4x4 HDMI 4K60 HDBaseT Matrix Extender is an high-end and complete solution to switch and extend 4 HDMI signals to 4 HDBaseT receivers using Cat.6 or above cables up to 150m.

Supporting resolutions up to 4K60Hz including HDR and 1080p, the Matrix Extender is designed for use in Pro AV and digital signage applications for a variety of settings such as education, retail, immersive displays at events and conference rooms.

It supports several signals and features such as analog and coax de-embedded audio, IR matrix function and RS-232 control or pass-through signals. An advanced EDID management allow the user to select different EDID modes while the integrated HDMI loop-out ports enables simultaneous viewing so that a local display can be connected for monitoring each HDBaseT output, or to create additional viewing zones.

PoC (Power over Cable) functionality allows power to be supplied alongside data through Cat.6 network cable between the transmitter and any HDBaseT receiver, meaning only the transmitter unit needs to be powered on.

This unit can be managed by pushing the buttons on the front panel via OSD menu with a OLED screen, IR remote control (included), RS-232 or TCP/IP commands and web GUI.

Lindy 150m Cat.6 4x4 HDMI 4K60 HDBaseT Matrix Extender. Type: AV transmitter & receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat6. Connectivity technology: Wired. Power source type: AC, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Width: 440 mm, Depth: 200 mm, Height: 45 mm. Package width: 510 mm, Package depth: 401 mm, Package height: 98 mm

Features
Type	AV transmitter & receiver
Maximum resolution	3840 x 2160 pixels
Cable types supported	Cat6
Maximum transfer distance	150 m
High Dynamic Range (HDR) supported	Yes
EDID management	Yes
HDCP pass-through	Yes
Infrared (IR) frequency range	20 - 60 kHz
HDCP version	2.2
Product colour	Black
Certification	California Proposition 65
Ports & interfaces
Connectivity technology	Wired
RJ-45 output ports	4
HDBaseT port	Yes
HDMI version	2.0
RS-232 input ports	2
Digital audio coaxial out	4
Audio RCA outputs	4
Power
Power source type	AC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power requirements	60 W
Operational conditions
Operating relative humidity (H-H)	20 - 90%
Weight & dimensions
Width	440 mm
Depth	200 mm
Height	45 mm
Weight	5.31 kg
Receiver dimensions (WxDxH)	140 x 65 x 18 mm
Packaging data
Package width	510 mm
Package depth	401 mm
Package height	98 mm
Package weight	6.33 kg
Package type	Box
Packaging content
Manual	Yes
Packaging content	4x4 HDBaseT Extender Matrix - Transmitter 4 x HDBaseT Receivers 5 x IR Emitter Cable, 1.5m 5 x IR Receiver Cable, 1.5m 10 x Mounting Ears & Screws 4 x 3-Pin Terminal Block 4 x 5-Pin Terminal Block RS-232 Male to Female cable, 1.5m 4 x mains cables (EU, UK, US & AUS), 1.5m Lindy Manual
