Lindy’s range of Fibre Optic Hybrid cables are a professional solution for extending DP signals over longer distances.

Combining the flexibility and high EMI & RFI resistance of fibre optic cable with standard copper cabling, these hybrid cables are ideal for use in critical AV setups, commercial displays or high-performance residential installations.

The internal technology provides uncompressed amplification of the DP signal, allowing long distance extension of DP 8K content that is simply not possible with passive cables.

With 40Gbps bandwidth (UHBR10), these cables support DisplayPort 2.0 resolutions up to 3840x2160@144Hz, and 7680x4320 / 10240x4320@60Hz. Content can be viewed with incredible detail and clarity at higher refresh rates and supporting static and dynamic HDR for optimum viewing of movies, graphics or imagery.

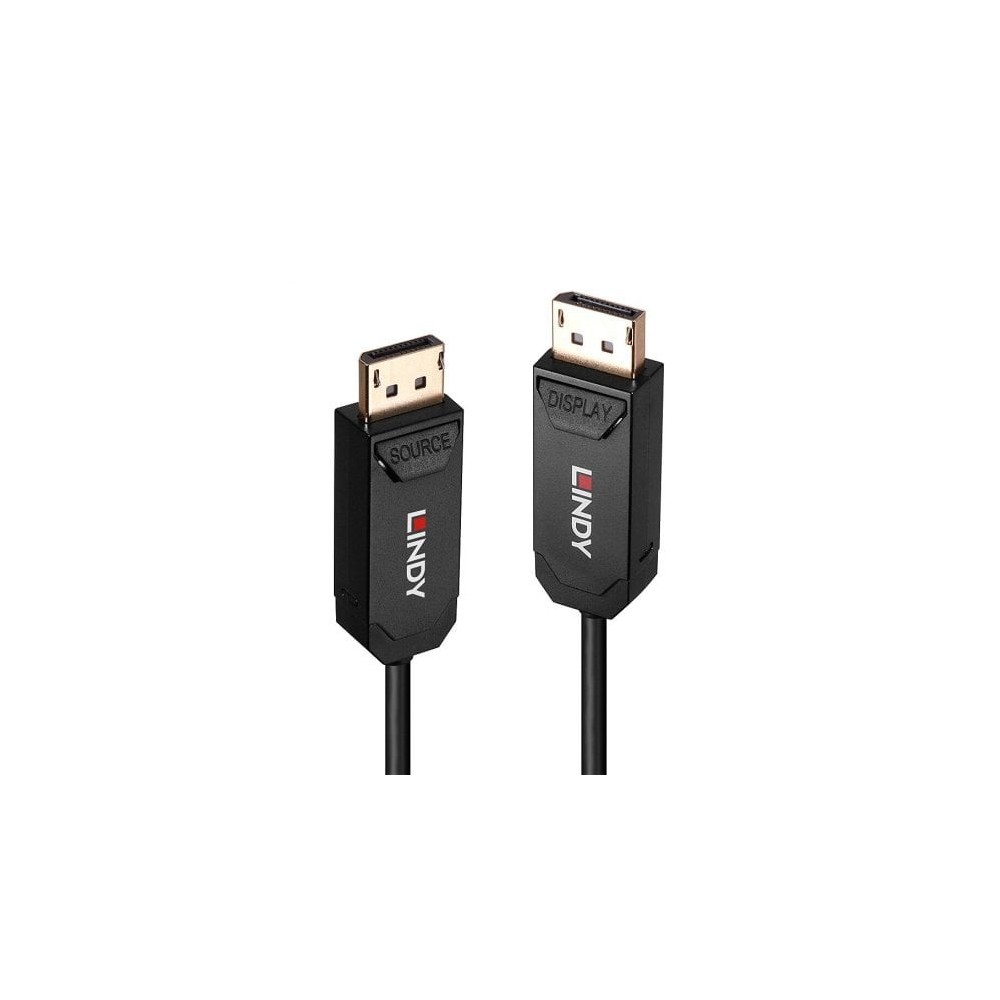

Lindy 38522. Cable length: 20 m, Connector 1: DisplayPort, Connector 2: DisplayPort. Compliance certificates: CE, REACH, RoHS, UKCA. Cable diameter: 4 mm, Bend radius (min): 5 cm

Features
Cable length	20 m
Connector 1	DisplayPort
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Male
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Gold
DisplayPort version	2.0
Maximum resolution	7680 x 4320 pixels
Supported graphics resolutions	3840 x 2160, 7680 x 4320
Maximum refresh rate	60 Hz
Connector 1 lockable	No
Connector 2 lockable	No
Product colour	Black
Jacket material	Polyvinyl chloride (PVC)
AWG wire size	24
Data transfer rate	40 Gbit/s
Connector material	Gold
Cable type	Round cable
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-20 - 70 °C
Certificates
Compliance certificates	CE, REACH, RoHS, UKCA
Sustainability
Sustainability compliance	Yes
Weight & dimensions
Cable diameter	4 mm
Bend radius (min)	5 cm
