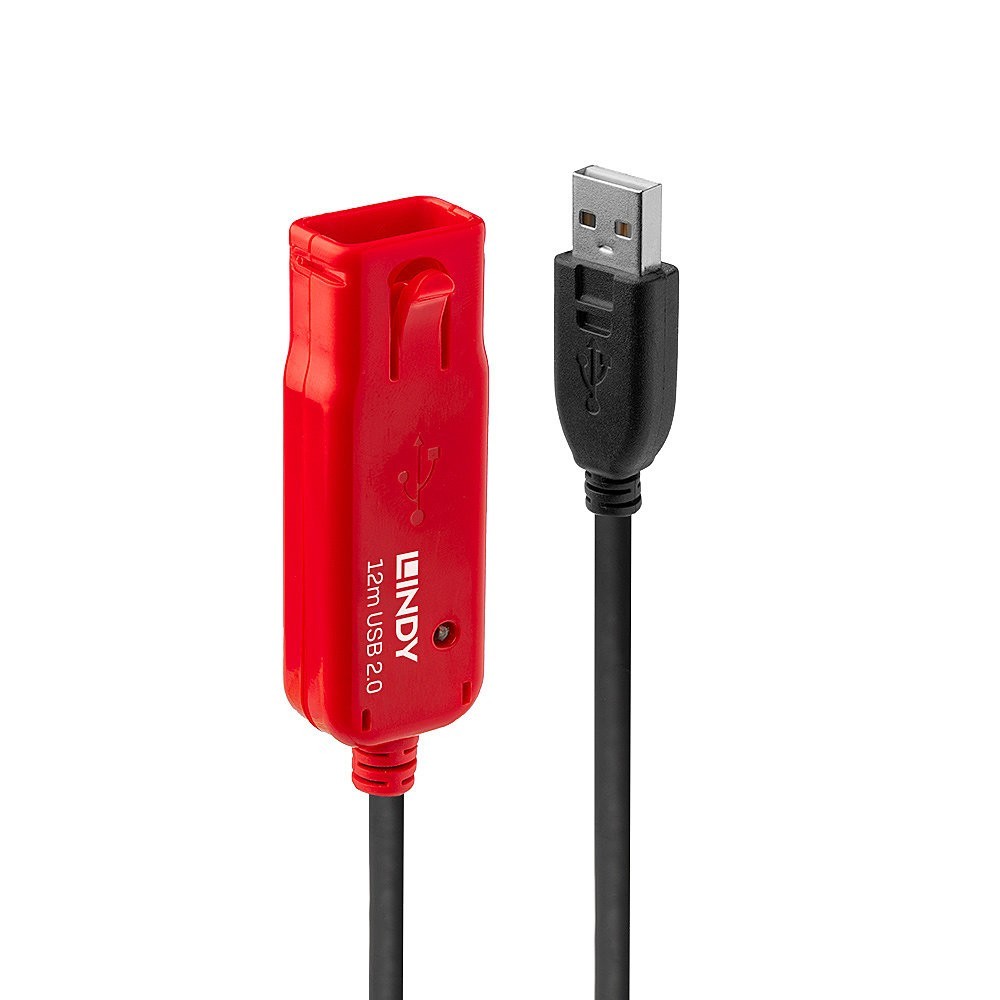

Lindy 12m USB 2.0 Active Extension Pro

  • High performance, active cable that provides an extended 12m connection between a computer and USB 2.0 device
  • Can be used standalone or as part of the Lindy Active Extension System Pro to create bespoke extension systems of up to 60m
  • Supports USB 2.0 High Speed bandwidth for speeds of 480Mbps
  • USB Type A Male to A Female – connects to the device's existing USB cable (2m maximum)
  • 2 Year Warranty
Lindy
42782
194 Items
Hurry up! only 194 items left in stock!
£43.43
In Stock

  Secure Payments

Secure payment methods

  Shipping Policy

Free Delivery On Standard UK Mainland Orders **Over £500

  Returns Policy

Returns and exchanges

The Lindy USB Active Extension Cable Pro is a high performance active cable that allows access to USB 2.0 peripherals over long distances. With support for data transfer speeds of up to 480Mbps this extension cable is perfect for transferring data volumes quickly and reliably.

This 12m extension cable can be used standalone or as part of the Lindy USB 2.0 Active Extension System Pro. This system is a modular solution that can combine multiple USB Active Extension Pro cables and a USB 2.0 Active Extension Pro hub to distribute USB signals to up to 4 devices at up to 60m.

The 8m and 12m cable, and the 8m and 12m hub, feature a single active repeater module to boost the USB signal. The 30m cable uses two repeaters. A fully deployed extension system is limited to a maximum of 60m and 4 repeater modules. Any combination of cables and a single hub can be connected providing the 60m / 4 repeater limit is not exceeded. The extension hub must always be the last segment of the extension system.

This cable features industry-proven active technology and locking connectors to ensure full signal integrity in the most demanding environments.

Lindy 12m USB 2.0 Active Extension Pro. Cable length: 12 m. Connector 1: USB A, Connector 2: USB A, USB version: USB 2.0, Maximum data transfer rate: 0.48 Gbit/s, Connector contacts plating: Gold, Product colour: Black
Features
USB versionUSB 2.0
Connector 1USB A
Connector 2USB A
Connector 1 genderMale
Connector 2 genderFemale
Connector 1 form factorStraight
Connector 2 form factorStraight
AWG wire size26/20
Connector materialGold/Nickel
Contact materialBrass
Connector contacts platingGold
Cable jacket materialPolyvinyl chloride (PVC)
Connector shield materialAluminium
Connector housing materialPlastic
Maximum data transfer rate0.48 Gbit/s
Cable typeRound cable
Transmission mediumTwisted pair
Nominal attenuation0.064 MHz, -0.08 dB 0.256MHz, -0.11 dB 0.512MHz, -0.13 dB 0.772 MHz, -0.15 dB 1 MHz, -0.2 dB 4 MHz, -0.39 dB 8 MHz, -0.57 dB 12 MHz, -0.76 dB 24 MHz, -0.95 dB 48 MHz, -1.35dB 96 MHz, -1.9 dB 200 MHz, -3.2 dB 400 MHz, -5.8 dB
Weight & dimensions
Cable length12 m
Cable diameter5 mm
Weight420 g
Bend radius (min)2.6 cm
Connector 1 dimensions (WxDxH)15 x 43 x 8 mm
Connector 2 dimensions (WxDxH)20 x 64 x 13 mm
Packaging data
Package typeBox
Package width238 mm
Package depth202 mm
Package height66 mm
Package weight597 g
Packaging content
Quantity per pack1 pc(s)
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 60 °C
Logistics data
Harmonized System (HS) code84733080
Other features
Compatible operating systemsWin ME, 2000, XP, Vista Mac OS Linux
42782
194 Items

Data sheet

USB version
USB 2.0
Connector 1
USB A
Connector 2
USB A
Connector 1 gender
Male
Connector 2 gender
Female
Product colour
Black
Cable length
12 m
Quantity per pack
1 pc(s)
Connector contacts plating
Gold
Maximum data transfer rate
480 Mbit/s
Certification
CE, UKCA, FCC, RoHS, REACH, California Proposition 65
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Weight
420 g
Package width
238 mm
Package depth
202 mm
Package weight
597 g
Package type
Box
Harmonized System (HS) code
84733080
Package height
66 mm
AWG wire size
26/20
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Cable type
Round cable
Connector material
Gold/Nickel
Cable diameter
5 mm
Connector 1 dimensions (WxDxH)
15 x 43 x 8 mm
Cable jacket material
Polyvinyl chloride (PVC)
Conductor material
Tinned copper
Connector shield material
Aluminium
Nominal attenuation
0.064 MHz, -0.08 dB
0.256MHz, -0.11 dB
0.512MHz, -0.13 dB
0.772 MHz, -0.15 dB
1 MHz, -0.2 dB
4 MHz, -0.39 dB
8 MHz, -0.57 dB
12 MHz, -0.76 dB
24 MHz, -0.95 dB
48 MHz, -1.35dB
96 MHz, -1.9 dB
200 MHz, -3.2 dB
400 MHz, -5.8 dB
Bend radius (min)
2.6 cm
Connector 2 dimensions (WxDxH)
20 x 64 x 13 mm
Connector housing material
Plastic
Contact material
Brass
Transmission medium
Twisted pair
Compatible operating systems
Win ME, 2000, XP, Vista
Mac OS
Linux

Specific References

EAN13
4002888427821
MPN
42782
