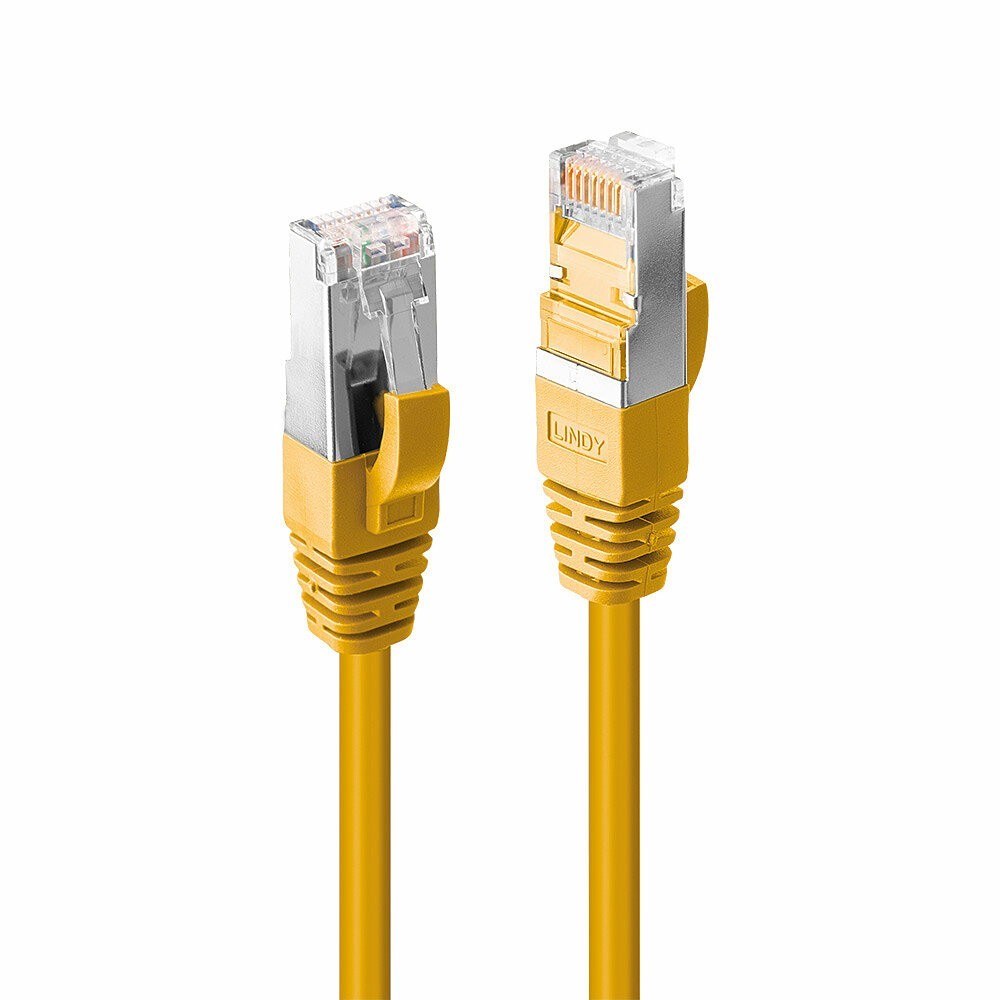

Cat.6A S/FTP network cable with support for bandwidth up to 500MHz and features a snagless design with gold plated contacts for ethernet standards up to 10 GBase-T.

Cat.6A cable, shielded with braid as overall shield and foil shield for the individual wire pairs (S/FTP). Cat.6A cables meet the requirements of 10 Gigabit Ethernet (10GBaseT) with an operating frequency of up to 500MHz. These cables are manufactured and tested according to the ISO/IEC 11801 specification. The cables are packaged individually in a polybag.

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal.

The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.





Lindy 47864. Cable length: 1.5 m, Cable standard: Cat6a, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Product colour: Yellow

Features
Cable length	1.5 m
Cable standard	Cat6a
Cable shielding	S/FTP (S-STP)
Product colour	Yellow
Connector 1	RJ-45
Connector 2	RJ-45
Connector 2 form factor	Straight
Connector contacts plating	Gold
Connector shielding	Yes
Connector shield material	Aluminium
Jacket material	Low smoke zero halogen (LSZH)
Cable shape	Round
Conductor material	Copper
Connector housing material	Polycarbonate (PC)
AWG wire size	27
Frequency	500 MHz
Bend radius (min)	7.2 cm
Operational conditions
Operating temperature (T-T)	-10 - 60 °C
Storage temperature (T-T)	-20 - 75 °C
Certificates
Compliance certificates	REACH, RoHS
Weight & dimensions
Width	11.6 mm
Depth	21.5 mm
Height	8.3 mm
Outer diameter	6 mm
Packaging data
Package type	Polybag
