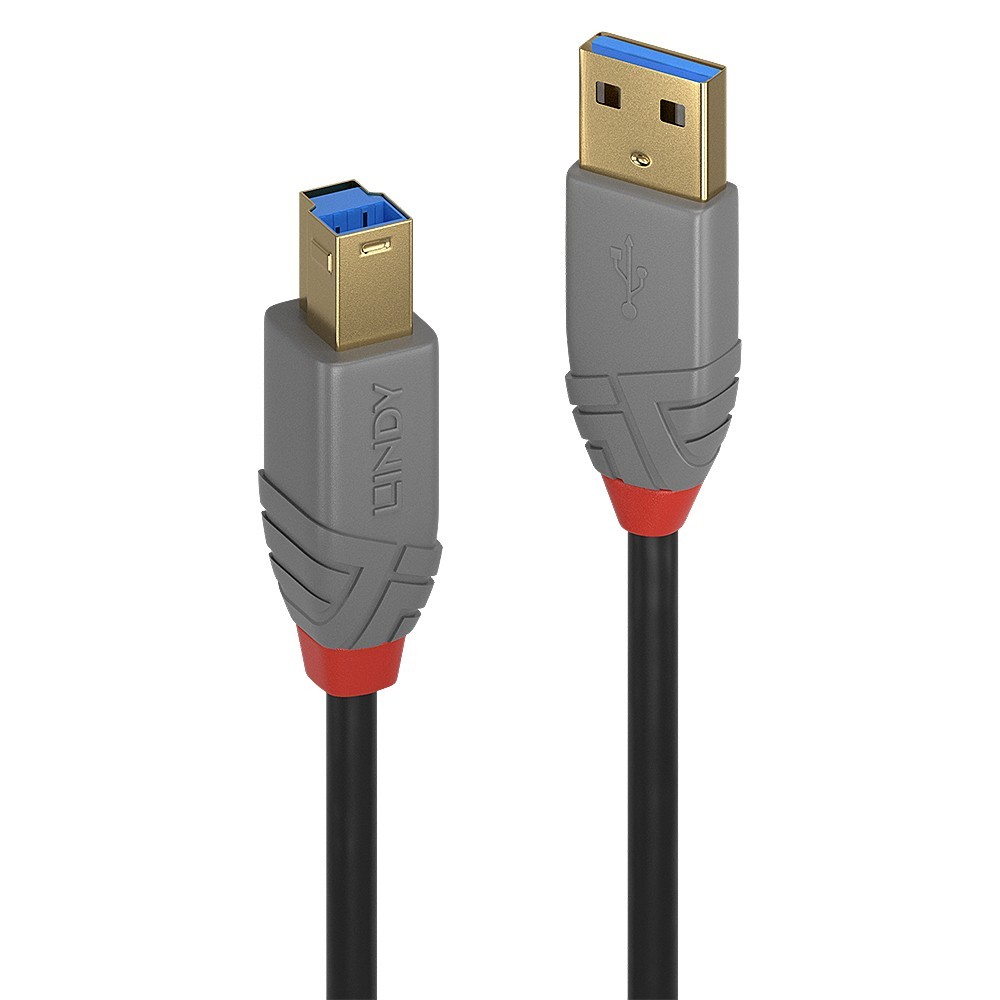

Lindy 5m USB 3.2 Type A to B Cable, 5Gbps, Anthra Line

  • Professional choice USB 3.2 Gen 1 Type A to B cable for commercial and high performance AV and IT installations
  • SuperSpeed USB - supports data transfer speeds up to 5Gbps (USB 3.0, USB 3.1 Gen 1)
  • Robust PVC housing, gold plated connectors and contacts
  • Triple shielded cable, corrosion resistant tinned copper conductors
  • 10 Year Warranty
Lindy
36744
875 Items
Hurry up! only 875 items left in stock!
£8.96
In Stock

  Secure Payments

Secure payment methods

  Shipping Policy

Free Delivery On Standard UK Mainland Orders **Over £500

  Returns Policy

Returns and exchanges

The Anthra Line USB 3.2 Type A to B cables from Lindy's Cable Lines concept are the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 3.2 cables are premium connections that feature triple shielded construction with tinned copper conductors for performance and corrosion resistance. High quality gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.

USB bandwidths up to 5Gbps are supported for rapid transfer of large data volumes.

Anthra Line USB 3.2 Type A to B cables are available in the following lengths: 0.5m, 1m, 2m, 3m and 5m.

Information about USB generations We have adapted the naming of our USB 3 cables to follow the updated USB specification. USB 3.0 and USB 3.1 Gen 1 have been renamed to USB 3.2 Gen 1, supporting data transfer up to 5Gbps USB 3.1 and USB 3.1 Gen 2 are now called USB 3.2 Gen 2, supporting data transfer rates up to 10 Gbps USB 3.2 Gen 2x2 is a new standard, supporting data transfer rates up to 20 Gbps

USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.

Lindy 5m USB 3.2 Type A to B Cable, 5Gbps, Anthra Line. Cable length: 5 m. Connector 1: USB A, Connector 2: USB B, USB version: USB 3.2 Gen 1 (3.1 Gen 1), Maximum data transfer rate: 5 Gbit/s, Connector contacts plating: Gold, Product colour: Black
Features
USB versionUSB 3.2 Gen 1 (3.1 Gen 1)
Connector 1USB A
Connector 2USB B
Connector 1 genderMale
Connector 2 genderMale
Connector 1 form factorStraight
Connector 2 form factorStraight
AWG wire size26/28
Connector materialGold
Contact materialCopper
Connector contacts platingGold
Cable jacket materialPolyvinyl chloride (PVC)
Connector shield materialAluminium
Connector housing materialPolyvinyl chloride (PVC)
Maximum data transfer rate5 Gbit/s
Cable typeRound cable
Nominal attenuation0.5-5m: 0.5MHz-7.5GHz25DB
Weight & dimensions
Cable length5 m
Cable diameter5.5 mm
Bend radius (min)4.8 cm
Connector 1 dimensions (WxDxH)12 x 4.5 x 36 mm
Connector 2 dimensions (WxDxH)6.6 x 7.3 x 34.4 mm
Packaging data
Package typePolybag
Packaging content
Quantity per pack1 pc(s)
Operational conditions
Operating temperature (T-T)0 - 60 °C
Storage temperature (T-T)0 - 60 °C
Logistics data
Harmonized System (HS) code84733080
36744
875 Items

Data sheet

USB version
USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1
USB A
Connector 2
USB B
Connector 1 gender
Male
Connector 2 gender
Male
Product colour
Black
Cable length
5 m
Quantity per pack
1 pc(s)
Connector contacts plating
Gold
Maximum data transfer rate
5000 Mbit/s
Certification
RoHS, REACH, UL
Operating temperature (T-T)
0 - 60 °C
Storage temperature (T-T)
0 - 60 °C
Package type
Polybag
Harmonized System (HS) code
84733080
AWG wire size
26/28
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Cable type
Round cable
Connector material
Gold
Cable diameter
5.5 mm
Connector 1 dimensions (WxDxH)
12 x 4.5 x 36 mm
Cable jacket material
Polyvinyl chloride (PVC)
Conductor material
Tinned copper
Connector shielding
Yes
Connector shield material
Aluminium
Nominal attenuation
0.5-5m: 0.5MHz-7.5GHz25DB
Bend radius (min)
4.8 cm
Connector 2 dimensions (WxDxH)
6.6 x 7.3 x 34.4 mm
Connector housing material
Polyvinyl chloride (PVC)
Contact material
Copper

Specific References

EAN13
4002888367448
MPN
36744
