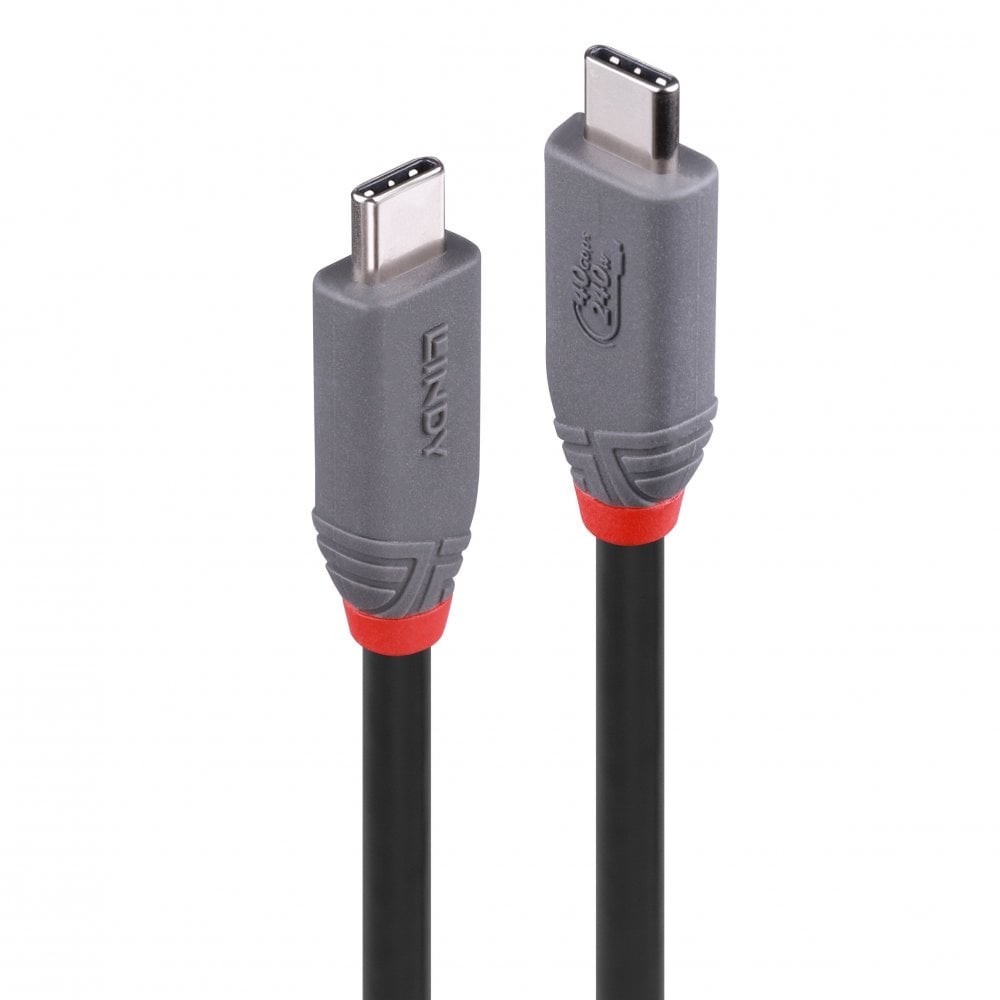

Lindy 1.5m USB 4 240W Type C Cable, Anthra Line

  • Professional choice USB 4 Gen 3x2 Type C to C cable for commercial and high performance AV and IT installations
  • Supports data transfer speeds up to 40Gbps (backwards compatible to USB 3.2 , USB 2.0 and Thunderbolt 3)
  • Supports USB Power Delivery up to 240 Watt and DisplayPort 2.0 Alternate Mode with single 8K or dual 4K@60Hz
  • Triple shielded coaxial cable, gold plated contacts and nickel plated connectors
  • 2 Year Warranty
Lindy
36957
18 Items
Hurry up! only 18 items left in stock!
£45.28
In Stock

  Secure Payments

Secure payment methods

  Shipping Policy

Free Delivery On Standard UK Mainland Orders **Over £500

  Returns Policy

Returns and exchanges

The fully-featured Anthra Line USB 4 Type C to C cable from Lindy's Cable Lines concept is the professional choice for high performance connections in commercial AV and IT installations.

Anthra Line USB 4 cables are premium connections that feature triple shielded construction with silver plated copper conductors for performance and corrosion resistance. High quality gold plated contacts and nickel plated connectors maintain optimal signal integrity and maximum reliability.

USB bandwidths up to 40Gbps are supported for rapid transfer of large data volumes. These cables are E-marked to provide 240W (48V 5A Extended Power Range) of power to devices using the most efficient power delivery profiles. It supports connecting a 8K or dual 4K UHD displays for stunning contrast and colour depth.

USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.

Lindy 1.5m USB 4 240W Type C Cable, Anthra Line. Cable length: 1.5 m. Connector 1: USB C, Connector 2: USB C, USB version: USB4 Gen 3x2, Maximum data transfer rate: 40 Gbit/s, Connector contacts plating: Gold, Product colour: Black
Features
USB versionUSB4 Gen 3x2
Connector 1USB C
Connector 2USB C
Connector 1 genderMale
Connector 2 genderMale
Connector 1 form factorStraight
Connector 2 form factorStraight
AWG wire size23/30/34
Connector materialNickel
Connector contacts platingGold
Cable jacket materialThermoplastic elastomer (TPE)
Connector shield materialCopper
Maximum data transfer rate40 Gbit/s
Cable typeRound cable
Plug and PlayYes
USB Power Delivery up to240 W
Maximum refresh rate60 Hz
Weight & dimensions
Cable length1.5 m
Cable diameter4.8 mm
Bend radius (min)2.88 cm
Connector 1 dimensions (WxDxH)30 x 12.4 x 6.5 mm
Connector 2 dimensions (WxDxH)30 x 12.4 x 6.5 mm
Packaging content
Quantity per pack1 pc(s)
Sustainability
Sustainability certificatesUL ECOLOGO
Sustainability complianceYes
Operational conditions
Operating temperature (T-T)-20 - 40 °C
Storage temperature (T-T)-40 - 80 °C
Logistics data
Warranty period2 year(s)
36957
18 Items

Data sheet

USB version
USB4 Gen 3x2
Connector 1
USB C
Connector 2
USB C
Connector 1 gender
Male
Connector 2 gender
Male
Product colour
Black
Cable length
1.5 m
Quantity per pack
1 pc(s)
Connector contacts plating
Gold
Maximum resolution
3840 x 2160 pixels
Maximum data transfer rate
40000 Mbit/s
Certification
RoHS, REACH, California Proposition 65 & UL
Operating temperature (T-T)
-20 - 40 °C
Storage temperature (T-T)
-40 - 80 °C
Compliance certificates
REACH, RoHS
AWG wire size
23/30/34
Warranty period
2 year(s)
Sustainability compliance
Yes
Connector 1 form factor
Straight
Connector 2 form factor
Straight
Plug and Play
Yes
Cable type
Round cable
USB Power Delivery (USB PD)
Yes
USB Power Delivery revision
3.1
USB Power Delivery up to
240 W
Connector material
Nickel
Sustainability certificates
UL ECOLOGO
Cable diameter
4.8 mm
Connector 1 dimensions (WxDxH)
30 x 12.4 x 6.5 mm
Cable jacket material
Thermoplastic elastomer (TPE)
Conductor material
Copper
Connector shielding
Yes
Connector shield material
Copper
Bend radius (min)
2.88 cm
Connector 2 dimensions (WxDxH)
30 x 12.4 x 6.5 mm
Maximum refresh rate
60 Hz
UN number
`

Specific References

EAN13
4002888369572
MPN
36957
