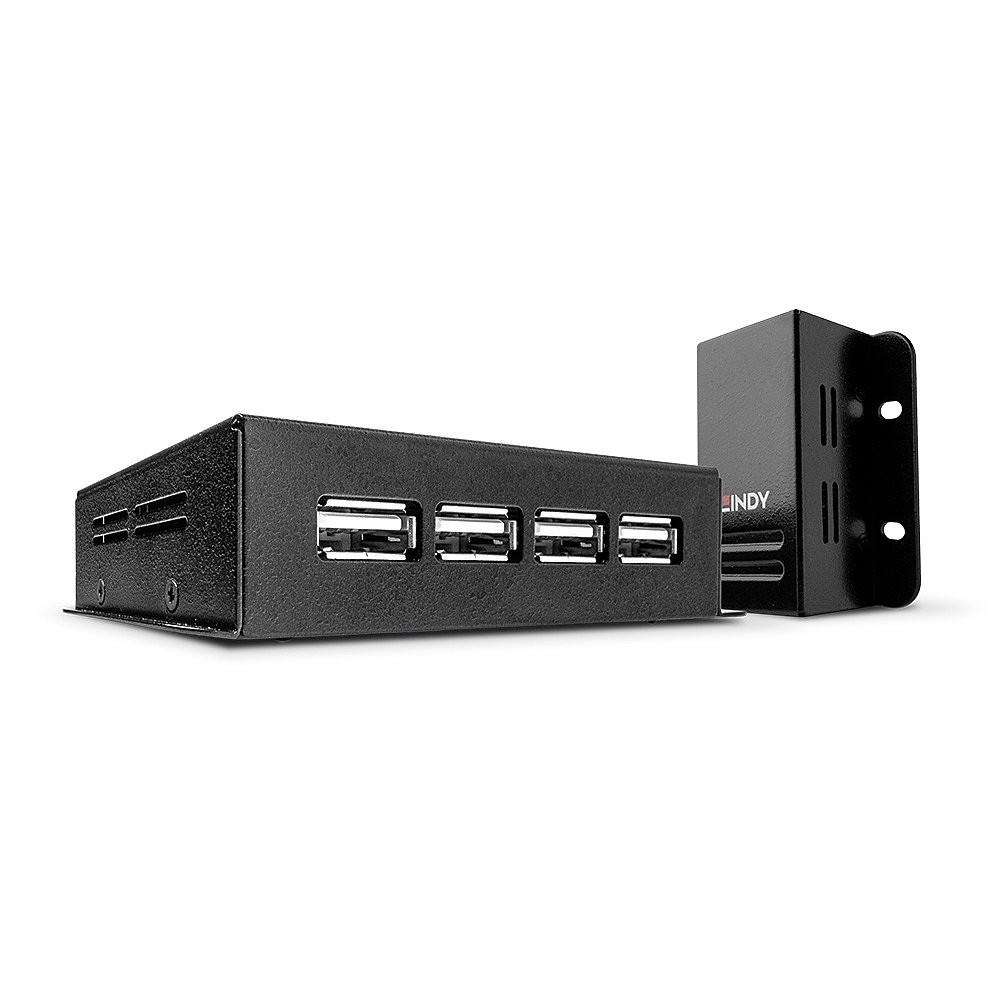

Lindy 50m 4 Port USB 2.0 Cat.6 Extender
- Extend 4 USB 2.0 ports up to 50m using low cost Cat. 5e/6 network cable (not included)
- Power over Cable requires a single power supply to be connected to the transmitter only
- Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
- Plug and Play installation
- 2 Year Warranty
Secure payment methods
Free Delivery On Standard UK Mainland Orders **Over £500
Returns and exchanges
A standard, low cost Cat.5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.
The Extender features Power over Cable, which requires a single power supply only to be connected to the transmitter unit. This handy feature allows the receiver unit and connected devices to be located more freely as no power supply is required. With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
Lindy 50m 4 Port USB 2.0 Cat.6 Extender. Type: Network transmitter & receiver, Maximum transfer distance: 50 m, Data transfer rate: 480 Mbit/s. Contact material: Phosphor bronze, Connector contacts plating: Gold, Connector material: Gold. Product colour: Black, Housing material: Metal, Certification: CE, UKCA, FCC, RoHS, REACH. Output voltage: 24 V, Output current: 0.5 A, Power note: 3.5/1.35mm DC. Weight: 415 g, Transmitter width: 6 cm, Transmitter depth: 6.7 cm
Performance | |
Type | Network transmitter & receiver |
Maximum transfer distance | 50 m |
Data transfer rate | 480 Mbit/s |
Cable types supported | Cat5, Cat5e, Cat6 |
Chipset (transmitter) | NS1021 |
Plug and Play | Yes |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 2 |
RJ-45 ports quantity (transmitter) | 1 |
RJ-45 ports quantity (receiver) | 1 |
USB 2.0 ports quantity | 5 |
Connector material | Gold |
Design | |
Product colour | Black |
Housing material | Metal |
LED indicators | Yes |
Certification | CE, UKCA, FCC, RoHS, REACH |
Power | |
External power adapter | Yes |
Output voltage | 24 V |
Output current | 0.5 A |
Power over Ethernet (PoE) | Yes |
Power note | 3.5/1.35mm DC |
Included power plug types | AU, EU, UK, US |
Operational conditions | |
Operating temperature (T-T) | 0 - 70 °C |
Storage temperature (T-T) | -20 - 80 °C |
Operating relative humidity (H-H) | 0 - 90% |
Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions | |
Weight | 415 g |
Transmitter width | 6 cm |
Transmitter depth | 6.7 cm |
Transmitter height | 2.3 cm |
Receiver width | 11 cm |
Receiver depth | 6.4 cm |
Receiver height | 2.3 cm |
Packaging content | |
Manual | Yes |
Packaging data | |
Package type | Box |
Package width | 215 mm |
Package depth | 155 mm |
Package volume | 600 cm³ |
Logistics data | |
Harmonized System (HS) code | 85176990 |
Data sheet
- Product colour
- Black
- Connector contacts plating
- Gold
- Data transfer rate
- 480 Mbit/s
- USB 2.0 ports quantity
- 5
- Type
- Network transmitter & receiver
- Maximum transfer distance
- 50 m
- Housing material
- Metal
- Certification
- CE, UKCA, FCC, RoHS, REACH
- Operating temperature (T-T)
- 0 - 70 °C
- Storage temperature (T-T)
- -20 - 80 °C
- Weight
- 415 g
- Package width
- 215 mm
- Package depth
- 155 mm
- Package type
- Box
- Harmonized System (HS) code
- 85176990
- LED indicators
- Yes
- Manual
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Output voltage
- 24 V
- Output current
- 0.5 A
- Operating relative humidity (H-H)
- 0 - 90%
- Package height
- 50 mm
- Cable types supported
- Cat5, Cat5e, Cat6
- Power over Ethernet (PoE)
- Yes
- Cables included
- USB Type-A to USB Type-B
- Plug and Play
- Yes
- Storage relative humidity (H-H)
- 0 - 90%
- External power adapter
- Yes
- Connector material
- Gold
- Included power plug types
- AU, EU, UK, US
- DC-in jack
- Yes
- RJ-45 ports quantity (transmitter)
- 1
- RJ-45 ports quantity (receiver)
- 1
- Transmitter width
- 6 cm
- Transmitter depth
- 6.7 cm
- Transmitter height
- 2.3 cm
- Receiver width
- 11 cm
- Receiver depth
- 6.4 cm
- Receiver height
- 2.3 cm
- Contact material
- Phosphor bronze
- Power note
- 3.5/1.35mm DC
- Package volume
- 600 cm³
- Chipset (transmitter)
- NS1021
