The DST-Mini Plus with VGA is a compact, multifunctional solution for hybrid workers. Housed in a robust aluminium with a high-quality braided USB-C cable, this dock has been designed for durability during travel. With support for HDMI and VGA, it is ideal for those who have an older legacy monitor they wish to plug their device into.

Extended Displays

This docking station can support a 4k extended display at 30Hz or 1080p Full HD 60Hz via its HDMI port. It does this through a single USB-C connection using DisplayPort Alternate Mode. Alternatively, you can access crisp 1080p Full HD via the legacy VGA connection. If both video outputs are connected, 1080p Full HD is possible with the displays showing mirroring content

Added Connectivity

Providing three SuperSpeed USB Type A ports (5Gbps), Card Readers (SD and microSD), USB-C PD, Gigabit Ethernet, VGA and HDMI, the DST-Mini Plus unlocks a world of connectivity for your device. With a single USB-C connection, you can connect USB accessories such as keyboard and mice as well as expand your storage and take advantage of a lightening quick wired Ethernet connection.

Pass-through Charging

Thanks to the USB-C Power Delivery, by connecting a USB-C charger to the docking station you can expect up to 100W charging to any connected laptop (depending on the USB-C charger and how much power the dock is using). Simply connect one USB-C cable and be confident that all your connected device will be fully charged and ready to go.

Plug-and-Play

This docking station does not require any driver installation. This allows for seamless large-scale implementation and a hassle-free experience.

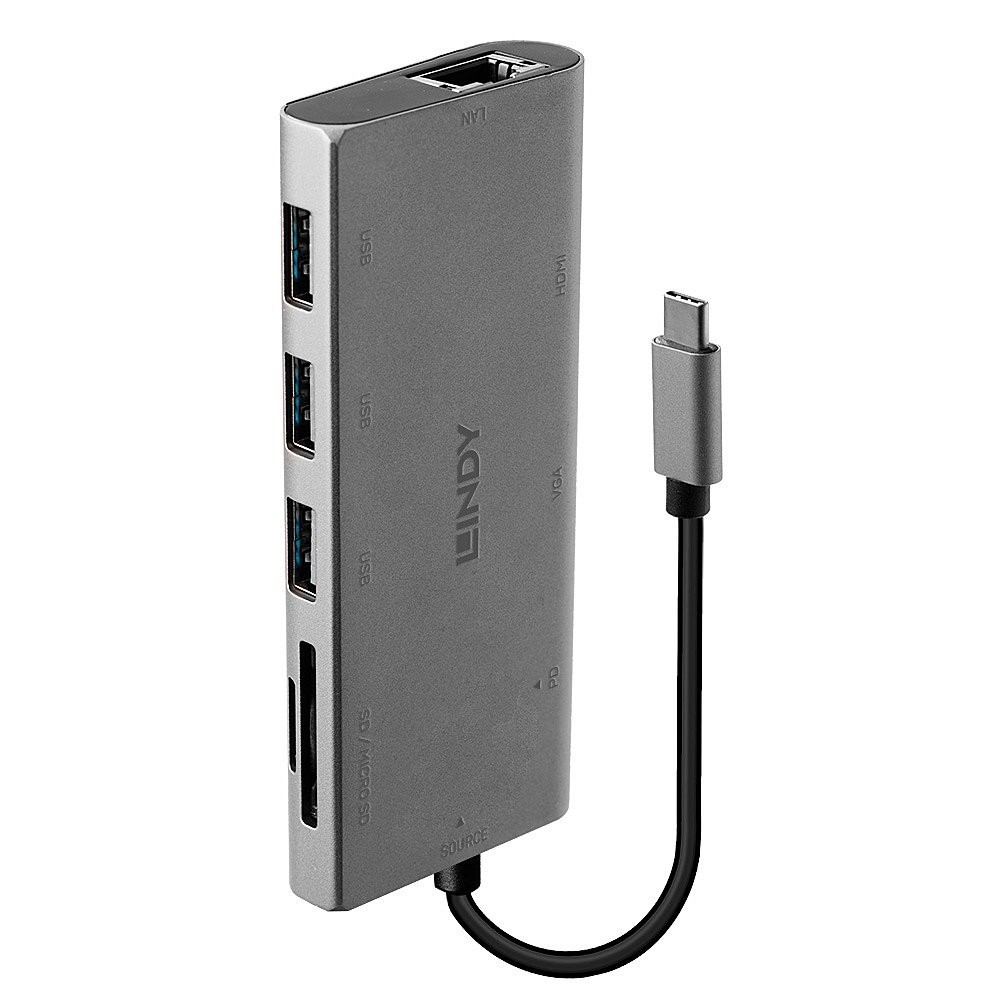

Lindy DST-Mini Plus, USB-C Laptop Mini Docking Station with 4K HDMI, VGA Support and 100W Pass-Through Charging. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Compatible memory cards: MicroSD (TransFlash), SD, Hub interfaces: HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, VGA. Power supply type: USB. Width: 180 mm, Depth: 17 mm, Height: 49 mm

Ports & interfaces
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
USB Type-C DisplayPort Alternate Mode	Yes
Network
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Performance
Product colour	Grey
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), SD
Hub interfaces	HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, VGA
Housing material	Aluminium
Certification	CE, UKCA, FCC, REACH, RoHS, CP65
Power
Power supply type	USB
Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	20 - 80%
Weight & dimensions
Width	180 mm
Depth	17 mm
Height	49 mm
Weight	90 g
Packaging data
Quantity per pack	1 pc(s)
Package width	174 mm
Package depth	194 mm
Package weight	100 g
Packaging content
Manual	Yes
Logistics data
Harmonized System (HS) code	84719000
Other features
Maximum operating temperature	45 °C
